Associated Electrics RC10B6.2D KIT - Bag 6 - Step 4; Bag 6 - Step 5; Bag 6 - Step 6

12
:: :: Bag 6 - Step 6Bag 6 - Step 6
:: :: Bag 6 - Step 5Bag 6 - Step 5
:: :: Bag 6 - Step 4Bag 6 - Step 4

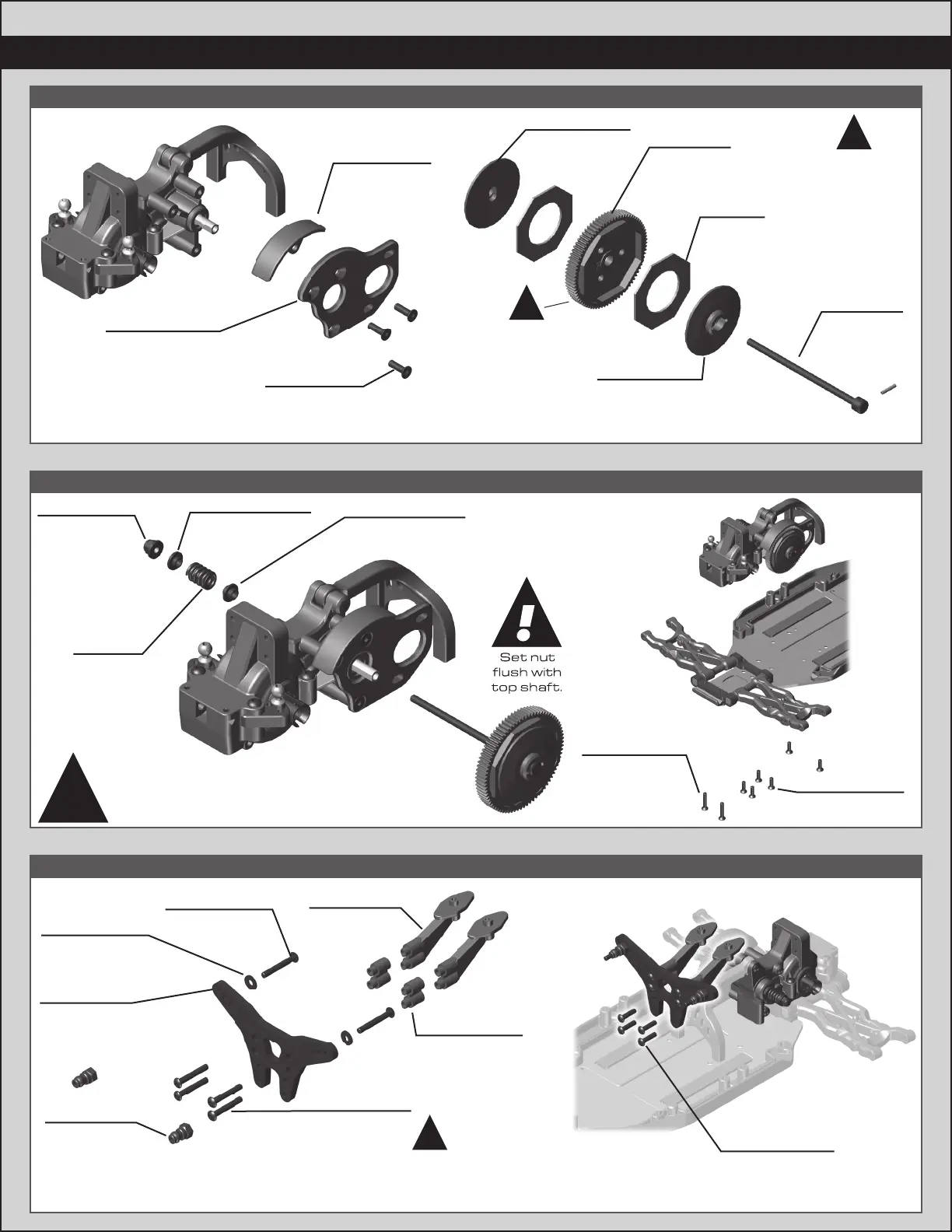

25189
M3 x 22mm
BHCS
x2x2
x2x2
x2x2
91718
Rear Wing
Mount
91718
Rear Wing
Mount Spacer
25188
M3 x 20mm
BHCS
89218
M3 x 8mm
Washer
91816
Shock
Bushing,
12mm
91769
Rear Shock
Tower, B6.1
x4x4
x2x2
x2x2
#91718 Rear Wing Mount Spacers can be used as a
tuninig option to help improve rear traction by moving the rear
wing farther back. If you do not use #91718, use #89202
3x12mm BHCS instead of #25188 3x20mm BHCS.
!
Set nut
flush with
top shaft.
!
Set nut
flush with
top shaft.
!
89202
M3 x 12mm
BHCS
x4x4
See page 20 for gear
mesh, and slipper clutch
setting instructions!
!
91801
Slipper Spring
Adapter, Inner
91801
Slipper Spring
Adapter, Inner
91801
Slipper
Spring
25612
M3 Locknut,
Flanged
25202
M3 x 10mm
FHCS
x6x6
25204
M3 x 16mm
FHCS
x2x2
91811
B6.1 Spur
Gear, 78T
91799
B6.1 Top
Shaft Screw
and Pin
x2x2
9611
Slipper
Pad, V2
91803
B6.1 Slipper
Hub, Inner
91805
B6.1 HTC
Slipper Hub,
Outer
!
#91811 spur gear
walls should point
away from gear box.
There’s also a
72T, 48P spur
gear (#91809)
included for
stock motor use!
!
25202
3 x 10mm
FHCS
91813
B6.1 Gear
Guard
91795
B6.1 Laydown
Motor Mount
x3x3
