Associated Electrics RC10T - Rear End Assembly

Fig.
80
0
Fig.
81

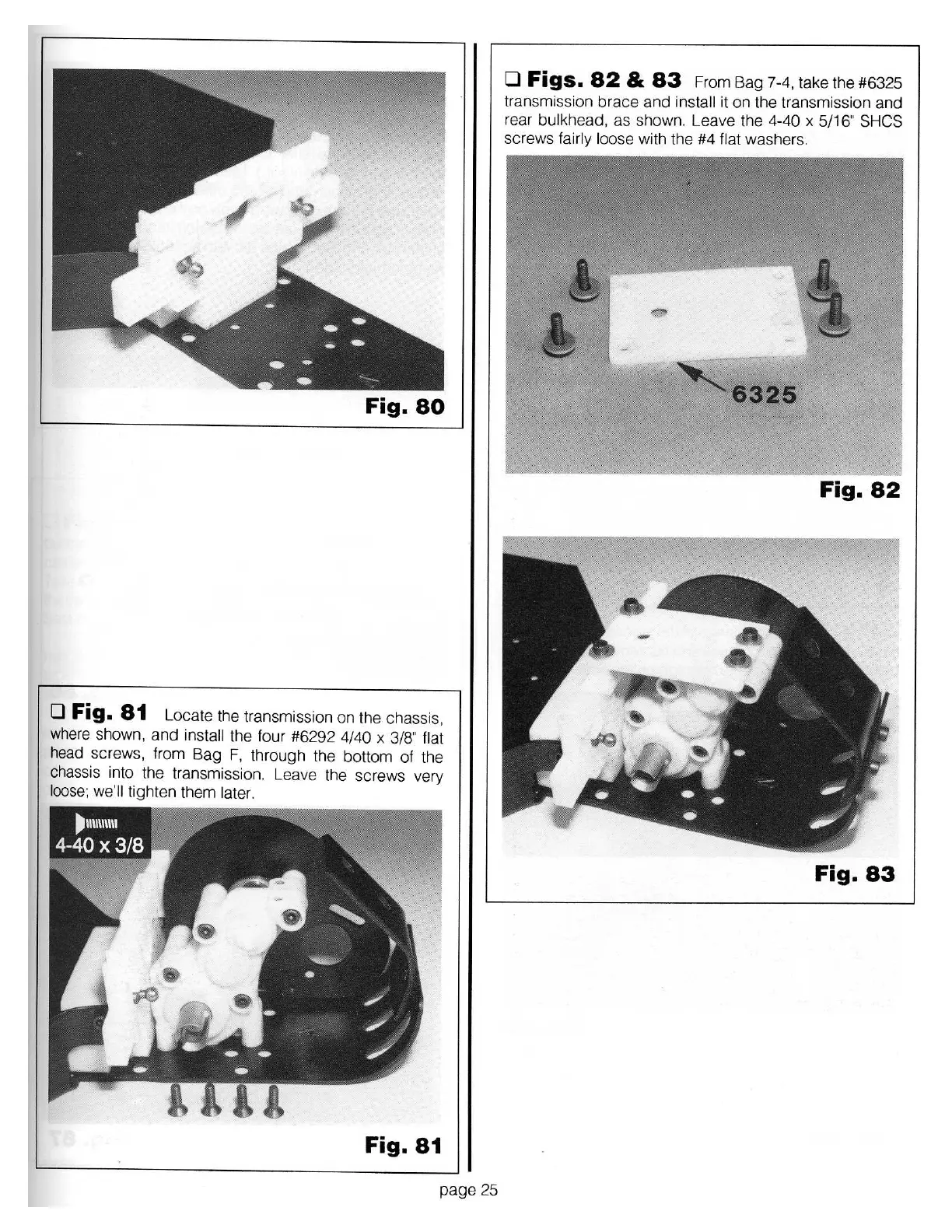

Locate the transmission on the chassis,
where
shown, and install
the four #6292
4/40
x
3/8" flat
head screws, from Bag
F,
through the bottom
of
the
chassis into the transmission. Leave the screws very
loose;
we'
ll
tighten them later.
Fig.
81
page 25
0
Figs.
82
&
83
From Bag
7-4, take the #6325
transmission brace and
insta
ll
it on the transmission and
rear
bulkhead, as show
n.
Leave the 4-40
x
5/16" SHCS
screws fairly loose
with the #4
flat
washers.
Fig.
82
Fig
.
83
