Associated Electrics RC10T - Page 33

Fig.
126
0
Fig.
127

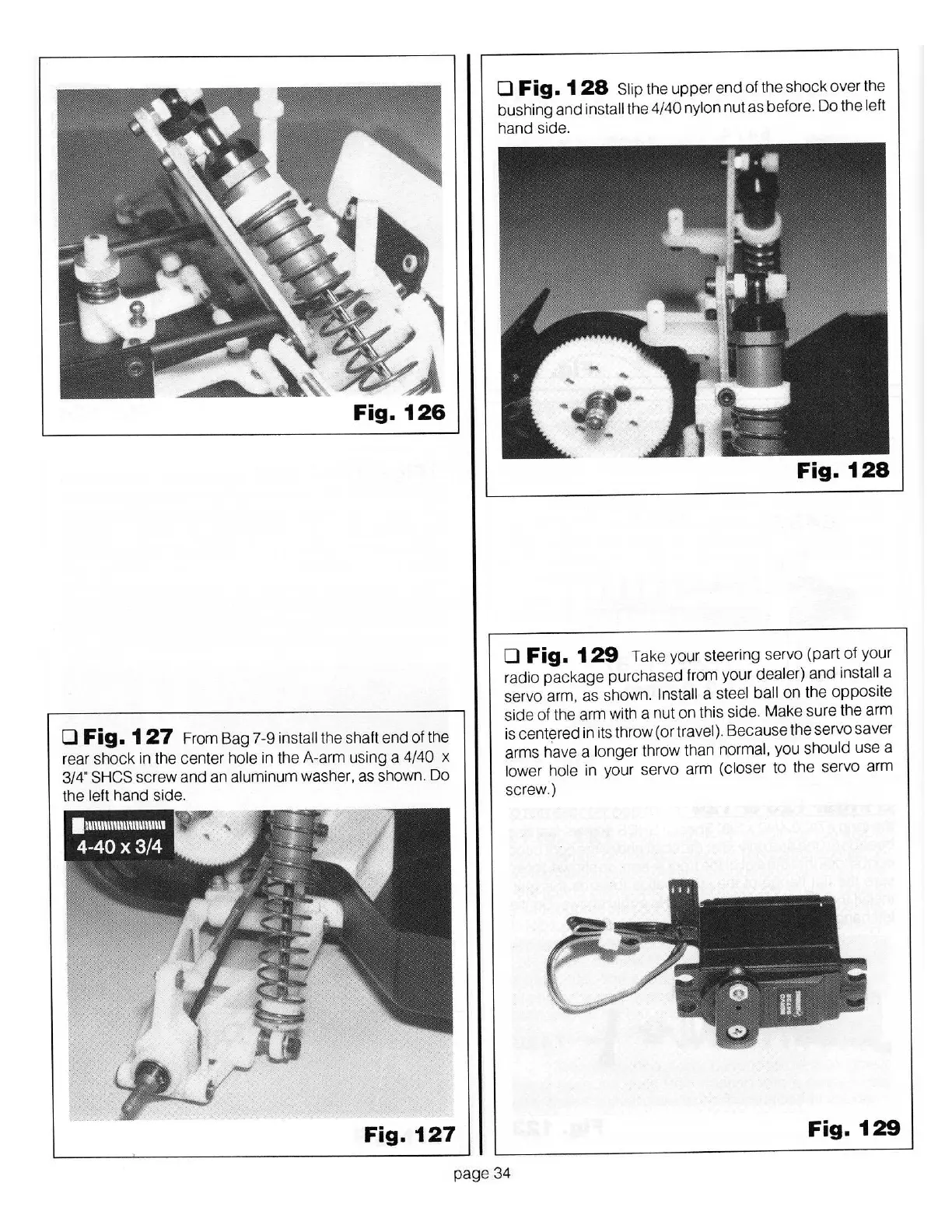

From Bag 7-9
install the shaft end
of
the
rear shock in the center
hole in the A-arm using a
4/40
x
3/4" SHCS
sc
rew
and
an aluminum
washer, as shown. Do
the
left
hand side.
Fig.
127
page
34
0
Fig.
128
Slip
the
upper
end
of
the shock over the
bushing and
install
t
he
4/40 nylon
nut
as
before.
Do
the
lett
hand side.
Fig.
128
0
Fig.
129
Take your steering servo (part
of
your
radio
package
purchased from your
dealer) and
install
a
servo arm, as shown.
Install
a
steel ball
on
the opposite
si
de of the arm with a nut
on
this side. Make sure the
arm
is
cent~
red in its throw (or
travel). Because the servo saver
arms have a longer
throw than
normal,
you
should
use a
lower hole
in your servo arm
(closer
to the servo arm
screw.)
Fig.
129
