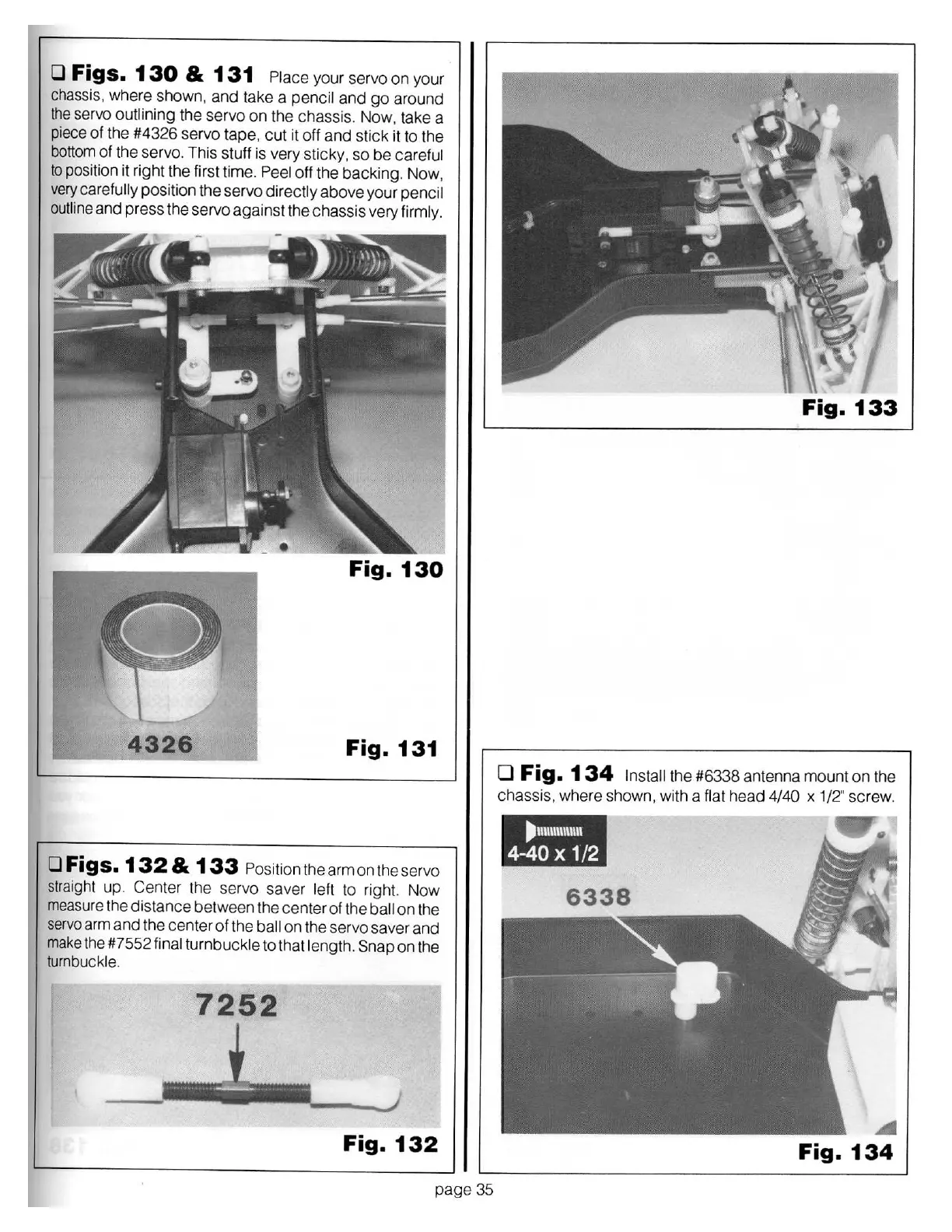

Associated Electrics RC10T - Radio Installation

0 Figs.
130
&
131
Place
your servo on your
chassis,
where
shown, and take a
pencil
and go around
the
servo outlining the servo on
the
chassis. Now, take a
piece
of the #4326 servo tape, cut it off and stick it to the
bottom
of
th
e se
rvo
. This stuff
is
very sticky, so be
careful
to position it right
the
first time.
Peel
off the backing. Now,
ve
ry
carefully
position the servo
directly
above your
pencil
outline
and
press the servo against the chassis very firmly.
Fig.
130
Fig.
131
0
Figs.
132
&
133
Pos
ition
th
e a
rm
on the servo
straight
up. Center
the
se
r
vo
saver
l
eft
to right.
Now
mea
su
re
the
distance between the center of the ball
on the
se
r
vo
a
rm
and the center of
th
e
ball
on
th
e
se
rvo saver and
make
the
#7552
final
turnbuckle to that length.
Snap
on
the
turnbu
c
kl
e.
7252
Fig.
132
page
35
Fig.
133
0
Fig.
134
In
sta
ll
the #6
338
antenna mount on
the
ch
ass
i
s,
where sh
own,
with a
flat
head
4/40
x
1/2" screw.
~111111\\1\1111
4-40
X
1/2
.....
Fig.
134
