Fig
. 8
Fig.
9
0
Figs.
10
&
11

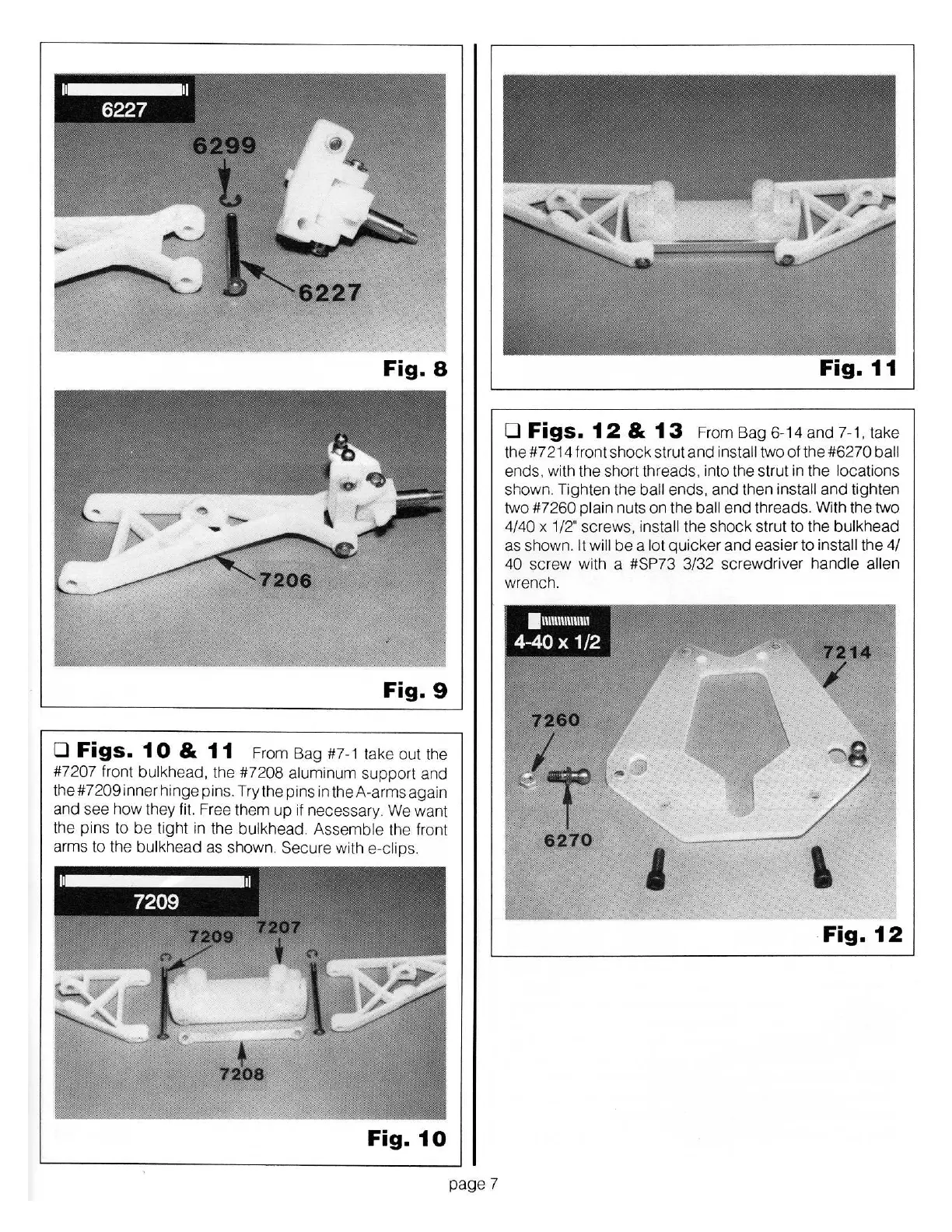

From Bag #7-1 take out the
#7207 front bulkhead, the #7208 aluminum support and
the#7209innerhingepins. Try the pins in theA-arms again
and see how they fit. Free them
up
if necessary. We want
the pins to
be
tight in the bulkhead. Assemble the front
arms to the bulkhead as shown. Secure with e-clip
s.
Fig.
10
page
7
Fig.
11
0
Figs.
12
&
13
From Bag 6-14
and
7-1, take
the #7214 front shock strut
and
install two
of
the #6270 ball
ends, with the short threads, into the strut in the locations
shown. Tighten the ball ends,
and
then install
and
tighten
two #7260 plain nuts on the ball
end
threads. With the two
4/40 x 1/2" screws, install the shock strut to the bulkhead
as shown. It will
be
a lot quicker
and
easi
er
to install the 4/
40 screw with a #SP73 3/32 screwd
ri
ver handle allen
wrench.
Fig.
12
