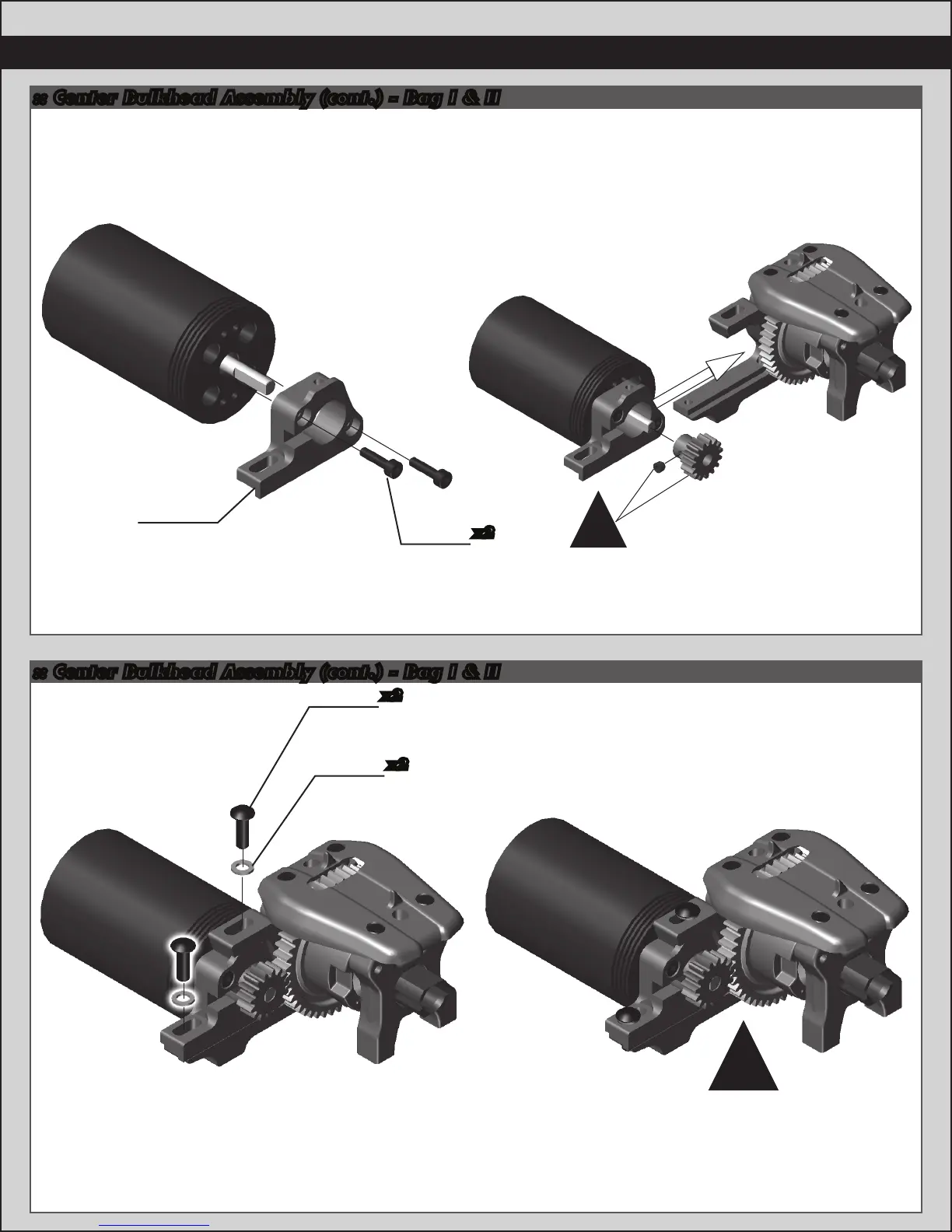

:: Center Bulkhead Assembly (cont.) - Bag I & II
:: Center Bulkhead Assembly (cont.) - Bag I & II
Check your gear mesh!
See page 33 for details
!
89454
3x12mm
shcs
89503
Motor
mount
washer
89207
4x12mm
bhcs
x2
x2
x2
89529
Motor
mount
slide
Note: pinion and set screw
not included.
See motor manufatcurer’s
gearing recommendations.
!
