Associated Electrics RC8.2e - Page 7

7

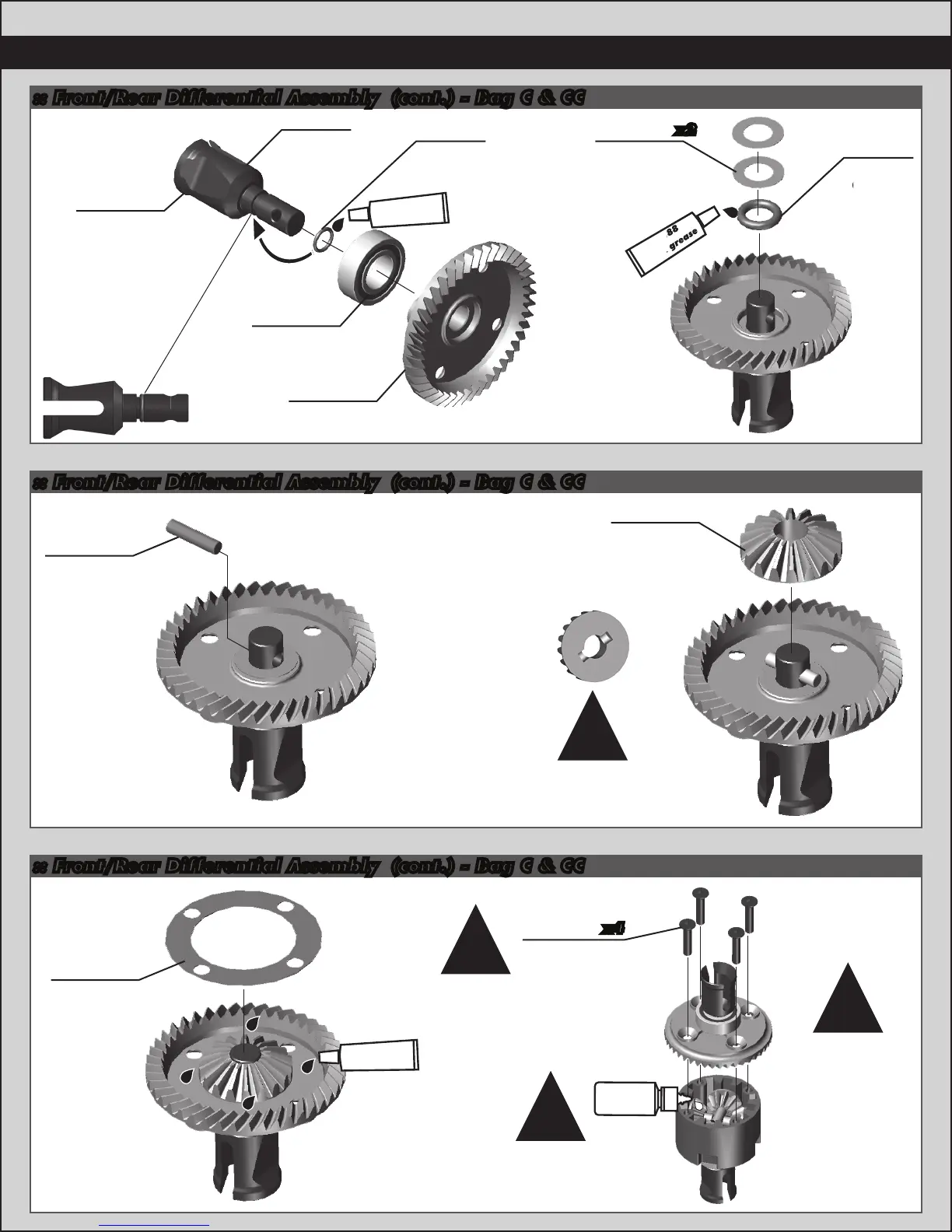

:: Front/Rear Differential Assembly (cont.) - Bag C & CC
:: Front/Rear Differential Assembly (cont.) - Bag C & CC
:: Front/Rear Differential Assembly (cont.) - Bag C & CC
89120
Diff
outdrive
pin
89116
Diff
gasket
25236
8x16mm
bearing
89494
Light diff
ring gear
89477
Light
outdrives
(front, long)
89121
Diff
O-Ring
89121
Diff
O-Ring
89478
Light
outdrives
(rear, short)
Align pin with
groove in sun gear
!
#6588
black grease
#6588
black grease
#6588
black grease
89120
Sun gear
O-Ring
#6588
black grease
89120
Diff
washer
x2
89208
3x14mm
fhcs
x4
Diff fluid
5,000cst
#5453
Tighten screws
evenly and firmly.
Fill with diff fluid to
top of gears.
!
!
Build
front and
rear diffs!
!
