Associated Electrics RC8.2e - Center Differential Assembly (Bag C & CC)

8

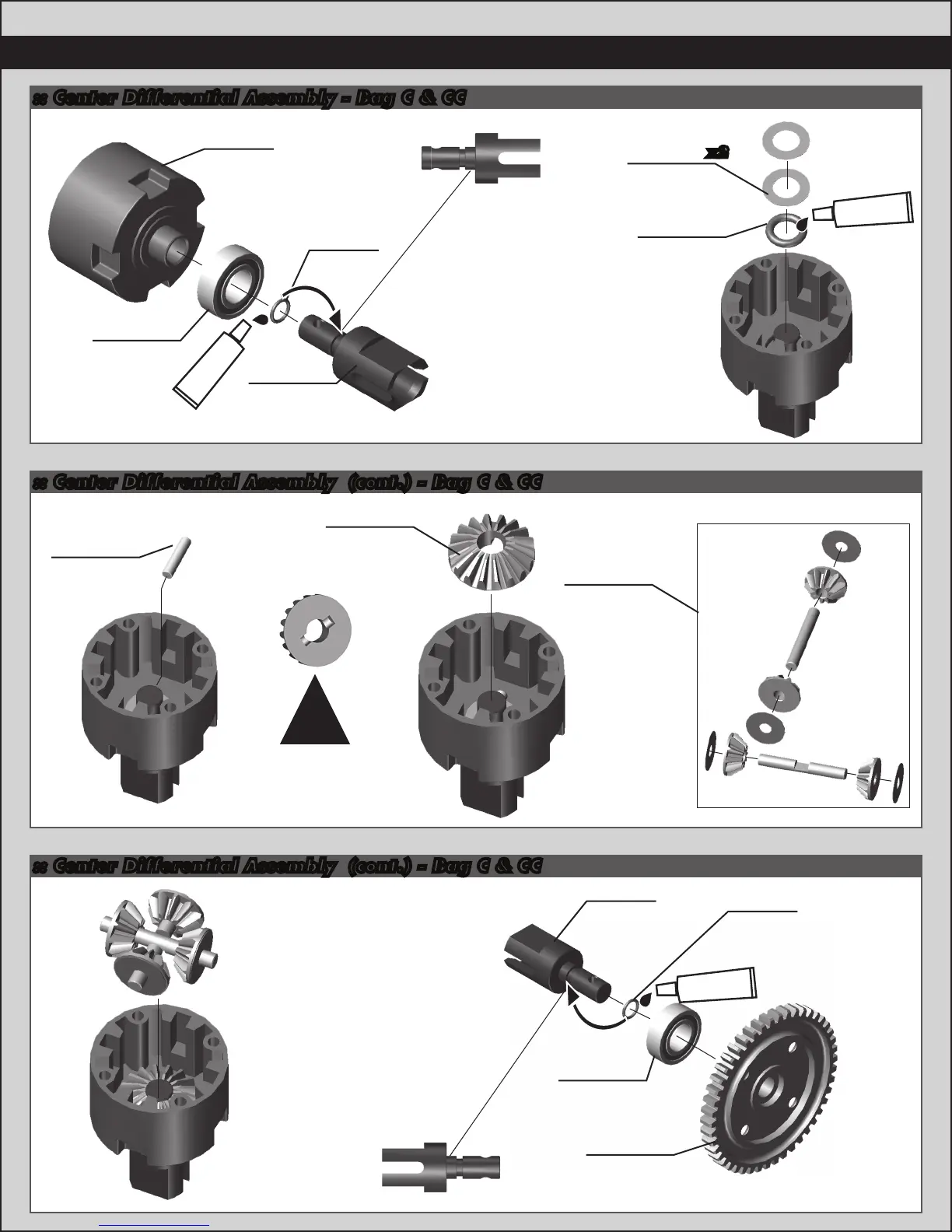

:: Center Differential Assembly - Bag C & CC
:: Center Differential Assembly (cont.) - Bag C & CC
:: Center Differential Assembly (cont.) - Bag C & CC
Align pin with
groove in sun gear
!
89120
Sun gear
89115
Diff
housing
25236
8x16mm
bearing
89121
Diff
O-Ring
89119
Diff
outdrives
(center)
89120
Diff
washer
x2
89121
Diff
O-Ring
89519
Plastic
spur gear
(46T)
89119
Diff
outdrives
(center)
25236
8x16mm
bearing
89121
Diff
O-Ring
#6588
black grease
#6588
black grease
#6588
black grease
89120
Diff
outdrive
pin
89120
Spider
gear
assembly
