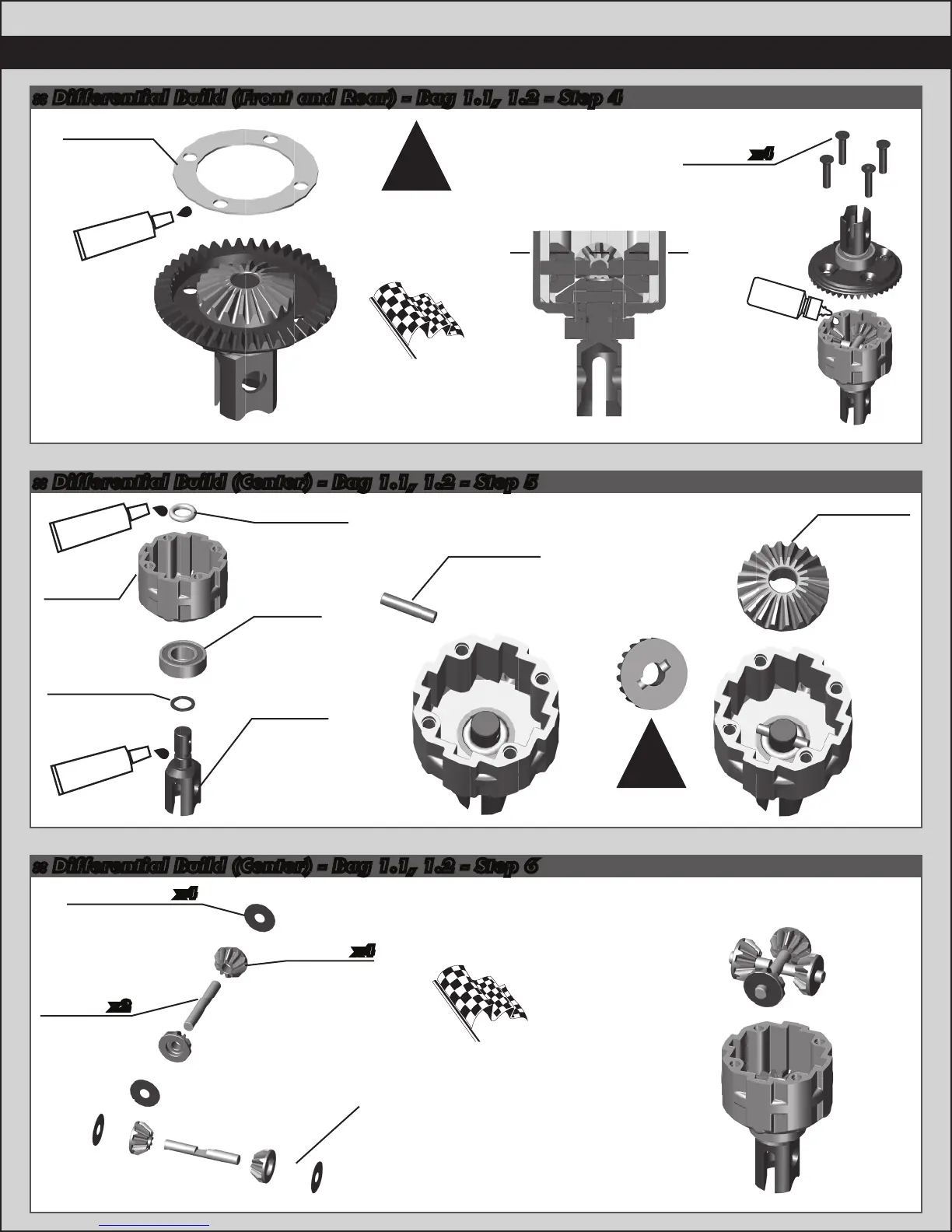

:: Differential Build (Front and Rear) - Bag 1.1, 1.2 - Step 4
:: Differential Build (Center) - Bag 1.1, 1.2 - Step 5
:: Differential Build (Center) - Bag 1.1, 1.2 - Step 6
89208
3x14mm
FHCS
x4
Diff Fluid
81384
Diff
Gasket
Front Diff Fluid:
5,000cst #5453
Rear Diff Fluid:
3,000cst #5452
Racer’s Tip:
Use black grease
(#6588) to coat
the Diff Gasket
before installation!
81380
Diff
Planet
Gear
81380
Diff
Crosspin
81381
Diff Shim
3.5x11x0.12mm
x4
x4
x2
Racer’s Tip:
You can use #81385 Planet O-Ring
between the Planet Gears and the
Diff Shims as a tuning option.
#6588
black grease
#6588
black grease
#6588
black grease
Align pin with
groove in sun gear
!
!
81380
Pin
2.5x12mm
81380
Diff Sun
Gear, 20T
81012
17mm
Outdrive,
Center Diff
81381
Diff Shim
6x8x0.20mm
91564
8x16x5
Bearing
81379
Diff
Case
81385
Outdrive
O-Ring
5.8x1.9mm
Racer’s Tip:
Fill diff above the cross
pins, below the planet
gears as shown.
6
