Associated Electrics RC8B3.1 - Center Bulkhead and Brakes Build; Center Bulkhead;Brakes Build - Step 1; Center Bulkhead;Brakes Build - Step 2

16

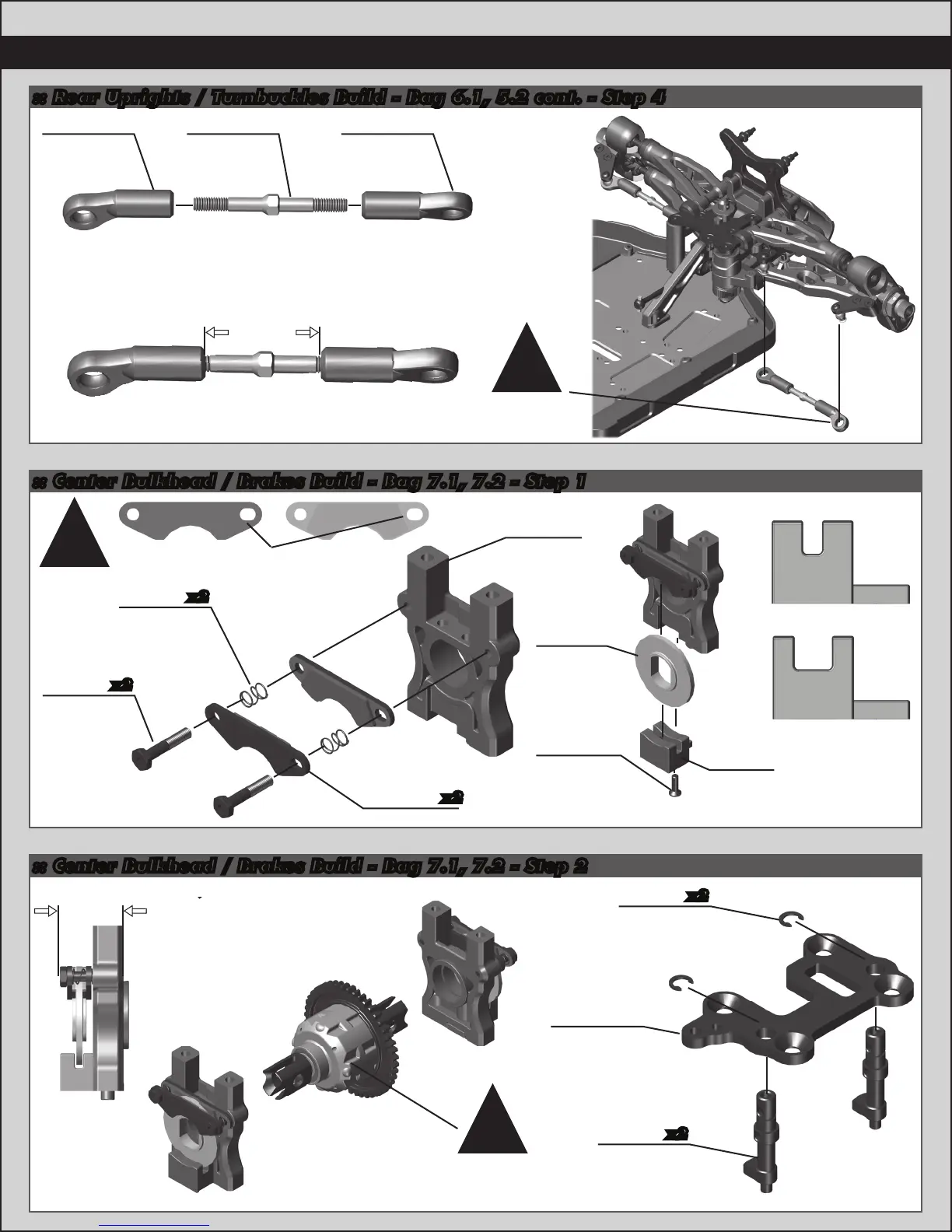

:: Center Bulkhead / Brakes Build - Bag 7.1, 7.2 - Step 2
:: Center Bulkhead / Brakes Build - Bag 7.1, 7.2 - Step 1
:: Rear Uprights / Turnbuckles Build - Bag 6.1, 5.2 cont. - Step 4
89149
Brake
Bolt
81256
C-Clip,
5mm
81040
Brake
Cam
81043
Center
Top Plate
31448
2.5x8mm
FHCS
81037
Brake
Rotor
81038
Brake
Pad
Spring
81036
Center
Bulkhead
81093
Rod End,
4mm
89526
4x50mm
Turnbuckle
81093
Rod End,
4mm
x2
x2
x2
x2
81039
Brake Pad
81036
Rotor
Guide,
Narrow
x2
Align slotted holes on the same side
when installing brake pads.
Note direction
Wide Rotor Guide
used for optional
brake rotors.
!
!
Steering Turnbuckle
24.90mm (0.98”)
Build x2 Build x2
Wide
Narrow
18.40mm (0.72”)
18.40mm (0.72”)
Note direction of
center diff.
!
