Associated Electrics RC8B4.1e Team Kit - Center Bulkhead Assembly - Steps 1-2; Bulkhead and Adapter Plate Installation; Dogbone and Wire Routing

20

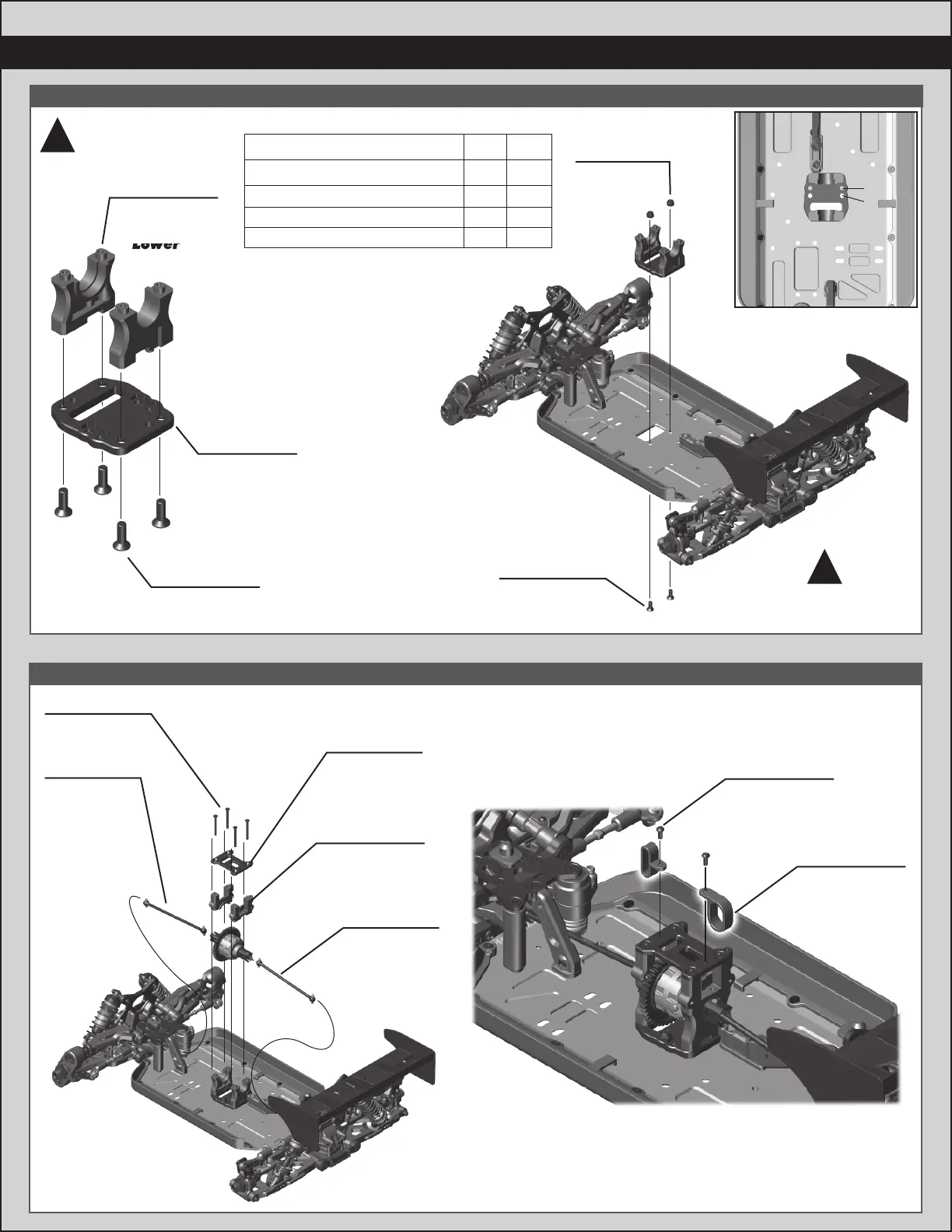

:: C:: Center Bulkheadenter Bulkhead - - Bag 9.1 Bag 9.1 - Step 2- Step 2
:: C:: Center Bulkheadenter Bulkhead - - Bag 9.1 Bag 9.1 - Step 1- Step 1
81578
RC8B4e
Front Top
Plate
81646
RC8B4e
Center
Dogbone,
96.5mm
81581
RC8B4e
Center
Dogbone,
104mm
81572
RC8B4e Wire
Routing Clips
31521
2.5x8mm
BHCS
x2x2
x2x2
89212
3x30mm
FHCS
81262
4x10mm
FHCS
89216
M4
Locknut
x4x4
x2x2
x2x2
81448
Center
Bulkhead,
Lower
89214
4x12mm
FHCS
81645
FWB / RWB
Adapter
Plate
81448
Center
Bulkhead,
Upper
x2x2
x4x4
x2x2
Note: Do not use
brake rotor guides
on center bulkheads
Note: The upper center
bulkheads have “F” for
front and “R” for rear.
!
!
Lower
FWB
RWB
Rear
Front
FWB
Motor Direction on ESC to Reverse
RWB
Weight Bias Setting
Center Diff Adapter Position
Motor Clamp Position
Front Dogbone Shaft (mm)
Rear Dogbone Shaft (mm)
FWD
FWD
96.5
104
RWD
RWD
104
96.5
