Associated Electrics RC8B4 - Page 19

19

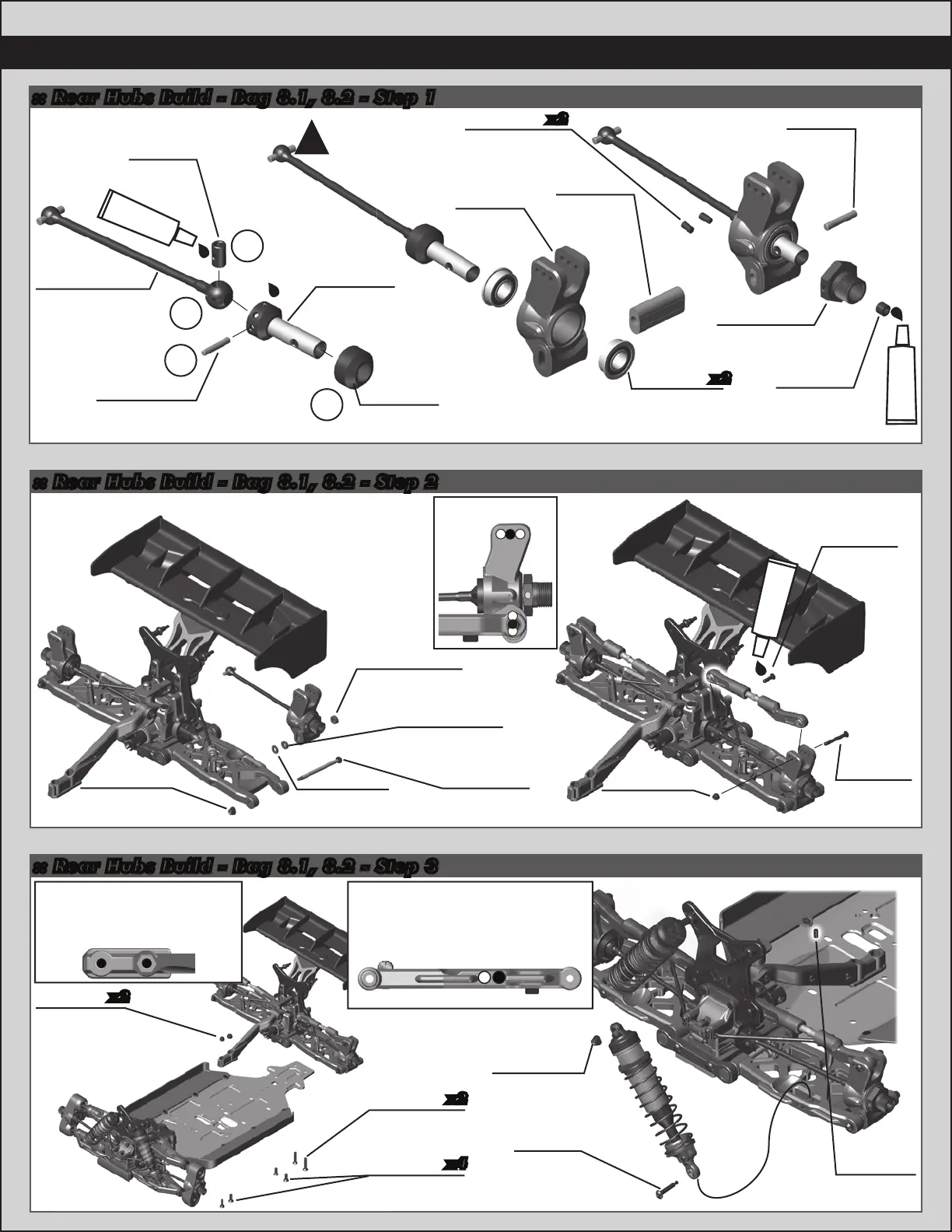

:: Rear Hubs Build - Bag 8.1, 8.2 - Step 3
:: Rear Hubs Build - Bag 8.1, 8.2 - Step 2
:: Rear Hubs Build - Bag 8.1, 8.2 - Step 1
Build two!
Install left and right side!
#6588
black grease
81328
CVA Coupler
Pin
81547
CVA Axle,
Steel
81548
CVA Axle
Sleeve
81328
CVA
Coupler
81497
CVA Bone
(93mm)
2
3
4
1
81545
Rear
Hub
81545
Rear Hub
Insert,
Center
91565
8x16x5mm
Bearing,
Flanged
x2
#1596
thread lock
89221
5x4mm
Set Screw
81081
Wheel Hex,
+0mm Wide
89096
Wheel
Hex Pin
25215
3x6mm
Set Screw
x2
25612
M3 Locknut
w/Flange
81545
Rear Hub
Shim, 1.0mm
81545
Rear Hub
Shim, 2.5mm
81545
Rear Hub
Shim, 1.5mm
81076
Hub Hinge
Pin
#1596
thread lock
25612
M3 Locknut
w/Flange
89204
3x24mm
BHCS
25211
3x10mm
BHCS
89216
M4
Locknut
81264
4x20mm
FHCS
89214
4x12mm
FHCS
x4
x2
x2
25612
M3 Locknut
W/ Flange
81509
Shock
Pin
81257
3x6mm
Set Screw
Kit Setup:
Mount the rear shock in the
outside hole on the rear arm.
AB
Tighten set
screw before
camber link
installation.
!
Kit Setup:
Tuning Tip:
Remove screw A for “soft/
short” flex configuration.
A B
