Associated Electrics RC8B4 - Page 7

7

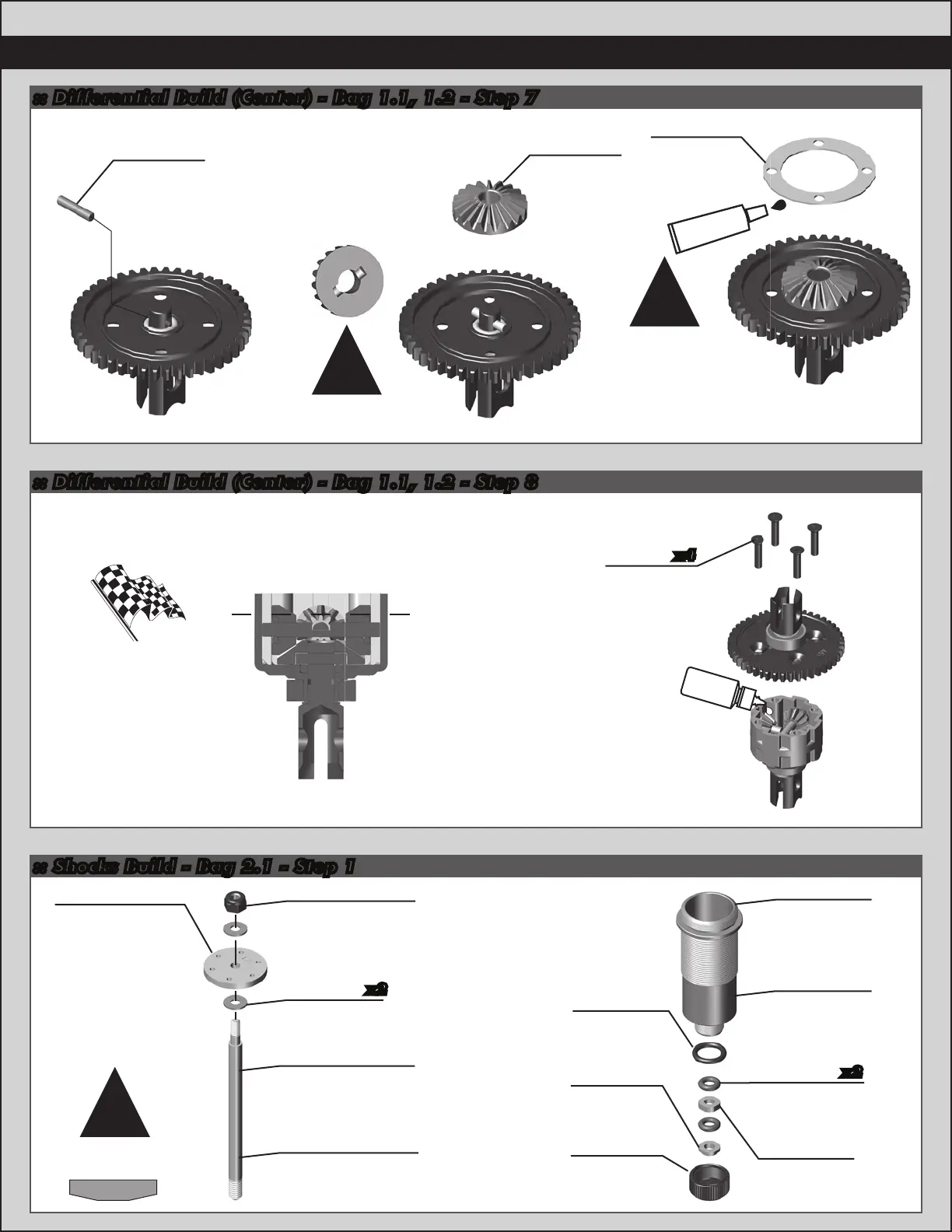

:: Differential Build (Center) - Bag 1.1, 1.2 - Step 7
:: Differential Build (Center) - Bag 1.1, 1.2 - Step 8
Align pin with
groove in sun gear
!
89208
3x14mm
FHCS
x4
81384
Diff
Gasket
Racer’s Tip:
Fill diff above the cross
pins, below the planet
gears as shown.
Racer’s Tip:
Use black grease
(#6588) to coat
the back side of the
diff gasket (i.e. not
the entire gasket)
before installation!
#6588
black grease
!
81380
Pin
2.5x12mm
Diff Fluid
Center Diff Fluid:
10,000cst #5455
:: Shocks Build - Bag 2.1 - Step 1
81186
Shock
O-Ring
81185
O-Ring Hat
Bushing
81188
Shock Body
Seal
Retainer
81200
Shock Piston
(8x1.2 tapered)
Front and Rear
x2
81172
TiN Shock Shaft,
3.5x33.5mm
(Front)
81185
O-Ring
Spacer
81160
Shock Body,
30.5mm
(Front)
81161
Shock Body,
39.5mm
(Rear)
81185
Shock Body
O-Ring
81173
TiN Shock Shaft,
3.5x42.5mm
(Rear)
89278
2.6x6mm
Washer
89215
2.5mm Shock
Piston Locknut
x2
81380
Diff Sun
Gear, 20T,
HTC
Install pistons
taper down
!
