Example : if set point value is 200°C and Hysteresis set to 10. Then relay operation as below mentioned:
1. Relay contact OPEN below 210°C temperature.
2. Relay contact CLOSE above 210°C temperature.
3. Once relay contact CLOSED than relay contact is OPEN's when temperature falls below 190°C.
Ana. Sub range LO : Analog sub-range is adjustable within the basic range, user can set lower analog sub-range
here.
Ana. sub range HI : User can set the analog sub-range higher value here. Minimum span between lower &
higher value is 51°C
Analog output : User can select the output from
Temp. Unit : User can select °C or °F unit.
Sensor address : For communicating with pyrometer via software users have to give a address. The address
may be 1 to 255.
Response time : The response time can be set from 20 msec to 10sec.
Picker : User can calculate a maximum “peak” temperature value from specified number stored real
temperature in the sensor memory. User can either on or off the picker.
Head temp. : It shows the temperature of head.
Internal temp. : It shows the internal temperature of pyrometer.

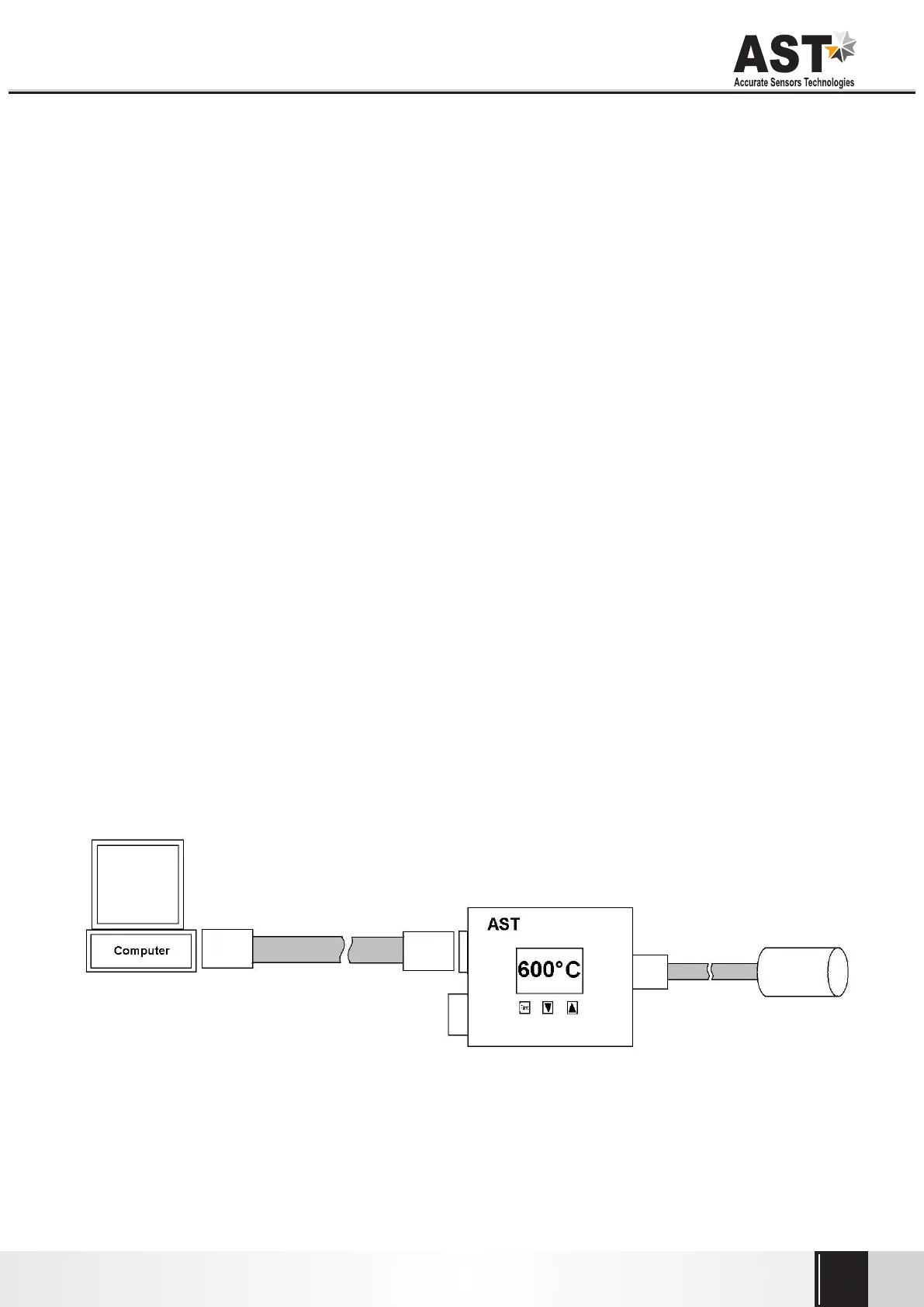

4.3 Connection diagram
4-20mA or 0-20mA or 0-10V or T/C K-type or J-type
Connection through USB cable
