Astralpool 22359 - Model 28556 Dimensions and Characteristics; Model 28556 Spare Parts

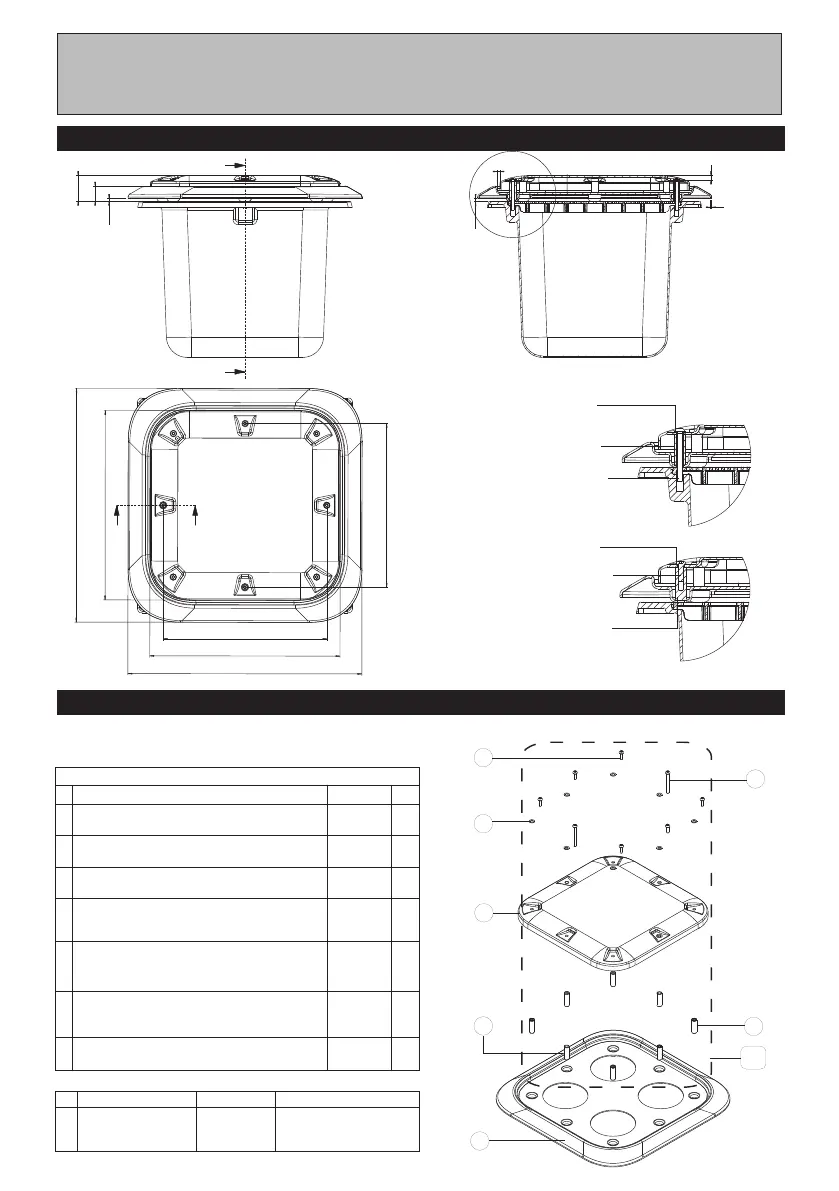

1. DIMENSIONS AND CHARACTERISTICS COD. 28556
2. SPARE PARTS COD.28556
Nº. Denomination Code Units
1
Screw/Vis/Tornillo/Viterie/Schrauben/Parafusos Inox
7211106190
2
2
Screw/Vis/Tornillo/Viterie/Schrauben/Parafusos ISO 7380
7022807070
2
7011908000
4
Washer/Bague/Arandela/Rondella/Ventilschieber/
Anilha Ø 6 Din 125
4
5
Upper lid / Paupière supérieure /Tapa
superior/Coperchip superiore / Oberer deckel / Tampa
superior
1
6
Case of poliamide /Le cas en poliamide /Casquillo de
poliamida /Caso di poliamida /Fall aus poliamide
/Caso de poliamida Ø 15 x 45 Ø int9
25344-0401
2
7
Case of poliamide /Le cas en poliamide /Casquillo de
poliamida /Caso di poliamida /Fall aus poliamide
/Caso de poliamida Ø 15 x 45 Ø int.M8 x 20
25344-0402
2
Inferior lid / Paupière inférieure /Tapa inferior/
Coperchio inferiore / Niedriger deckel / Tampa inferior 1
COMPONENTS
ISO 7380 M8 X 20
ISO 7380 M8 X 80
Nº Denomination kit Code kit Components code
A Montaje tapa antivortex 25344R-0510
7211106190 , 7022807070 ,
7011908000 , 7011906000 ,
25344-0401 , 25344-0402
1
3
4
5
7
6
2
A
3
60
36
6,75
D
D
560
560
450
450
390
390
F F
10
3
6
6,75
D-D (1: 4)
G
G (1: 2)
H (1: 2)
Nylon support sleeve of
Ø 15 x 45 with blind hole
Stainless steel AISI 316
Screw M8 x 20 ISO 7380
Ø 8 Din 125 Inox AISI
304 washer
Stainless steel screw
304 M8 x 70 ISO 7380
AISI
Ø 8 Din 125 Inox AISI
316 washer
Nylon
Ø 15 x 45 Ø 9mm(int.)
support sleeve of
MAIN DRAIN
BONDE DE FOND
SUMIDERO
SCARICO DI FONDO
BODENABLAUF
RALOS DE FUNDO
