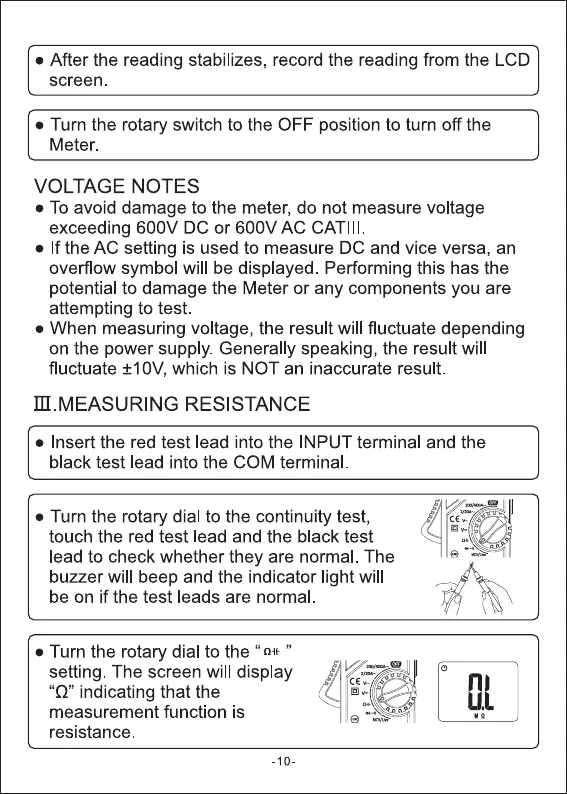

• After the reading stabilizes, record the reading from the LCD
screen
• Turn the rotary switch to the OFF position to turn off the
Meter.
VOLTAGE NOTES
• To avoid damage to the meter, do not measure voltage
exceeding 600V DC or 600V AC CATHI
• If the AC setting is used to measure DC and vice versa, an
overflow symbol will be displayed. Performing this has the
potential to damage the Meter or any components you are
attempting to test.
• When measuring voltage, the result will fluctuate depending
on the power supply. Generally speaking, the result will
fluctuate ±IOV, which is NOT an inaccurate result.
m.MEASURING RESISTANCE
• Insert the red test lead into the INPUT terminal and the
black test lead into the COM terminal
• Turn the rotary dial to the continuity test,
touch the red test lead and the black test
lead to check whether they are normal The
buzzer will beep and the indicator light will
be on if the test leads are normal.
• Turn the rotary dial to the "04 "
setting. The screen will display
"Q" indicating that the
measurement function is
resistance.
-10-
