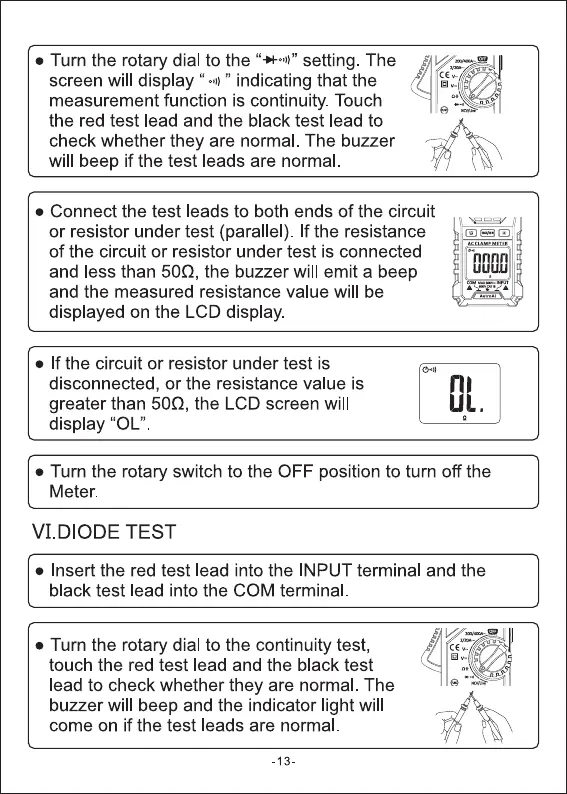

• Turn the rotary dial to the "*0")" setting. The
screen will display " " indicating that the
measurement function is continuity. Touch
the red test lead and the black test lead to
check whether they are normal. The buzzer
will beep if the test leads are normal
• Connect the test leads to both ends of the circuit
or resistor under test (parallel). If the resistance
of the circuit or resistor under test is connected
and less than 500, the buzzer will emit a beep
and the measured resistance value will be
displayed on the LCD display.
• If the circuit or resistor under test is
disconnected, or the resistance value is
greater than 50Q, the LCD screen will
display "OL"
m
UL.
• Turn the rotary switch to the OFF position to turn off the
Meter.
VI.DIODE TEST
• Insert the red test lead into the INPUT terminal and the
black test lead into the COM terminal
• Turn the rotary dial to the continuity test,
touch the red test lead and the black test
lead to check whether they are normal. The
buzzer will beep and the indicator light will
come on if the test leads are normal.
-13-
