18

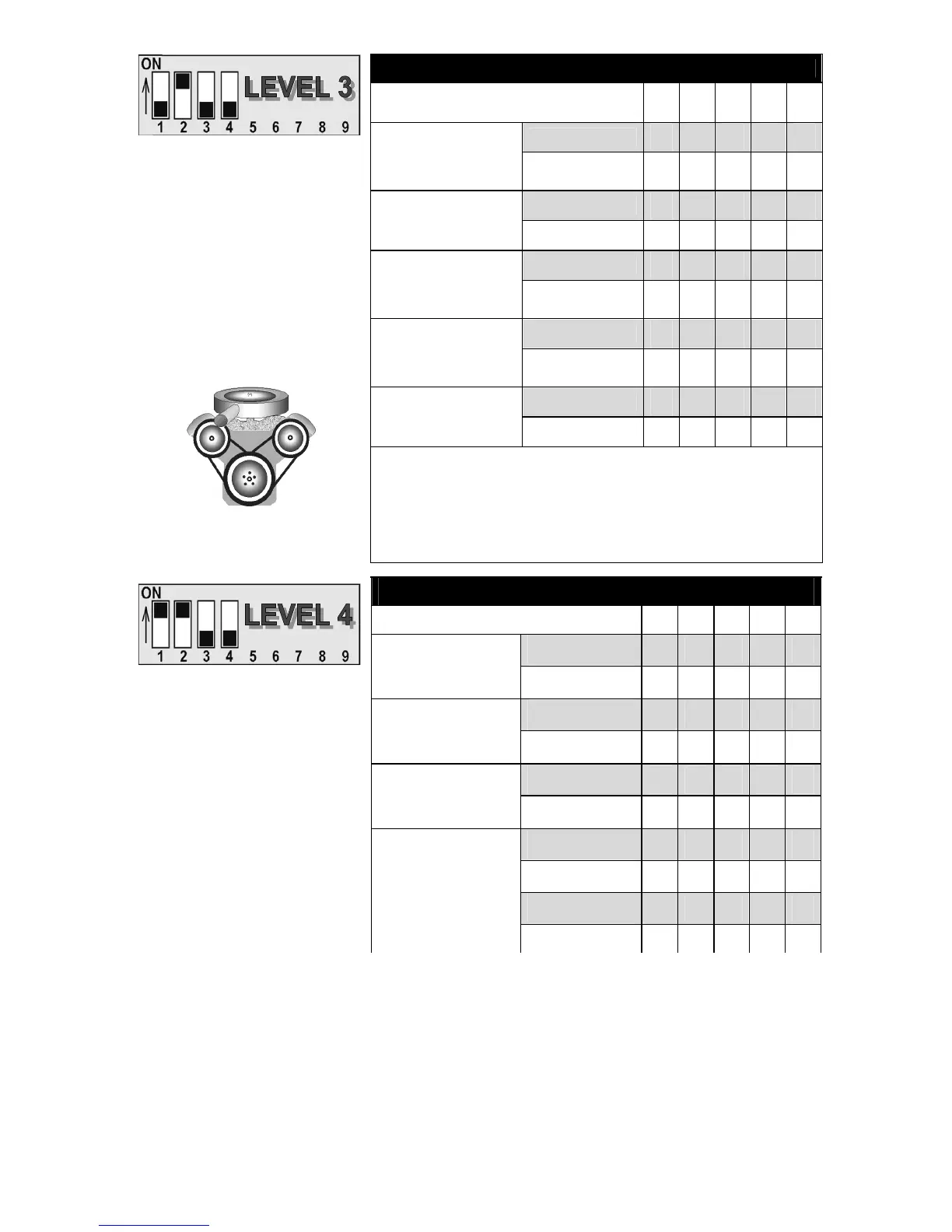

ENGINE CONFIGURATION
STAGE 1 - LEVEL 3 5 6 7 8 9
Parking Light
Circuit P2-5
(Orange/White)
used to monitor
Glow Plug
*1
15 sec.
Glow Plug delay
30 sec.
Positive
Parking Light or
Glow Plugs circuit
polarity *2
Negative
Turned Off
Ignition circuit
status between
crank attempts
Remains On
Normally Closed
Hood Pin
switch type *3
Normally Open
Default settings:
Circuit P2-5 (Orange/White) is
use to monitor: the Parking Light
Glow plug delay: 15 seconds
Parking Light or Glow Plugs circuit
polarity
2
: Positive
Ignition: Turned Off between crank
attempts
Hood pin switch: N.C.
1 - When the unit is set to monitor the Glow plug circuit, the runtime is
twice the setting done.
2 - Positive & Negative settings glow plug are based on the circuit being
activated. (Parking Light or Glow Plug light “ON”)
3 - Hood Pin switch type: Normally open & normally closed settings
are based on the hood being “Open”.
ANTITHEFT SYSTEM
STAGE 1 - LEVEL 4 5 6 7 8 9
Disabled
OEM security
system rearming
Enabled
Type 1
Rearming type
Type 2
No delay
Accessory
Start-up Delay
3 sec. delay
Disabled
Enabled
Passive
Default settings:
Rearming = Disabled
Rearming type = Type 1
Accessory = No delay
Antitheft = Disabled
Antitheft type = Passive
Note: Type 1 is use to duplicate the oem
alarm rearming that requires a Lock
command while the driver’s door is open.
(i.e. GM) Type 2 is suited to shut down RAP
by opening and closing the driver’s door
prior to Lock.
Antitheft System
Active
