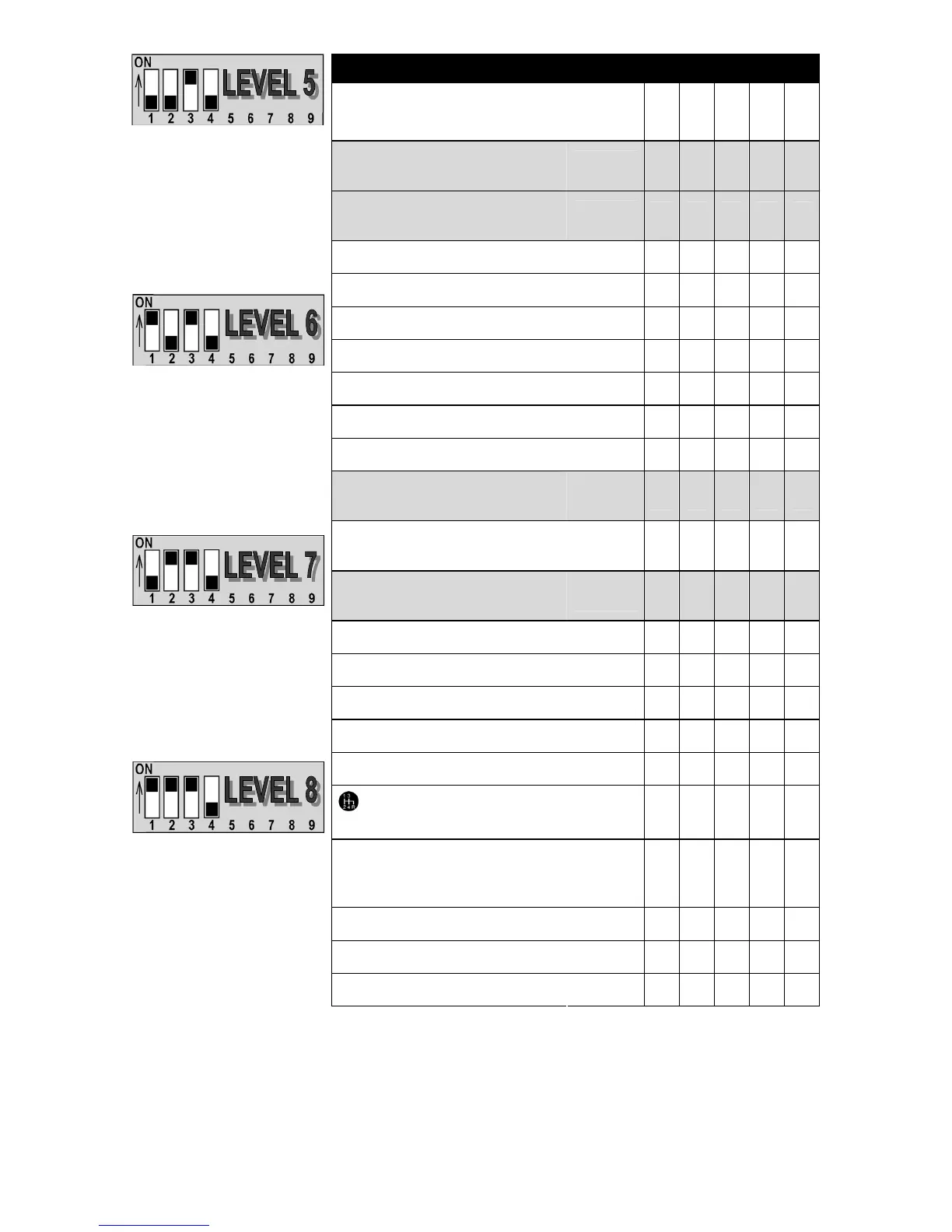

PROGRAMMABLE OUTPUTS 1, 2, 3 & 4
STAGE 1 - LEVEL 5, 6, 7 & 8
DEFAULT
LEVEL
5 6 7 8 9
Pulse Before Start
(Default Output #1)
5
Pulse After Shutdown
(Default Output #2)
6
Trunk Release
(Default Output #3)
7
Pulse after Ignition Off
(1 min. duration)
Dome Light
(Default Output #4)
8
Utility 3 (1 second fixed time)
Utility 4 (1 second fixed time)
Ground when Safety sequence
is Valid
Ground when the security system
(AstroStart or OEM) is triggered or
when the Panic mode is engaged
Ground when Unlocked by User 2
External LED (Same functions as P9)
Output 1:
P2 Connector, Pin 13
Brown wire
Default setting:
Pulse before start
Output 2:
P2 Connector, Pin 14
White/Blue wire
Default setting:
Pulse after shut-down
Output 3:
P2 Connector, Pin 15
White wire
Default setting: Trunk release
Output 4:
P2 Connector, Pin 16
Purple wire
Default setting: Dome light
