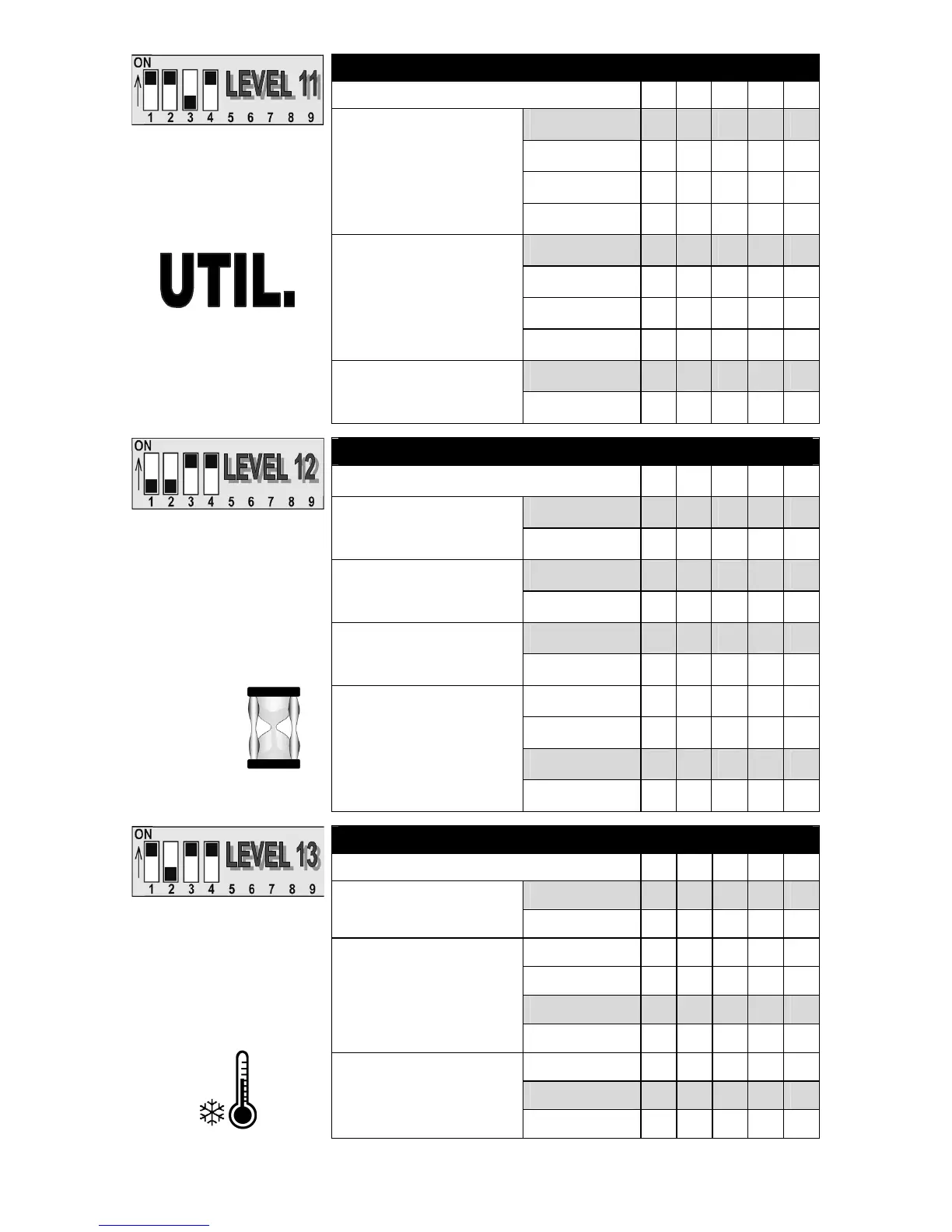

DURATIONS: UTILITY 1 & 2 & PANIC
STAGE 1 - LEVEL 11
5
6
7
8
9
0.7 sec.
15 sec.
1 minute
Utility Duration
1
8 minutes
0.7 sec.
15 sec.
1 minute
Utility Duration
2
8 minutes
30 sec.
Default settings:
Utility 1 = 0.7 sec.
Utility 2 = 0.7 sec.
Panic duration = 30 sec.
Panic Duration
60 sec.
ENGINE RUNTIME
STAGE 1 - LEVEL 12
5
6
7
8
9
Enabled
RPM > 3000
Disabled
Disabled
Pulse
before
start
on all
Unlock
outputs
Enabled
Disabled
Pulse
after
start
on all
Lock
outputs
Enabled
2 / 4 minutes
4 / 8 minutes
8 / 16 minutes
Default settings:
RPM > 3000 = Enabled
Pulse
before
start on all
Unlock
outputs = Disabled
Pulse
after
Start on all
Lock
outputs = Disabled
Engine runtime
8 min. (Gas)
16 min. (Diesel).
Engine runtime
(Gas / Diesel)
18 / 36 minutes
SENTINEL MODE
STAGE 1 - LEVEL 13
5 6 7 8 9
Disabled
Pulse before on
Trunk command
Enabled
-5° C (23° F)
-15° C (5° F)
-20° C (-7° F)
Sentinel mode
Activation Temperature
-30° C (-22° F)
4 min./ 8 min.
8 min./ 16 min.
Default setti
ngs:
Pulse before on
Trunk command = Enabled
Temperature = -15° C (5° F)
Run time
= 8 min. (Gas),
= 16 min. (Diesel)
Sentinel mode Runtime
Gas / Diesel
18 min./ 36 min.
22
24
Table of Contents
Default Chapter
3
Table of Contents
3
Verifications and Testing to be Done before the Installation
4
Quick Guide for Skilled Installers
5
Important Note to be Read at the Installation
10
Control Module Programming
10
Detailed Features
11
P1: Alarm (Optionnal)
11
P1-1: Red/White: Siren Output (+)
11
P1-2: Grey: TRUNK OUTPUT
11
P1-3: Blue: DOME LIGHT OUTPUT
11
P1-5: Pink: ARMED OUTPUT
11
P1-6: White: Doors / Horn (-) & P1-7: Purple: Doors / Horn (+)
11
P1-8: Yellow: Anti-Locking
12
P2: Input/Output
12
P2-1 & 2: Red
12
P2-3: Black/Red: Hood Input
12
P2-4: White/Green: Positive Brake Switch Input
12
P2-5: Orange/White: Parking Light / Glow Plug Detection Input (±)
12
P2-6: Dark Green: Negative out When Running
13
P2-7: Orange: Anti-Theft Output
13
P2-8: Light Green: Horn Output
13
P2-9: Red/White: +12V Output
13
P2-10: Black/Green: Tachometer Input
13
P2-11: Black: Ground Input
13
P2-13 to P2-16: Programmable Output #1 to #4
14
P3: Power Door Locks
14
P4: Main Harness
14
P4-1: Red/Black: Power Input
14
P4-2: Yellow: Accessory Output
14
P4-3: Green: Parking Light Output
15
P4-4: Orange: Ignition Output
15
P4-5: Dark Blue: Starter Output
15
P4-6: Light Blue: Starter Cut Input
15
P4-7: Red: Power Input
15
P5: Programmable Relay
15
P6 - P16: Connectors for Plug-In Accessories
16
P6: Shock Sensor (Supplied with Alarm Kit 310-120-503)
16
P7: Other Sensor (Supplied with Alarm Kit 310-120-503)
16
P9: Led (Status)
16
P10: Timer Control
16
P11: Valet Switch
17
P12: Manual Interface
17
P13: Main Switch
17
P15: Receiver Connector
17
P16: IM - Om - Iom Accessories Connector
17
Detailed Programming of the Control Module
18
Programming Procedure
18
Stages Programming
18
Levels Programming
18
Programming Tables
19
Diagnostic Codes
26
Verification of Installation
27
Post-Installation and Security Tests
28
Code Learning of Transmitter (S)
29
With the Dip Switches
29
With the Ignition Key
29
