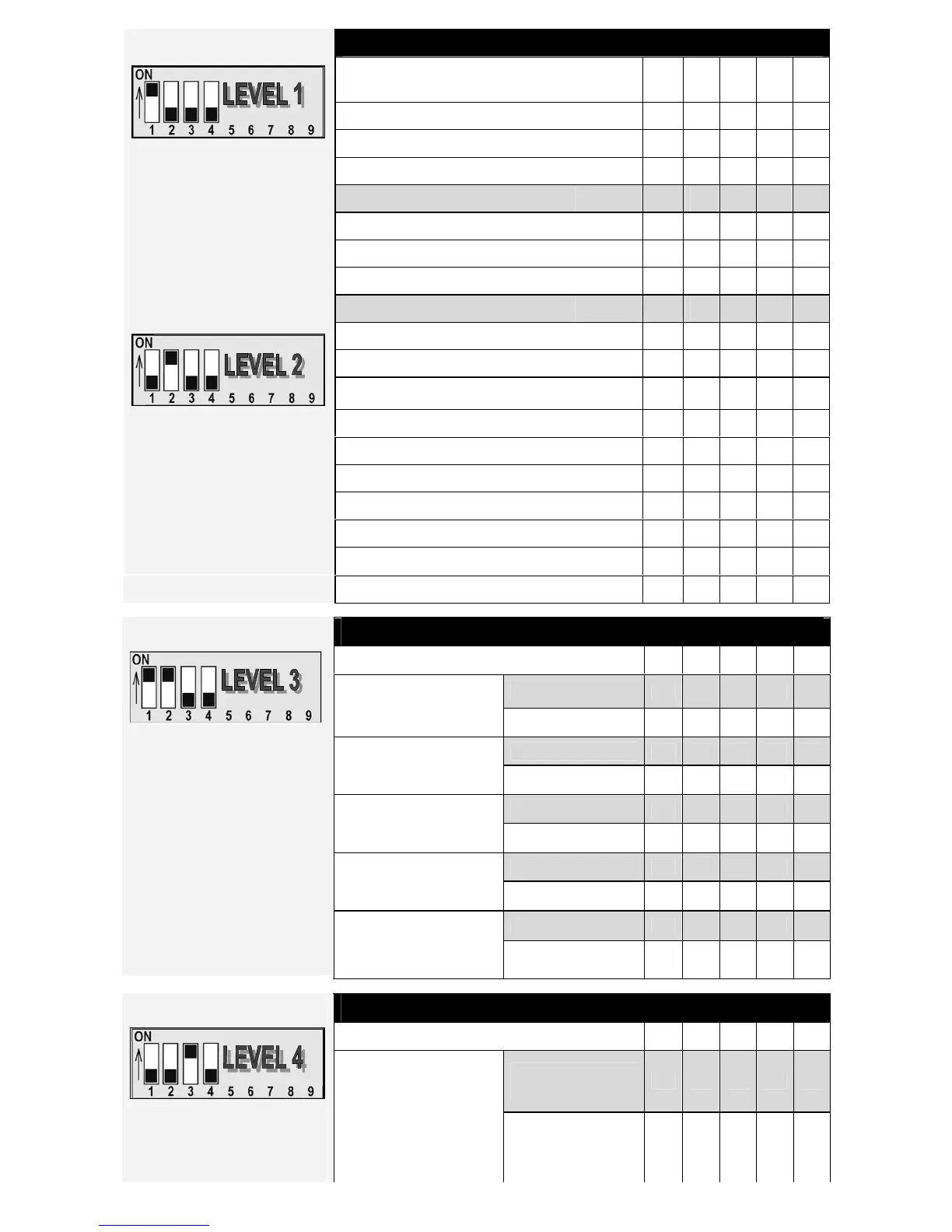

ACCESSORY & PARKING LIGHT RELAY
STAGE 2 - LEVEL 1 AND 2
DEFAULT
LEVEL
5 6 7 8 9
Pulse Before Start
Pulse After Shutdown
Activated While Running
Parking Lights 2
Pulse After Startup
Pulse on 2nd Unlock
Ignition
Accessory (not available on P4-3) 1
Starter
Trunk Release
Pulse after Ignition Off (1 min. duration)
Dome Light
Horn
Utility 1
Utility 2
Utility 3 (1 second fixed time)
STAGE 2
Accessory Output
P4 Connector, Pin 2
Default setting:
Accessory
Parking Light Output
P4 Connector, Pin 3
Default setting:
Parking Light
Note: The « Accessory » option
is not available on this output.
Utility 4 (1 second fixed time)
Deactivated
MISCELLANEOUS CONFIGURATIONS
STAGE 2 - LEVEL 3 5 6 7 8 9
Enabled
Start confirmation
on demand
Disabled
Horn
2
nd
Lock confirmation type
Siren
Disabled
Turbo Mode
Enabled
1 minute
Turbo Mode runtime
2 minutes
Disabled
STAGE 2
Default settings:
Start confirmation
on demand: Enable
2
nd
Lock confirmation with Horn
Turbo Mode: Disable
Dome light activation
when engine stop: Disable
Dome light activation
when engine is stopped
(by the Key)
Enabled
MISCELLANEOUS CONFIGURATIONS (2
ND
PART)
STAGE 2 - LEVEL 4 5 6 7 8 9
Alarm, Antitheft and
Manual Sequence
STAGE 2
Default setting:
P9 LED output indicate the status
of: the Alarm, Anti-theft and
Manual Sequence
P9 LED output indicates
the status of:
Safety Sequence
Only
