ASURITY CP-22LP - Level Unit; Outlet Connections

ASURITY
TM
CONDENSATE MANAGEMENT PAGE
6
INSTALLATION (continued)

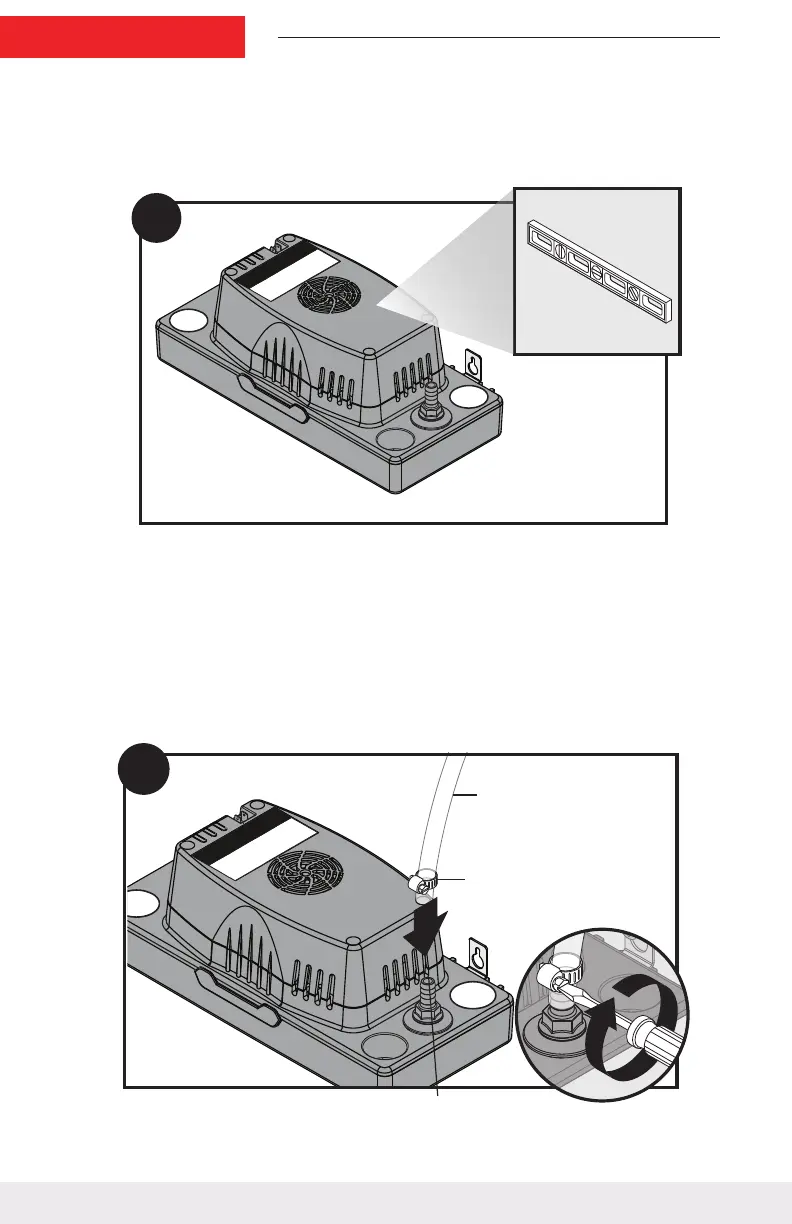

2. LEVEL UNIT
Ensure that condensate pump is level.
OUTLET CONNECTIONS
3. INSTALL OUTLET TUBE CONNECTION
Attach plastic tubing to check valve and secure with hose clamp. Route
tubing up and away from condensate pump (avoid compressing or
kinking tubing).
2
2
3/8" Clear Vinyl
Plastic Tubing
5/8" Hose Clamp
Check Valve
3
1
