www.diversitech.com | 800.995.2222 PAGE 7
INSTALLATION (continued)

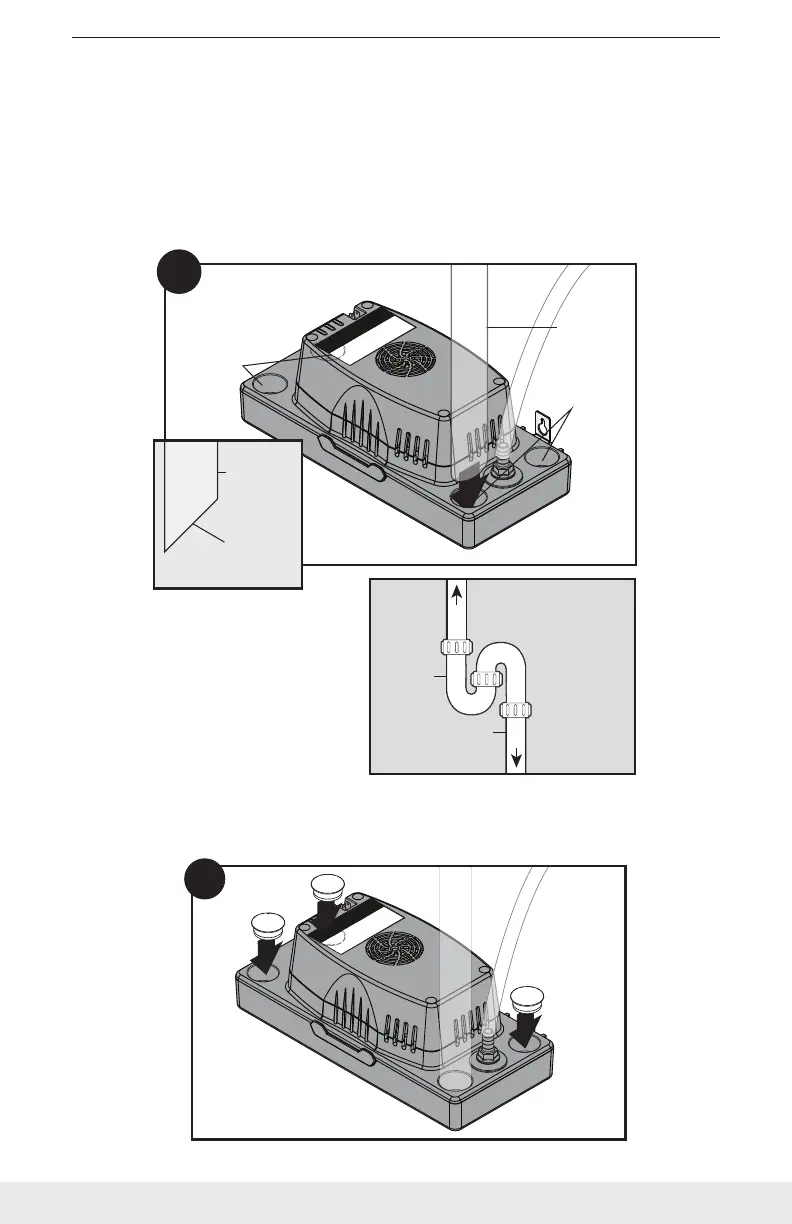

INLET CONNECTIONS
4. INSTALL INLET TUBE CONNECTIONS
Install condensate drain tubing into one of the four inlet holes, making
sure tubing is straight.
If installing to a humidier, a
“P” trap should be used.
INLET COVERS
5. INSTALL INLET COVERS
Insert inlet covers in remaining condensate pump inlet holes.
Inlet Holes
Inlet Tubing
Inlet Holes
45˚Angle
Inlet Tubing
4
To Condensate
Pump
“P” Trap
Condensate
Drain Tubing
To Humidifier
5
