ASURITY CP-22LP - Safety Switch Connection

ASURITY
TM
CONDENSATE MANAGEMENT PAGE
8
INSTALLATION (continued)

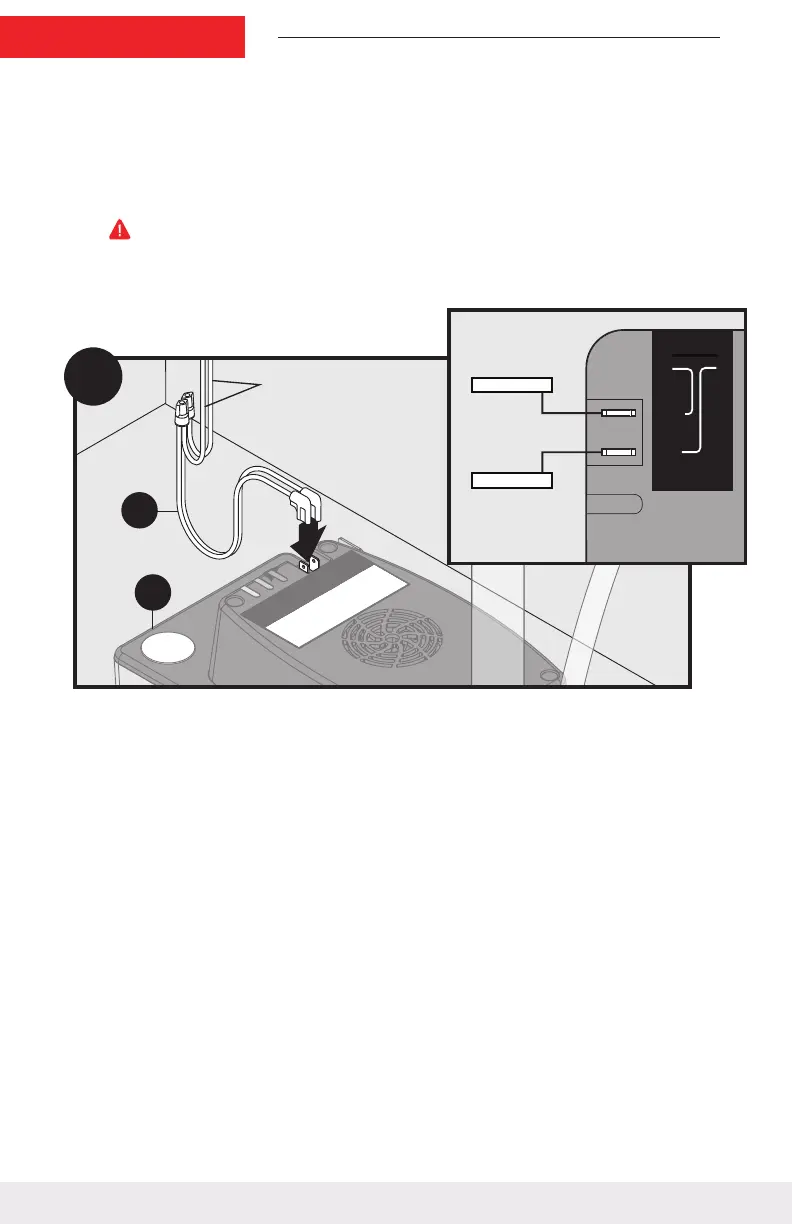

6. SAFETY SWITCH CONNECTION
Connect overow safety switch terminals as shown in wiring diagram.
WARNING: RISK OF ELECTRIC SHOCK
Ensure that power to appliance and pump is shut o before
attempting this step! Failure to follow these warnings will void the
warranty and could result in a fatal electric shock.
SYSTEM
T-STAT
Com
Run
OVERFLOW SWITCH
24V 1A Max
Shut-Down Circuit*
Shut-Down Circuit*
*Overflow Switch is normally
closed and opens when a high
water level is detected.
Connect this circuit in series
with the appropriate 24V
shut-down circuit for the
appliance.
A
C
6
