ASUS A7V User’s Manual 65
4. BIOS SETUP
4. BIOS SETUP
I/O Device Config
Onboard Parallel Port [378H/IRQ7]
This field sets the address of the onboard parallel port connector. If you disable this
feature, Parallel Port Mode and ECP DMA Select configurations will not be avail-
able. Configuration options: [Disabled] [378H/IRQ7] [278H/IRQ5]
Parallel Port Mode [ECP+EPP]
This field allows you to set the operation mode of the parallel port. [Normal] allows
normal-speed operation but in one direction only; [EPP] allows bidirectional parallel
port operation; [ECP] allows the parallel port to operate in bidirectional DMA mode;
[ECP+EPP] allows normal speed operation in a two-way mode. Configuration op-
tions: [Normal] [ECP] [EPP] [ECP+EPP]
ECP DMA Select [3]
This field allows you to configure the parallel port DMA channel for the selected ECP
mode. This selection is available only if you select [ECP] or [ECP+EPP] in Parallel
Port Mode above. Configuration options: [1] [3]

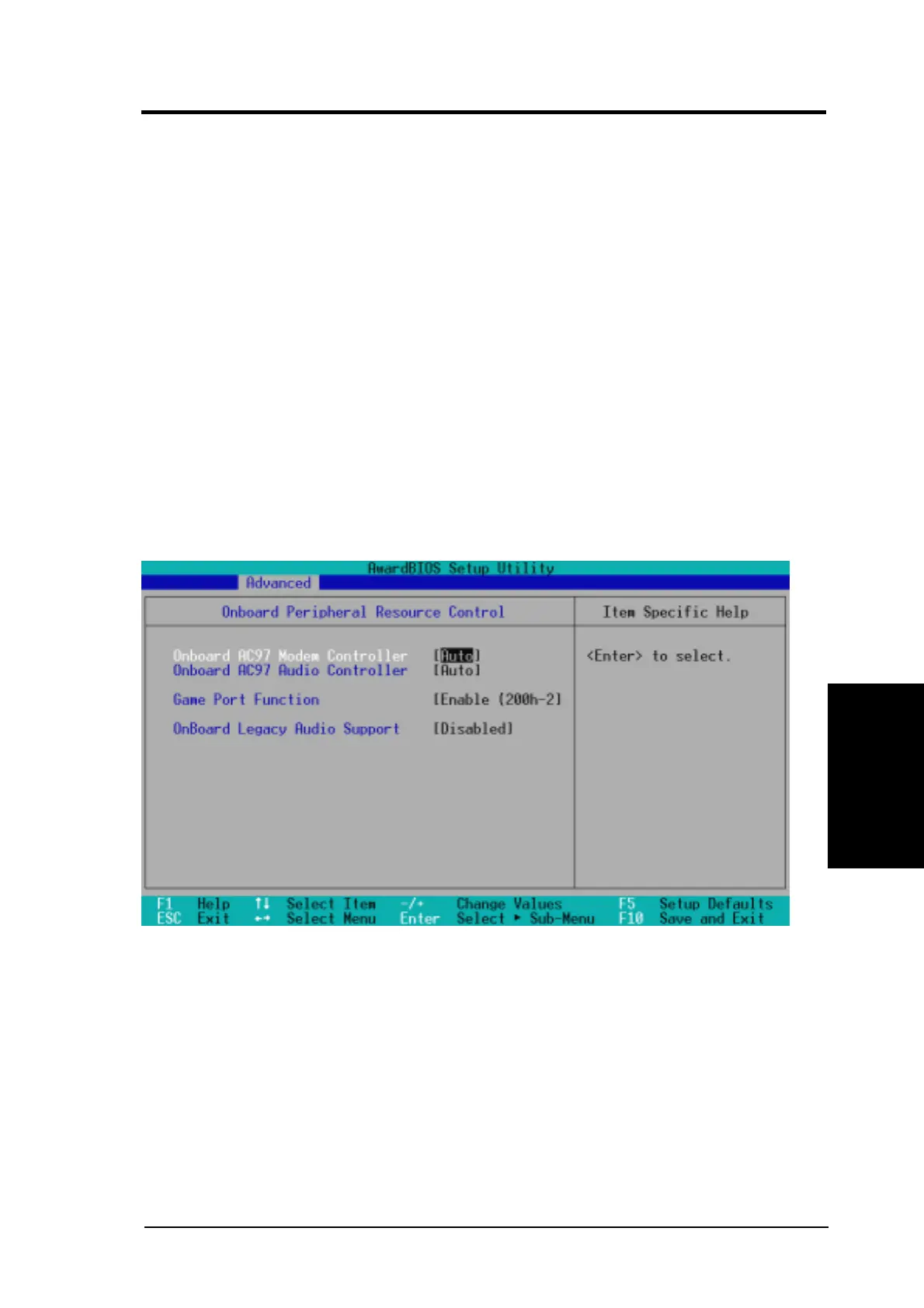

Onboard Peripheral Resource Control
Onboard AC97 Modem Controller [Auto]
Onboard AC97 Audio Controller [Auto]
[Auto] allows the motherboard’s BIOS to detect whether you are using any
modem/audio device. If a modem/audio device is detected, the onboard
modem/audio controller will be enabled; if no modem/audio device is de-
tected, the onboard modem/audio controller will be disabled. If you have
conflicts with the onboard modem/audio controller, you may set the appro-
priate field to [Disabled]. Configuration options: [Disabled] [Auto]
