Asus B75M-PLUS - Intel B75 Serial ATA 3.0 Gb;S Connectors (7-Pin SATA3 G_1~5 [Blue]); Intel B75 Serial ATA 6.0 Gb;S Connector (7-Pin SATA6 G_1 [Gray])

1-18
Chapter 1: Product introduction
6. Intel
®

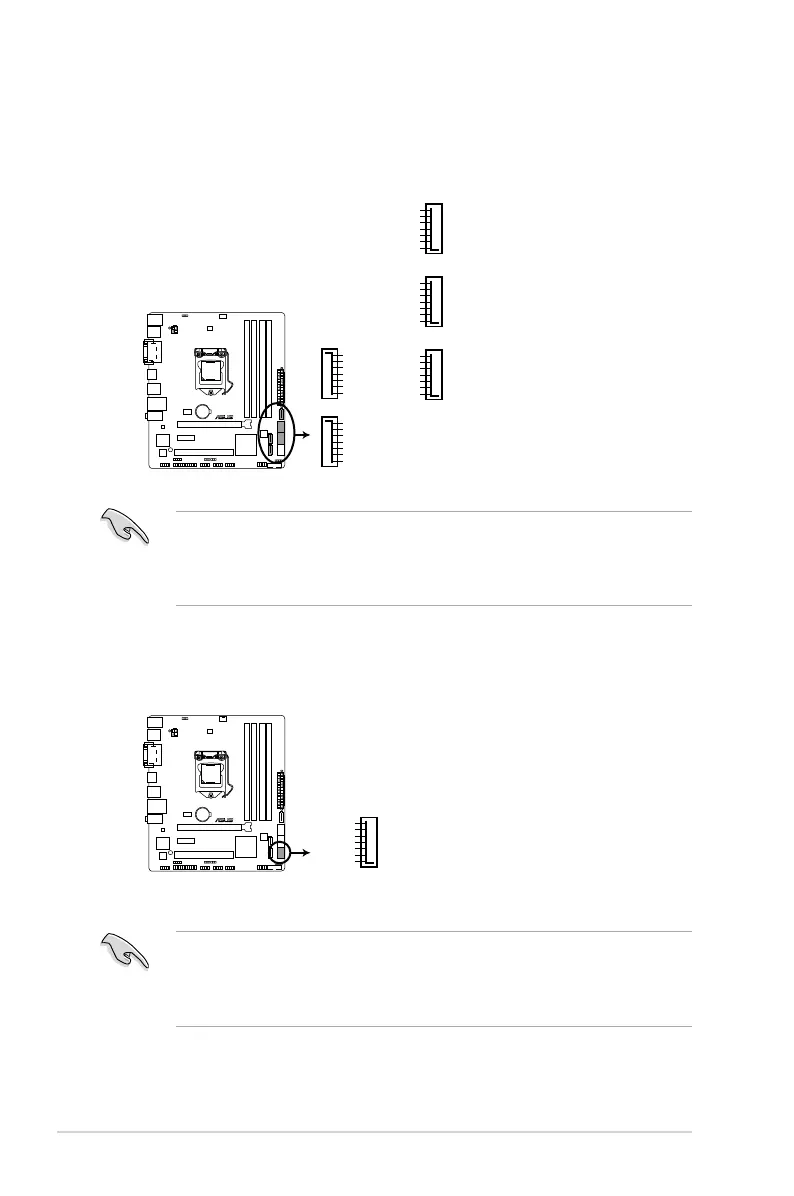

B75 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1~5 [blue])
These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical drives via
Serial ATA 3.0 Gb/s signal cables.
• You must install Windows. XP
®
Service Pack 3 or later version before using Serial ATA
hard disk drives.
• When using hot-plug and NCQ, set the SATA Mode Selection item in the BIOS to [AHCI].
See section 2.5.3 SATA Conguration for details.
7. Intel
®
B75 Serial ATA 6.0Gb/s connector (7-pin SATA6G_1 [gray])
This connector connects to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0 Gb/s
signal cables.
• You must install Windows. XP Service Pack 3 or later version before using Serial ATA
hard disk drives.
• When using hot-plug and NCQ, set the SATA Mode Selection item in the BIOS to [AHCI].
See section 2.5.3 SATA Conguration for details.
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXN1
RSATA_RXP1
GND
GND
RSATA_RXP4
RSATA_RXN4
GND
RSATA_TXN4
RSATA_TXP4
GND
SATA3G_1
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXN2
RSATA_RXP2
GND
SATA3G_2
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXN3
RSATA_RXP3
GND
SATA3G_3
SATA3G_4
GND
RSATA_RXP5
RSATA_RXN5
GND
RSATA_TXN5
RSATA_TXP5
GND
SATA3G_5
B75M-PLUS
B75M-PLUS Intel
®
SATA 3.0Gb/s connectors
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXN1
RSATA_RXP1
GND
SATA6G_1
B75M-PLUS
B75M-PLUS Intel
®
SATA 6.0Gb/s connectors
