ASUS B75M-PLUS
1-21
1.9 Onboard LEDs
1. Standby Power LED
The motherboard comes with a standby power LED that lights up to indicate that the
system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should
shut down the system and unplug the power cable before removing or plugging in any
motherboard component. The illustration below shows the location of the onboard LED.

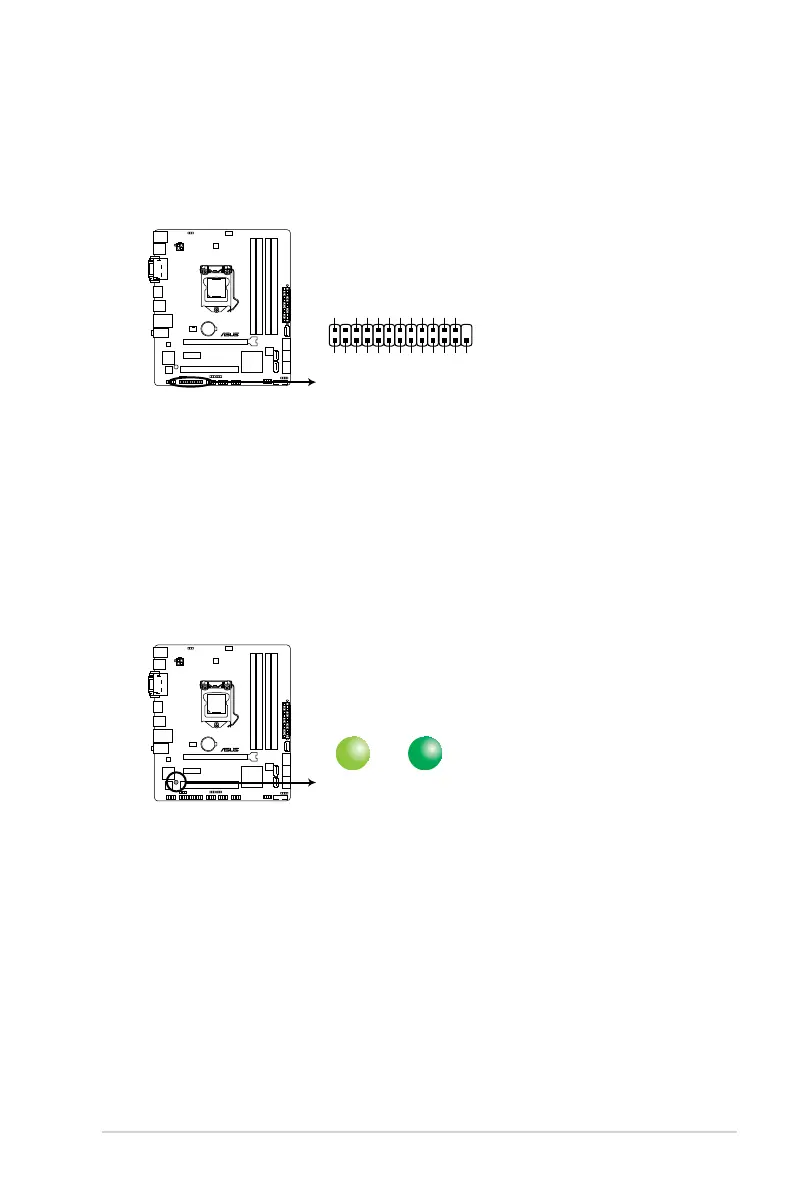

12. LPT connector (26-1 pin LPT)
The LPT (Line Printing Terminal) connector supports devices such as a printer. LPT
standardizes as IEEE 1284, which is the parallel port interface on IBM PC-compatible
computers.
B75M-PLUS Parallel Port Connector
B75M-PLUS
PIN 1
LPT
STB#
PD0 PD1 PD2 PD3 PD4 PD5 PD6 PD7
ACK#
BUSY
PE
SLCT
AFD ERR# INIT# SLIN# GND GND GND GND GND GND GND GND
SB_PWR
ON
Standby Power
Powered Off
OFF
B75M-PLUS
B75M-PLUS Onboard LED
