Disassembly procedure
2 - 9

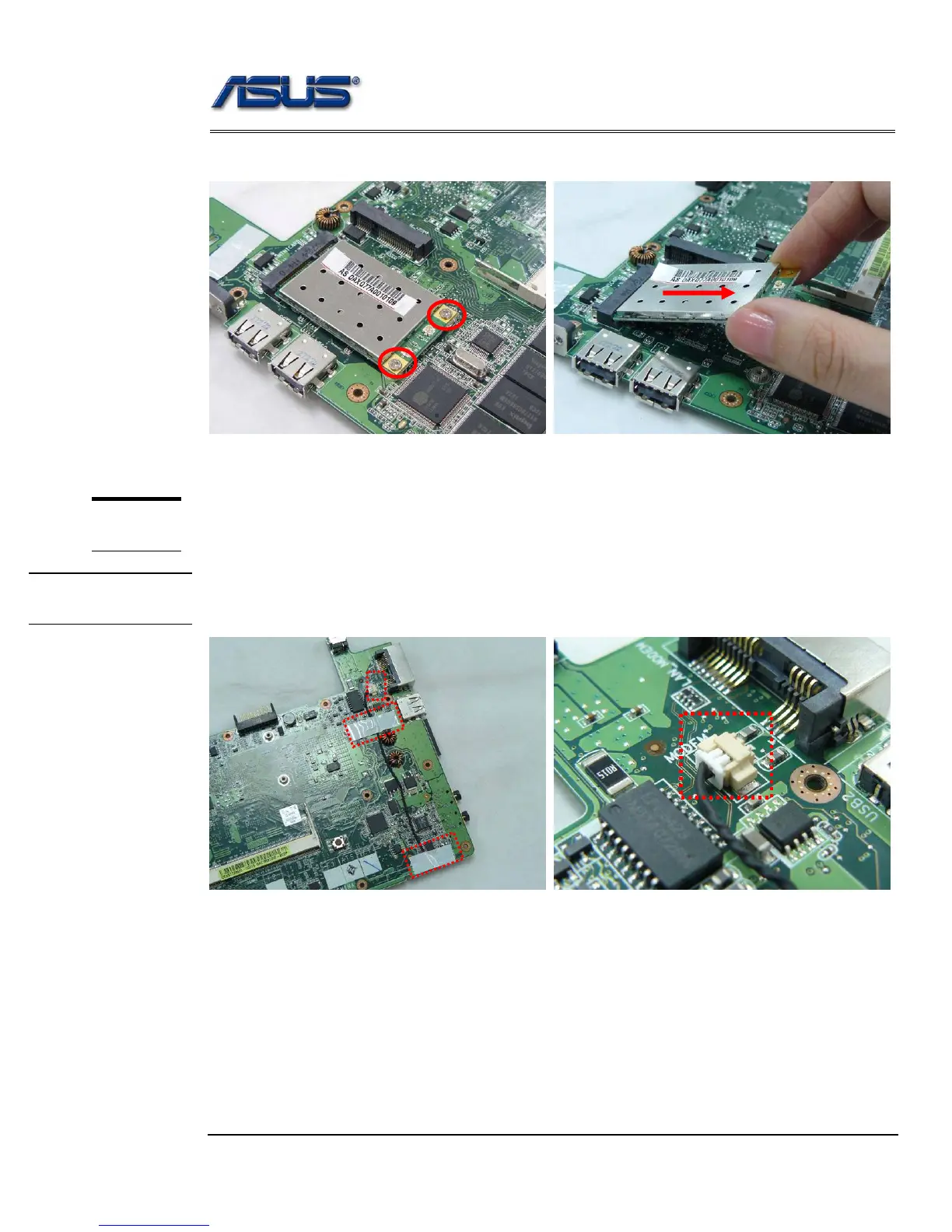

6. Remove 2 screws (M2*4) on the WLAN module to pop up the module at 30 degree angles and
then remove it at that angle.
Motherboard
The illustrations below show how to disassemble and remove the Motherboard.
Removing Motherboard
1. Tear off 2 pieces of tape fixing the Modem cable and disconnect the Modem cable from
mother board.
MOTHER
BOARD
MOTHERBOARD
REMOVAL
