Asus F1A55-M LX Series User Manual

F1A55-M LX PLUS
1.5 Motherboard overview
1.5.1 Placement direction
When installing the motherboard, ensure that you place it into the chassis in the correct
orientation. The edge with external ports goes to the rear part of the chassis as indicated in
the image below.
DO NOT overtighten the screws! Doing so can damage the motherboard.
1.5.2 Screw holes

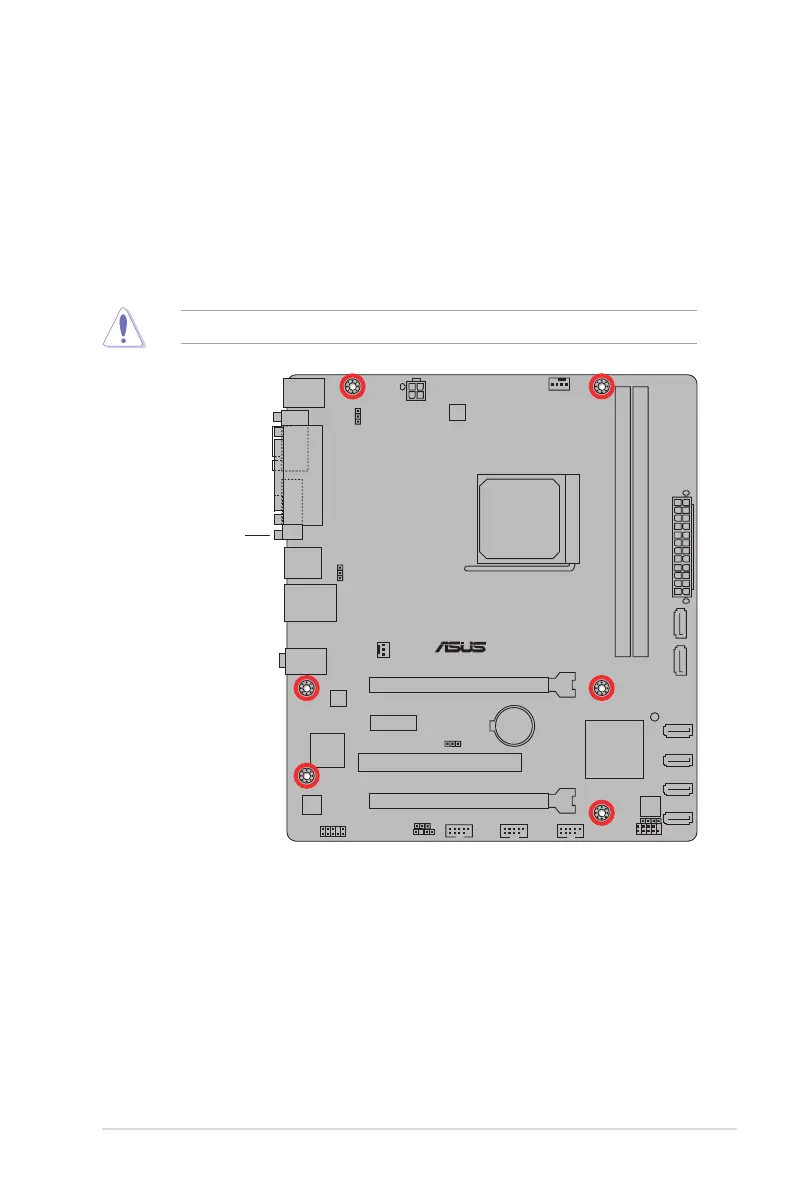

Place six screws into the holes indicated by circles to secure the motherboard to the chassis.
Place this side towards
the rear of the chassis.
ASUS F1A55-M LX Series 1-5

Asus F1A55-M LX Series Specifications

General

Form Factor	Micro ATX
CPU Socket	FM1
Memory Type	DDR3
SATA Ports	6 x SATA 3Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Audio Chipset	Realtek ALC887
LAN Speed	10/100/1000 Mbps
Memory Standard	DDR3 1866/1600/1333/1066
Expansion Slots	1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1, 1 x PCI
LAN	Realtek 8111E
Video Outputs	VGA
PS/2 Ports	1 x keyboard/mouse combo port
RAID Support	RAID 0, 1, 10
