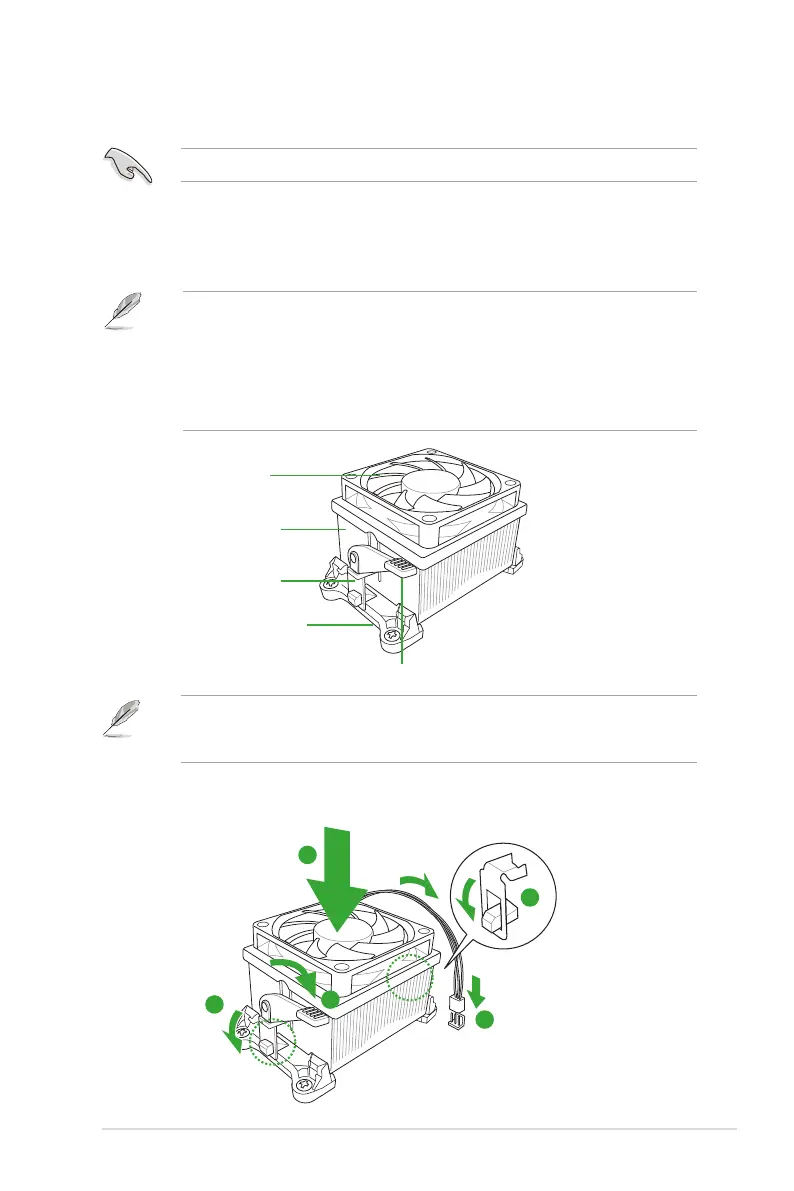

1.6.2 Installing the heatsink and fan
Ensure that you use only AMD-certied heatsink and fan assembly.
To install the CPU heatsink and fan:
1. Place the heatsink on top of the installed CPU, ensuring that the heatsink ts properly
on the retention module base.
The retention module base is already installed on the motherboard upon purchase.
You do not have to remove the retention module base when installing the CPU or
installing other motherboard components.
If you purchased a separate CPU heatsink and fan assembly, ensure that a Thermal
Interface Material is properly applied to the CPU heatsink or CPU before you install the
heatsink and fan assembly.
Your boxed CPU heatsink and fan assembly should come with installation instructions for
the CPU, heatsink, and the retention mechanism. If the instructions in this section do not
match the CPU documentation, follow the latter.
2. Attach one end of the retention bracket to the retention module base.
CPU Fan
CPU Heatsink
Retention bracket
Retention bracket lock
Retention Module Base
ASUS F1A55-M LX Series 1-9

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Asus F1A55-M LX Series and is the answer not in the manual?

Asus F1A55-M LX Series Specifications

General IconGeneral
Form FactorMicro ATX
CPU SocketFM1
Memory TypeDDR3
SATA Ports6 x SATA 3Gb/s
AudioRealtek ALC887 8-Channel High Definition Audio CODEC
Audio ChipsetRealtek ALC887
LAN Speed10/100/1000 Mbps
Memory StandardDDR3 1866/1600/1333/1066
Expansion Slots1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1, 1 x PCI
LANRealtek 8111E
Video OutputsVGA
PS/2 Ports1 x keyboard/mouse combo port
RAID SupportRAID 0, 1, 10
