Asus F1A55-M LX Series User Manual

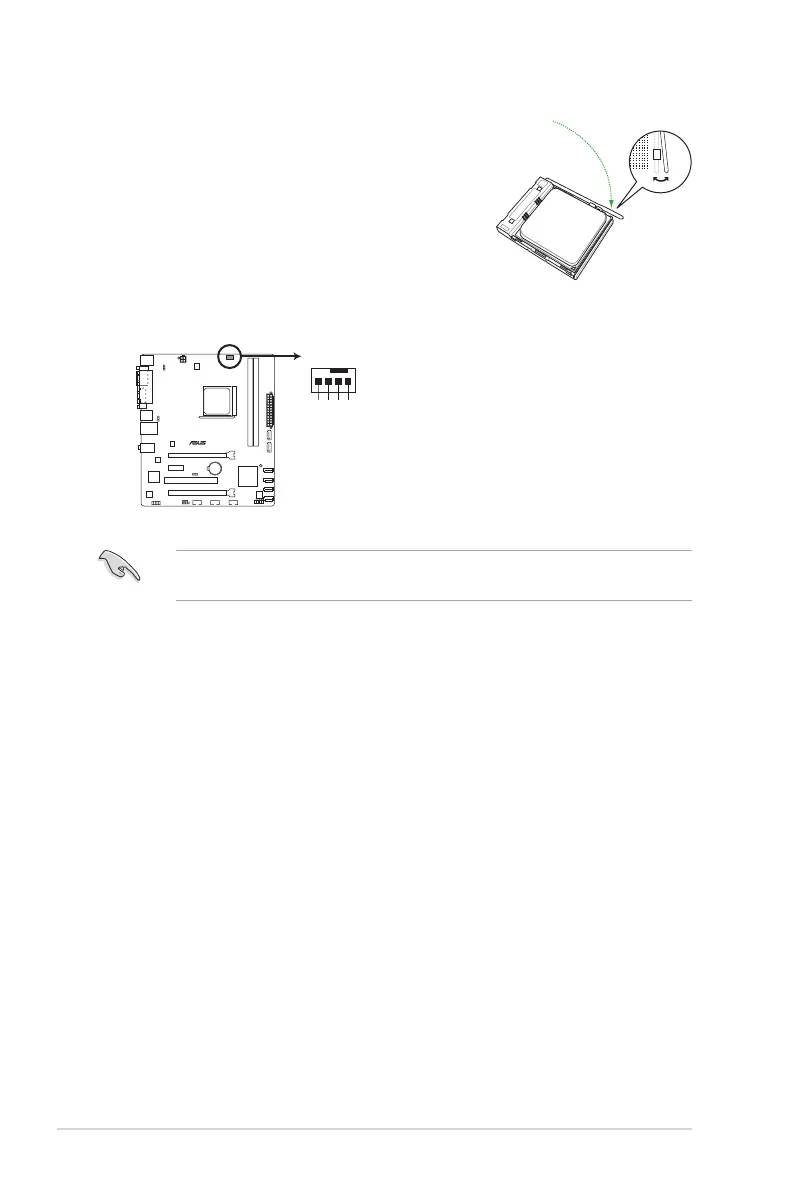

5. When the APU is in place, push down the socket
lever to secure the APU. The lever clicks on the side
tab to indicate that it is locked.
6. Install a APU heatsink and fan following the
instructions that comes with the heatsink package.
You can also refer to section 1.6.2 Installing
heatsink and fan for instructions.
7. Connect the CPU fan cable to the CPU_FAN connector on the motherboard.
DO NOT forget to connect the CPU fan connector! Hardware monitoring errors can occur if
you fail to plug this connector.
CPU_FAN
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
F1A55-M LX PLUS
F1A55-M LX PLUS CPU fan connecto
r
Chapter 1: Product introduction1-8

Asus F1A55-M LX Series Specifications

General

Form Factor	Micro ATX
CPU Socket	FM1
Memory Type	DDR3
SATA Ports	6 x SATA 3Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Audio Chipset	Realtek ALC887
LAN Speed	10/100/1000 Mbps
Memory Standard	DDR3 1866/1600/1333/1066
Expansion Slots	1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1, 1 x PCI
LAN	Realtek 8111E
Video Outputs	VGA
PS/2 Ports	1 x keyboard/mouse combo port
RAID Support	RAID 0, 1, 10
