Asus F1A55-M LX Series User Manual

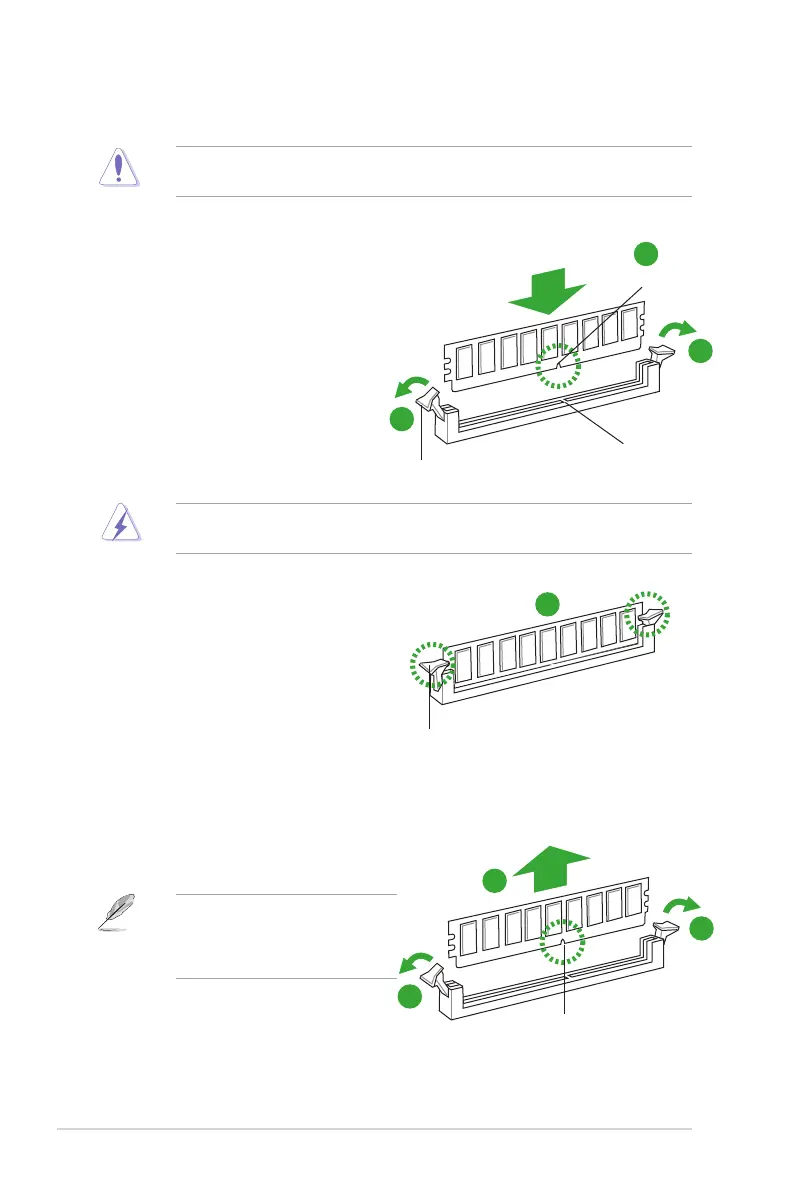

1.7.3 Installing a DIMM
Unplug the power supply before adding or removing DIMMs or other system components.
Failure to do so can cause severe damage to both the motherboard and the components.
1. Press the retaining clips outward to
unlock a DIMM socket.
2. Align a DIMM on the socket such that
the notch on the DIMM matches the
DIMM slot key on the socket.
Unlocked retaining clip
1
DIMM notch
2
1
A DIMM is keyed with a notch so that it ts in only one direction. DO NOT force a DIMM into
a socket in the wrong direction to avoid damaging the DIMM.
3. Firmly insert the DIMM into the socket
until the retaining clips snap back in place
and the DIMM is properly seated.
Locked Retaining Clip
3
1.7.4 Removing a DIMM
To remove a DIMM:
1. Simultaneously press the retaining clips
outward to unlock the DIMM.
2. Remove the DIMM from the socket.
Support the DIMM lightly with your
ngers when pressing the retaining
clips. The DIMM might get damaged
when it ips out with extra force.
DIMM notch
1
1
2
DIMM slot key
Chapter 1: Product introduction1-16

Asus F1A55-M LX Series Specifications

General

Form Factor	Micro ATX
CPU Socket	FM1
Memory Type	DDR3
SATA Ports	6 x SATA 3Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Audio Chipset	Realtek ALC887
LAN Speed	10/100/1000 Mbps
Memory Standard	DDR3 1866/1600/1333/1066
Expansion Slots	1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1, 1 x PCI
LAN	Realtek 8111E
Video Outputs	VGA
PS/2 Ports	1 x keyboard/mouse combo port
RAID Support	RAID 0, 1, 10
