8. USB 2.0 connectors (10-1 pin USB78, USB910, USB1112)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specication that supports up to
480Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB 2.0 module is purchased separately.

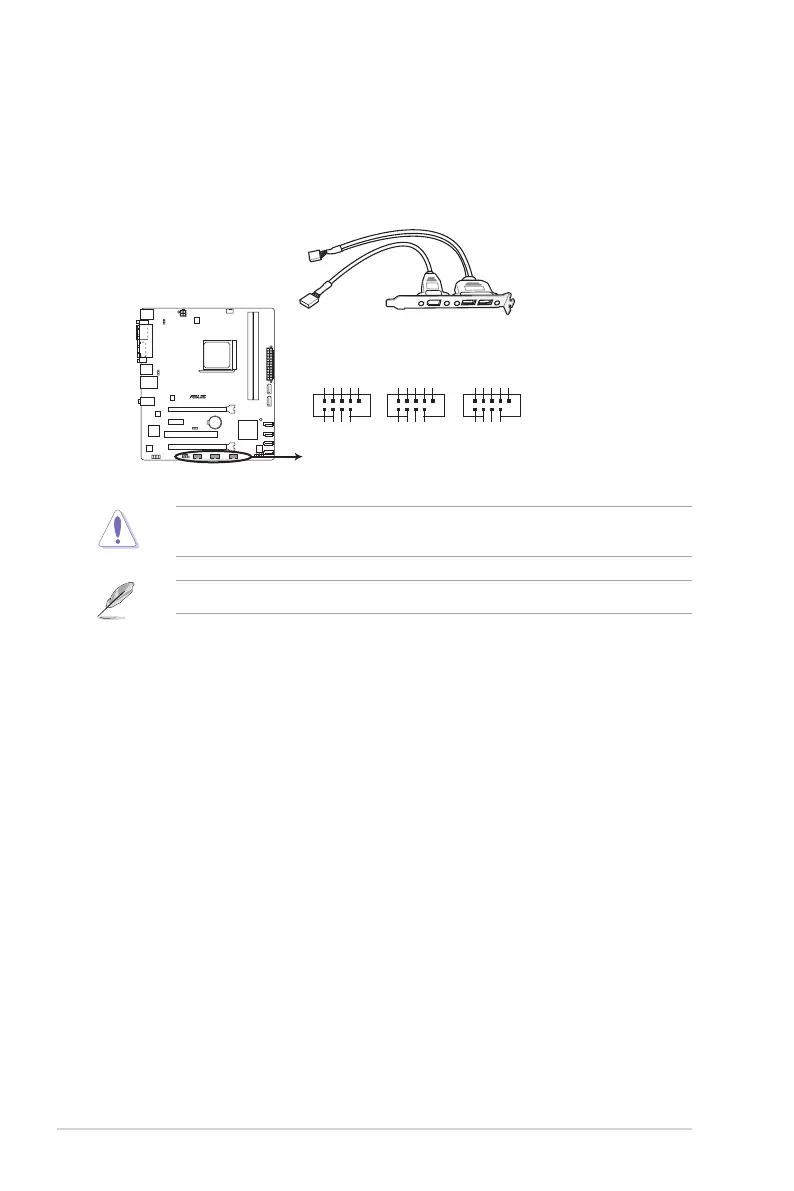

F1A55-M LX PLUS
F1A55-M LX PLUS USB2.0 connectors
USB+5V USB_P10- USB_P10+ GND NC
USB+5V
USB_P9-
USB_P9+
GND
USB910
PIN 1
USB+5V USB_P12- USB_P12+ GND NC
USB+5V
USB_P11-
USB_P11+
GND
USB1112
PIN 1
USB+5V USB_P8- USB_P8+ GND NC
USB+5V
USB_P7-
USB_P7+
GND
USB78
PIN 1
Chapter 1: Product introduction1-26

Asus F1A55-M LX Series Specifications

General

Form Factor	Micro ATX
CPU Socket	FM1
Memory Type	DDR3
SATA Ports	6 x SATA 3Gb/s
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Audio Chipset	Realtek ALC887
LAN Speed	10/100/1000 Mbps
Memory Standard	DDR3 1866/1600/1333/1066
Expansion Slots	1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1, 1 x PCI
LAN	Realtek 8111E
Video Outputs	VGA
PS/2 Ports	1 x keyboard/mouse combo port
RAID Support	RAID 0, 1, 10
