Installation manual
English

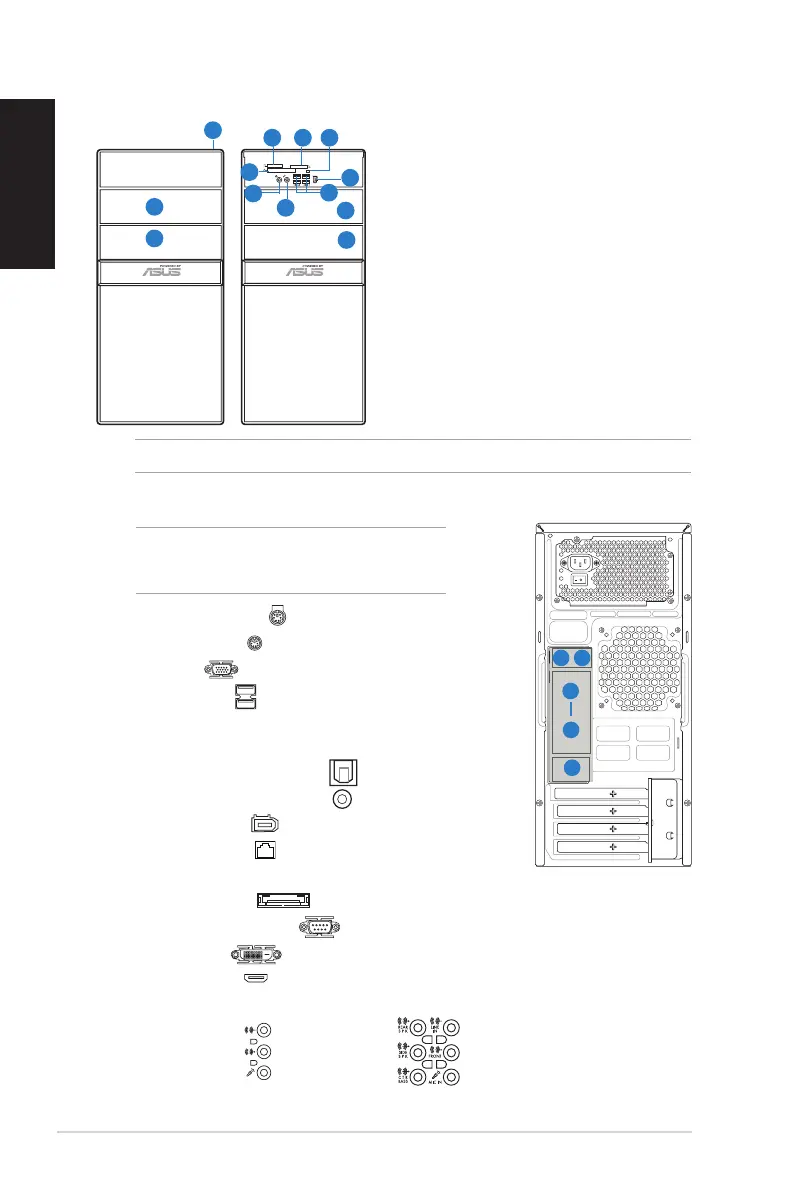

Rear panel features
Front panel features
NOTE: The rear panel ports and their locations may
vary, depending on the model of your system. For
detailed descriptions, refer to the system User Guide.
1
3
2
3
54
7
6
2
8
9
10
11
NOTE: * Some models may have only two USB 2.0 ports and/or no IEEE 1394a port.
1. PS/2 keyboard port ( )
2. PS/2 mouse port ( )
3. VGA port ( )
4. USB 2.0 ports ( )
(some models may have four rear USB
2.0 ports)
5. One of the following ports:
• Optical S/PDIF Out port ( )
• Coaxial S/PDIF Out port ( )
6. IEEE 1394a port ( )
(some models only)
7. LAN (RJ-45) port ( )
8. One of the following ports:
• E-SATA port ( )
• Serial (COM1) port ( )
• DVI port ( )
• HDMI port ( )
• 6-channel • 8-channel
1. Power button
2. Optical drive bay cover
3. 5.25-inch drive bay cover
4. MemoryStick
®
/Memory Stick Pro™
card slot
5. Secure Digital™/Multimedia Card slot
6. Card reader LED
7. CompactFlash
®
/Microdrive™ card slot
8. Headphone port
9. Microphone port
10. USB 2.0 ports*
11. IEEE1394a port*
1 2
3
8
9
