Installation manual
English

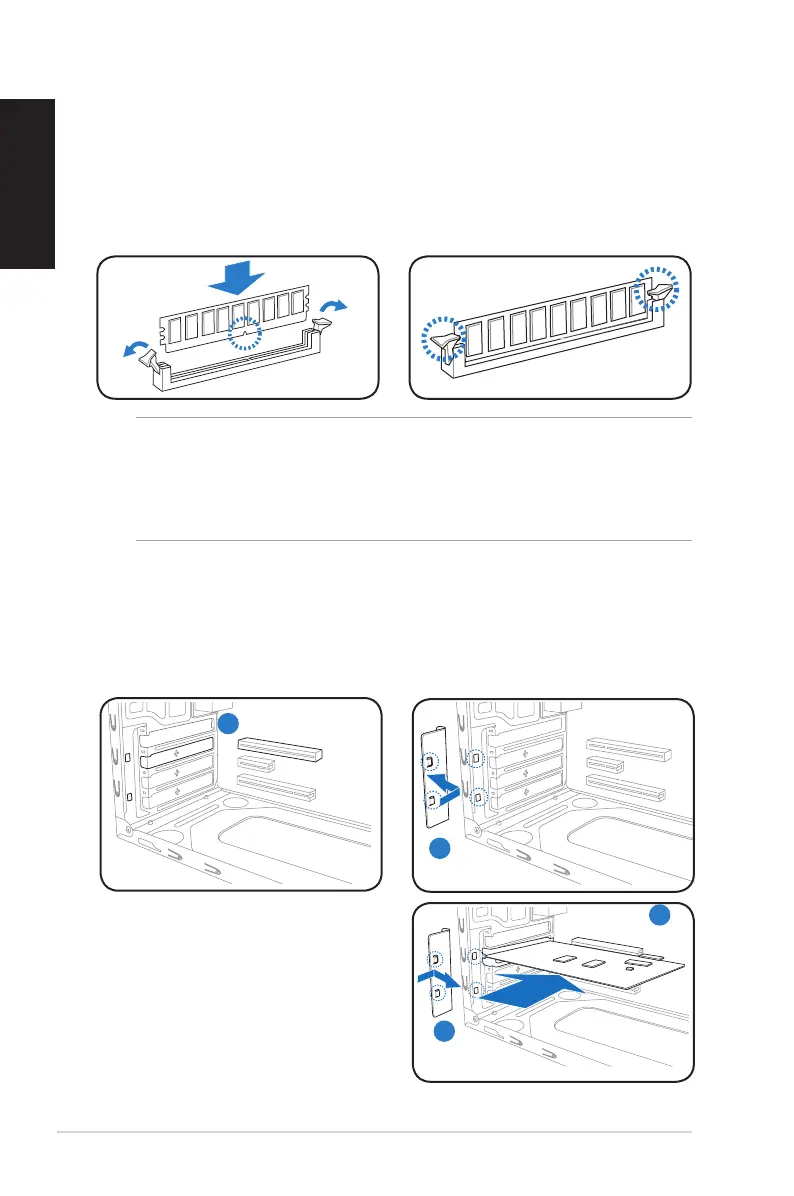

Installing an expansion card
2. Remove the metal bracket lock.1. Remove the metal cover opposite the
slot that you intend to use.
3. Insert the card connector to the slot,

place.
4. Replace the metal bracket lock.
Installing a DIMM
1. Locate the DIMM sockets in the motherboard.
2. Unlock a DIMM socket by pressing the retaining clips outward.
3. Align a DIMM on the socket such that the notch on the DIMM matches the break on the
socket.
4. Push the DIMM to the socket until the retaining clips snap inward.
CAUTION:
Unplug the power supply before adding or removing DIMMs. Failure to do so may
cause damage to the motherboard and/or components.
 
Do not force a DIMM into a socket to avoid damaging the DIMM.
1
2
3
4
