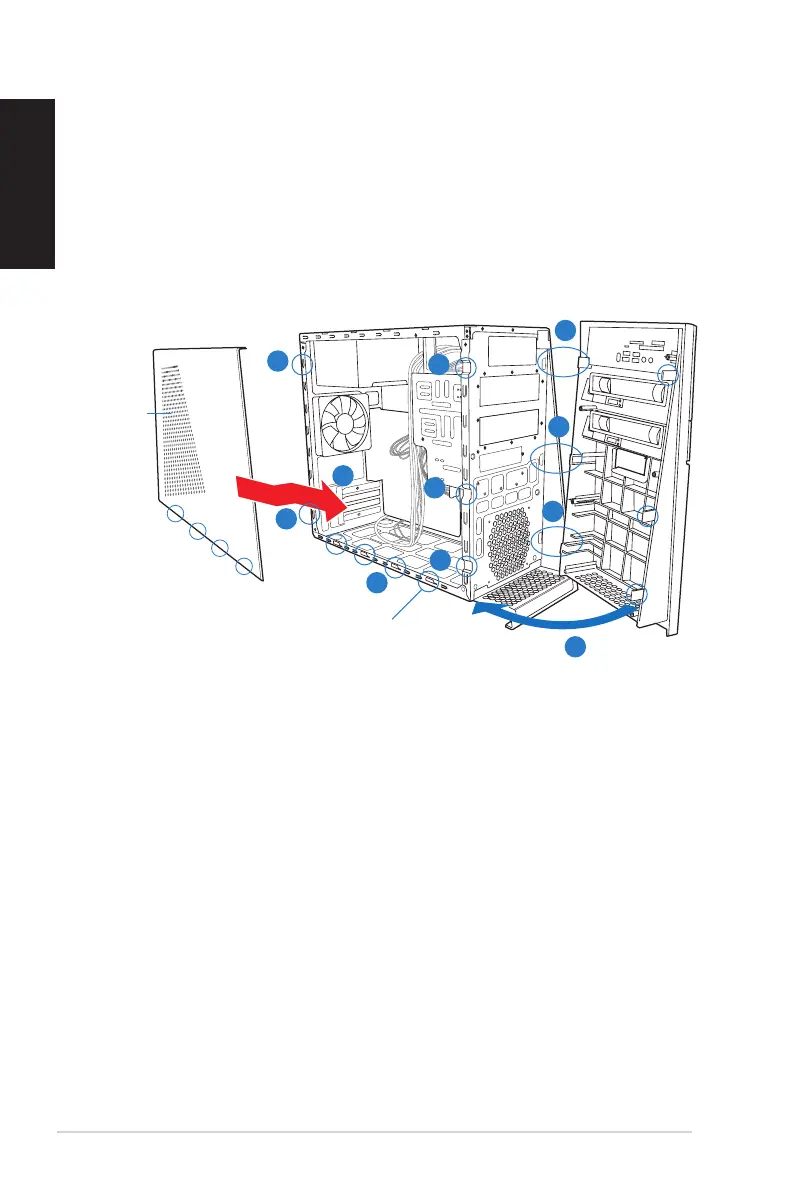

Reinstalling the front panel assembly and side cover
To reinstall the front panel assembly and side cover:
1. Insert the front panel assembly hinge-like tabs to the holes on the right side of the
chassis.
2. Swing the front panel assembly to the left, then insert the hooks to the chassis until the
3. Insert the six side cover hooks into the chassis tab holes .
5. Secure the cover with two screws you removed earlier.
Air duct
5
5
3
4
1
2
1
1
2
2
2
Chassis tab holes
