Installation manual
English
Hard disk drive

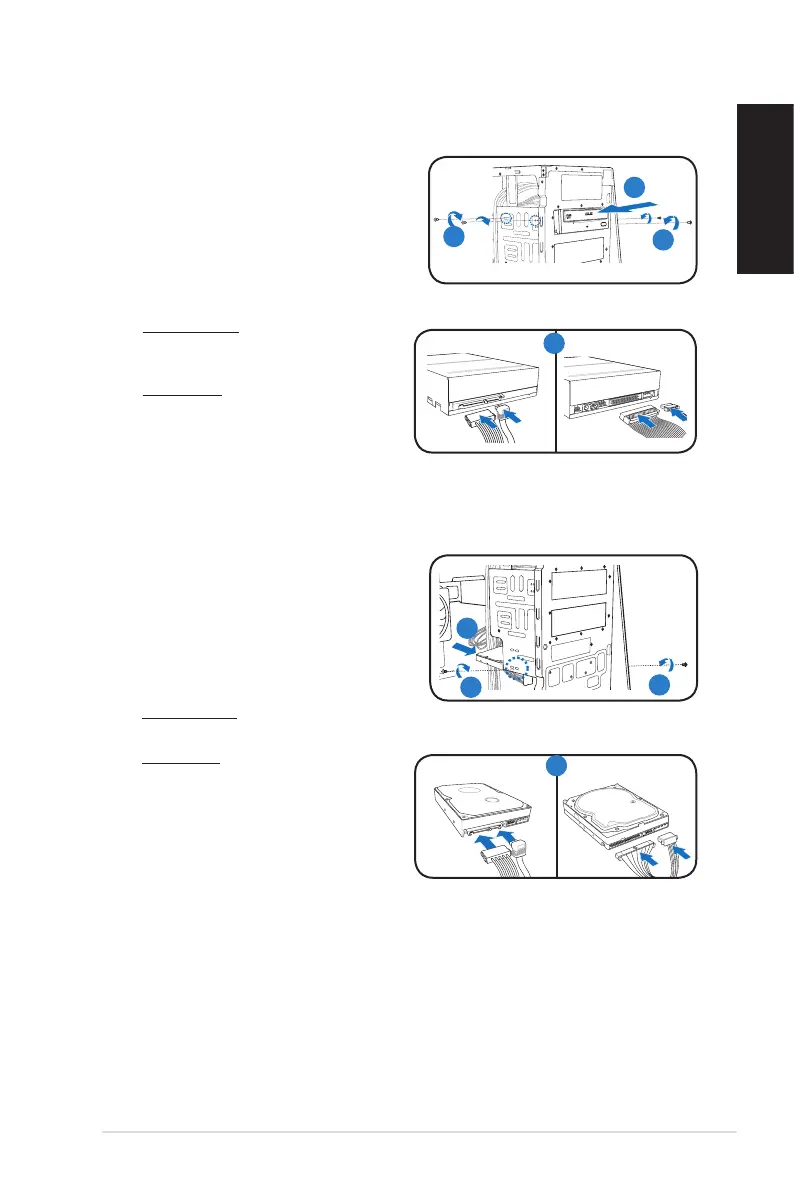

1. Locate the 3.5-inch hard disk drive bay.
2. Insert the hard disk drive to the
3.5-inch hard disk drive bay, then carefully
push the drive until its screw holes align
with the holes on the bracket.
3. Secure the hard disk drive with two screws
on both sides of the bay.
4. For SATA HDD: Connect the SATA signal
and power plugs to the connectors at the back of the drive.
For IDE HDD: Connect the IDE and power
plugs to the connectors at the back of the
drive.
Installing storage drives
Optical drive
1. Place the chassis upright, then remove the
upper 5.25” drive bay metal plate cover.
2. Insert the optical drive to the bay, then
carefully push the drive until its screw holes
align with the holes on the bay.
3. Secure the optical drive with two screws on
both sides of the bay.
4. For SATA ODD: Connect the SATA
signal and power plugs to the
connectors at the back of the drive.
For IDE ODD: Connect the IDE and power
plugs to the connectors at the back of the
drive.
2
3
3
3
3
2
SATA IDE
SATA IDE
4
4
