Asus H110I-PLUS D3 User Manual

ASUS H110I-PLUS D3
1-3

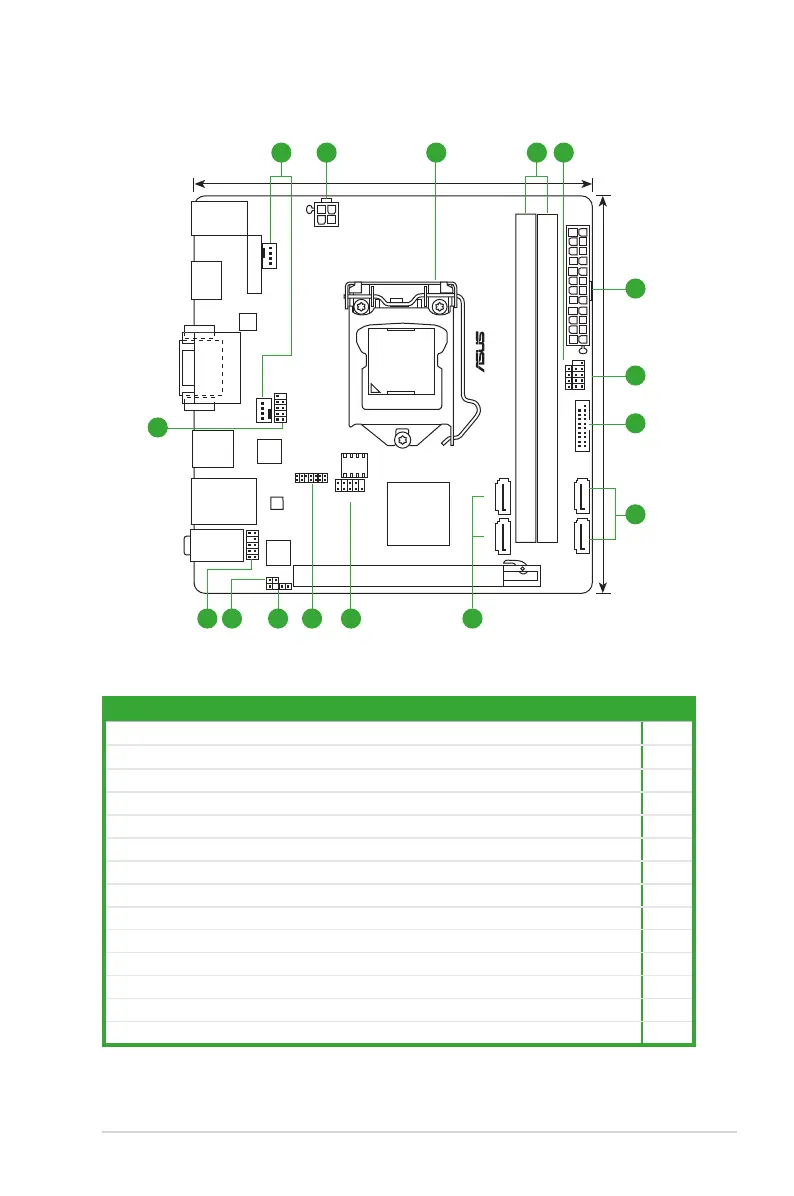

1.2.3 Motherboard layout
H110I-PLUS D3
Super
I/O
ALC
887
17.0cm(6.7in)
17.0cm(6.7in)
DDR3_DIMM_A1 (64bit, 240-pin module) DDR3_DIMM_B1 (64bit, 240-pin module)
EATX_PWR
AUDIO
AAFP
COM1
ASM
1442K
BATTERY
CPU_FAN
CHA_FAN
SATA6G_1SATA6G_2 SATA6G_4SATA6G_3
Intel
®
H110
PCIEX16
CLRTC
CHASSIS
SPEAKER
RTL
8111H
LAN_USB56
KBMS_USB78
DVI VGA
128Mb
BIOS
LGA1151
USB3_12
USB910
F_PANEL
ATX12V
TPM
USB3_34
HDMI
2
8
7
2
6
9101213 11
3
8
14
4 51
1.2.4 Layout contents
Connectors/Jumpers/Slots/LED Page
1.
CPUandchassisfanconnectors(4-pinCPU_FAN,4-pinCHA_FAN)
1-15
2.
ATXpowerconnectors(24-pinEATXPWR,4-pinATX12V)
1-17
3. Intel
®
LGA1151CPUsocket 1-4
4. DDR3DIMMslots 1-7
5. Speakerconnector(4-pinSPEAKER) 1-17
6. Systempanelconnector(10-1pinF_PANEL) 1-18
7. USB3.0connector(20-1pinUSB3_12) 1-16
8. SerialATA6.0Gb/sconnectors(7-pinSATA6G_1~4) 1-15
9. Serialportconnector(10-1pinCOM1) 1-14
10. TPMconnector(14-1pinTPM) 1-18
11. Chassis intrusion connector(4-1pinCHASSIS) 1-19
12. ClearRTCRAM(2-pinCLRTC) 1-11
13. Frontpanelaudioconnector(10-1pinAAFP) 1-14
14. USB2.0connector(10-1pinUSB910) 1-16

Asus H110I-PLUS D3 Specifications

General

Form Factor	Mini ITX
Chipset	Intel H110
CPU Socket	LGA 1151
Memory Type	DDR3
Memory Slots	2
Maximum Memory	32GB
PCIe x16 Slots	1
SATA Ports	4 x SATA 6Gb/s
M.2 Slots	1
USB 3.0 Ports	4
USB 2.0 Ports	6
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
Video Ports	HDMI, DVI-D
LAN	Realtek RTL8111H Gigabit LAN
