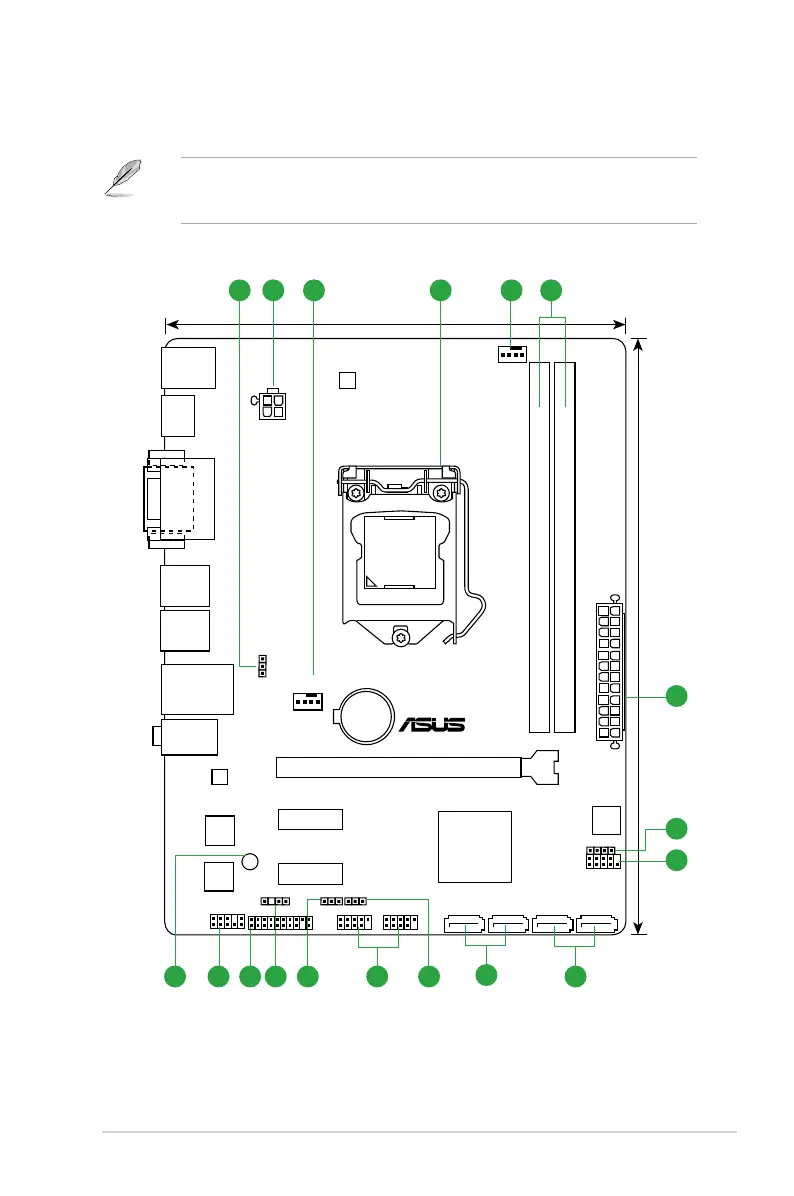

1.2.3 Motherboard layout
H81M-A
PCIEX16
PCIEX1_1
PCIEX1_2
SPEAKER
F_PANEL
CLRTC SPDIF_OUT
KB_USBPWB
USBPWF
USB910 USB1112
AAFP
ATX12V
EATXPWR
CPU_FAN
CHA_FAN
BATTERY
Super
I/O
ALC
887- VD2
RTL
8111G
DIGI
+VRM
64Mb
BIOS
SB_PWR
22.6cm(8.9in)
LGA1150
Intel
®
H81
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module)
SATA6G_1 SATA6G_2 SATA3G_1 SATA3G_2
AUDIO
KBMS
LAN_USB34
USB3_12
USB56
17.5cm(6.9in)
DVI_VGA
HDMI
TPM
2 41 533
2
8
10
1213
14
1516
6
7
9
11
H81M Series motherboards include H81M-A and H81M-E models. Package contents vary
between models. The H81M-E model does not include an HDMI port and a TPM connector.
The layout illustrations in this user guide are for H81M-A only.
