ASUS H81M Series
1-7
1.4 System memory
1.4.1 Overview
This motherboard comes with two Double Data Rate 3 (DDR3) Dual Inline Memory Module
(DIMM) sockets. A DDR3 module is notched differently from a DDR or DDR2 module. DO
NOT install a DDR or DDR2 memory module to the DDR3 slot.
Channel Sockets
Channel A DIMM_A1
Channel B DIMM_B1
H81M-A
H81M-A 240-pin DDR3 DIMM sockets
DIMM_A1 DIMM_B1
1.4.2 Memory congurations
You may install 1GB, 2GB, 4GB, and 8GB unbuffered non-ECC DDR3 DIMMs into the DIMM
sockets.
A
B
B
A

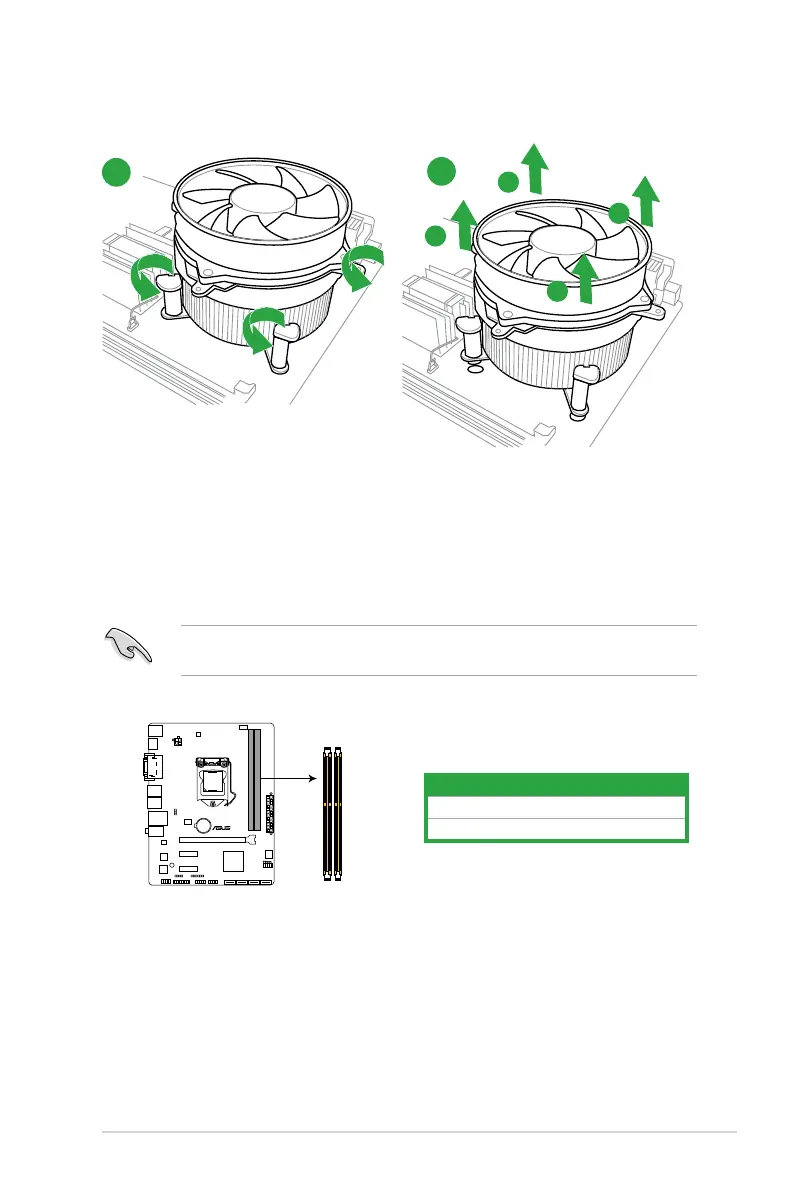

To uninstall the CPU heatsink and fan assembly
2
1
According to Intel
®
CPU spec, DIMM voltage below 1.65V is recommended to protect the
CPU.
