ASUS K8V motherboard 1-23

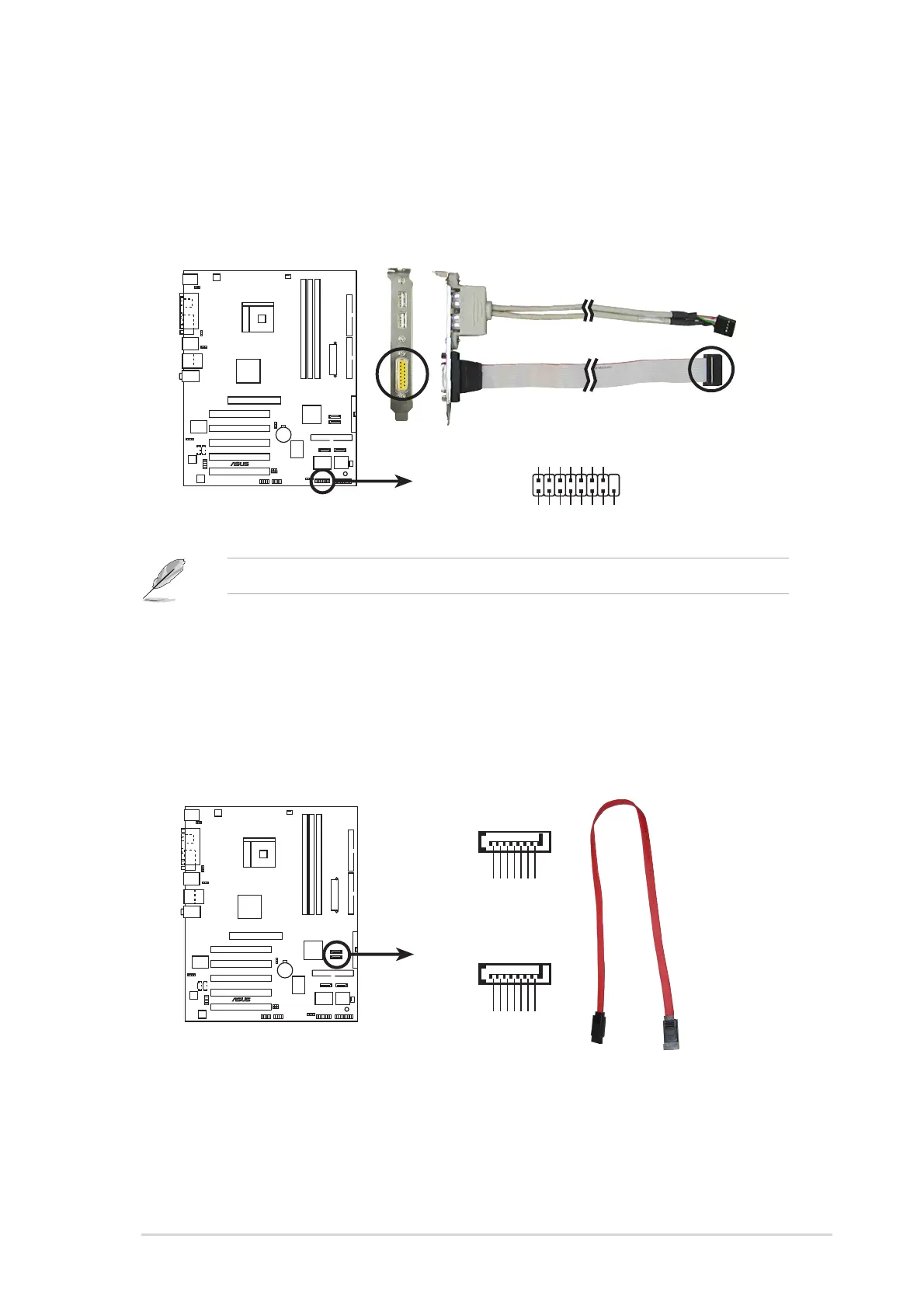

9. GAME/MIDI connector (16-1 pin GAME)
This connector supports a GAME/MIDI module. If a GAME/MIDI module is
available, connect the GAME/MIDI cable to this connector. The GAME/MIDI
port on the module connects a joystick or a game pad for playing games, and
MIDI devices for playing or editing audio files.
The GAME/MIDI module is purchased separately.
10. Serial ATA connectors (7-pin SATA1, SATA2)
These next generation connectors support the thin Serial ATA cables for
primary internal storage devices. The current Serial ATA interface allows up to
150 MB/s data transfer rate, faster than the standard parallel ATA with 133MB/s
(Ultra ATA/133).
K8V
®
K8V Game Connector
GAME
+5V +5V
J2B1 J2CX MIDI_OUT J2CY J2B2 MIDI_IN
J1B1
J1CX
GND GND
J1CY
J1B2
+5V
K8V
®
K8V SATA Connectors
SATA2
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
SATA1
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXP1
RSATA_RXN1
GND
