Getting Started 3

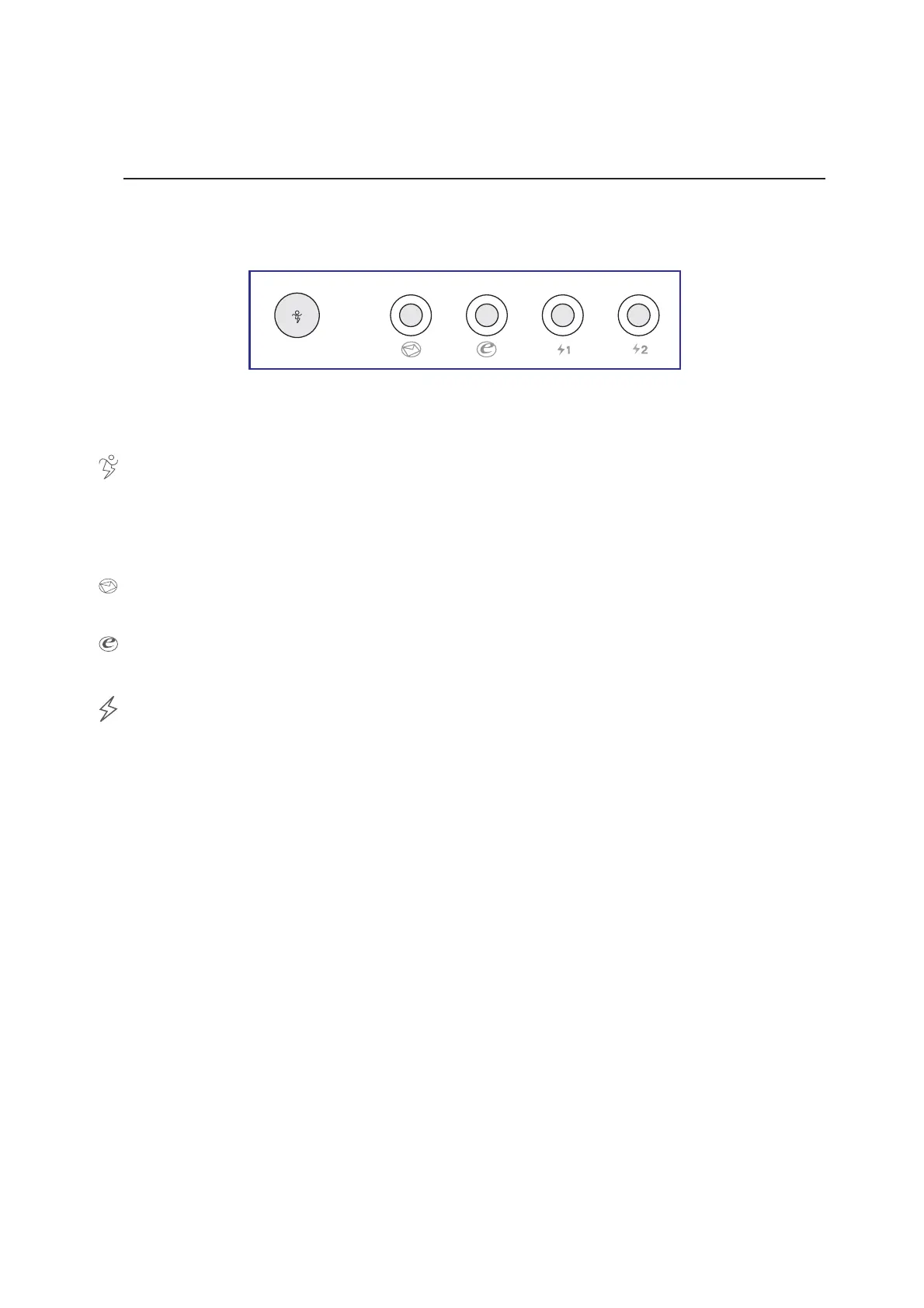

Instant Launch Keys
Power Gear Key
The Power Gear button toggles power savings ON or OFF. When power savings is activated, CPU
speed and LCD brightness will be decreased. Power Gear will decrease power consumption even more
if used together with Intel SpeedStep. Power Gear works only in battery mode and Intel SpeedStep will
work in battery or AC mode but requires manual configuration to work in AC mode.
Email Launch Key
Pressing this button will launch your Email application while Windows is running.
Internet Launch Key
Pressing this button will launch your Internet browser application while Windows is running.
Programmable Launch Keys (1 & 2)
Pressing this button will launch your programmed software application while Windows is running.
Instant Launch Keys and Status Indicators

Asus M2N Specifications

General

ECC	Yes
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
Maximum number of SMP processors	1
USB 2.0 connectors	3
Special features	Q-FAN2 Q-Connector ASUS CrashFree BIOS3 ASUS EZ Flash2 ASUS Fanless Design ASUS MyLogo
Manageability features	WOL PME, WOR PME, Chasis Intrusion, PXE
Controller interface type	Ultra DMA 133/100/66/33
Controller 2nd interface type	Serial ATA II
PS/2 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio output channels	5.1 channels
Motherboard form factor	ATX
Bundled software	Drivers ASUS PC Probe II ASUS Update NVIDIA MediaShield RAID Anti-virus (OEM)
Networking features	Gigabit Ethernet
BIOS memory size	32 Mbit
RAID levels	0, 1, 0+1

Weight and Dimensions

Depth	206 mm
Width	350 mm
