2-4 Chapter 2: Hardware information

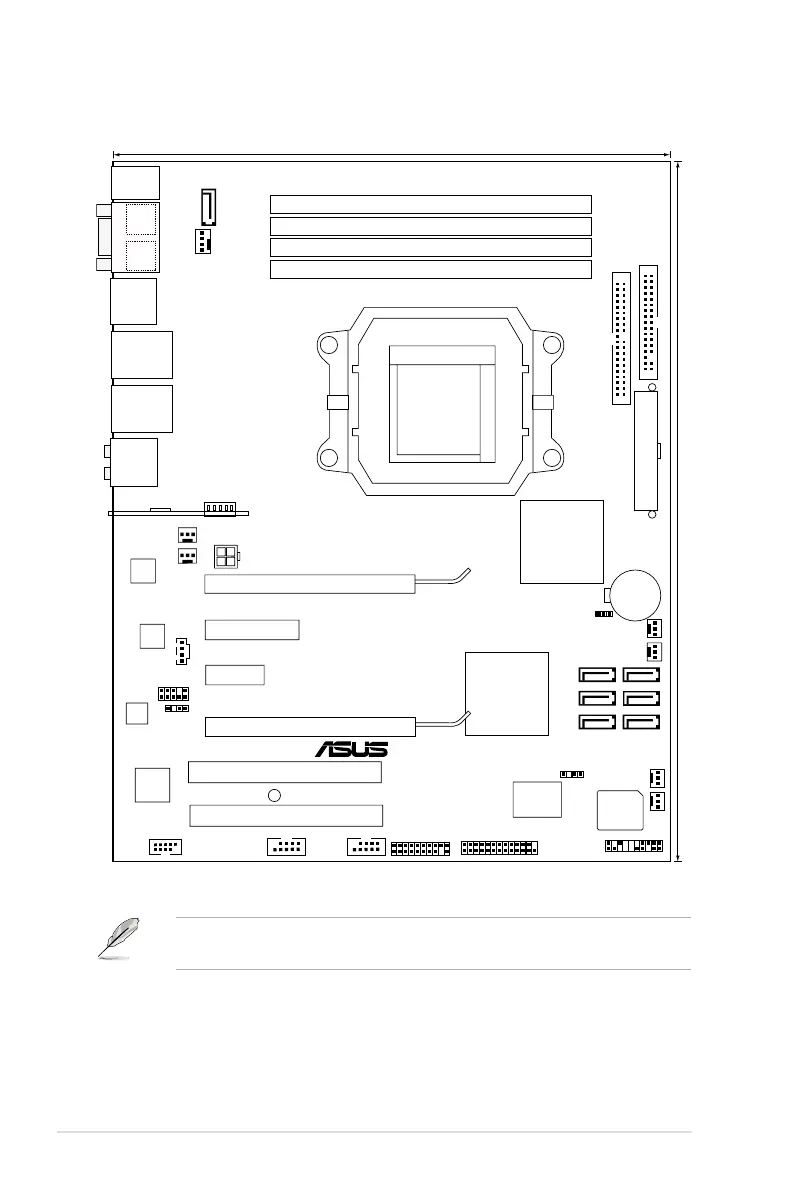

2.2.4 Motherboard layout
M2N32-SLI PREMIUM
24.5cm (9.6in)
30.5cm (12in)
FLOPPY
PRI_IDE
PANEL
TPM
LPT
SATA1
Super
I/O
8Mb
BIOS
CHASSIS
CLRTC
SATA3
SATA5
SATA_RAID2
PWR_FAN
CHIP_FAN
CHA_FAN3
CHA_FAN4
CR2032 3V
Lithium Cell
CMOS Power
SATA2
SATA4
SATA6
USB56USB78
SB_PWR
IE1394_1
AAFP
SPDIF_OUT
CD
EATXPWR
CPU_FAN
SPDIF_O1SPDIF_O2
ESATA_1394
PS2/2KBMS
T:Mouse
B:Keyboard
CHA_FAN1
ATX12V
USB910_ASAP
Marvell
88E1116
Marvell
88E1116
TSB43AB22A
AD1988B
PCIEX1_1
PCI1
PCI2
PCIEX16_2
PCIEX16_1
PCIEX4_1
CHA_FAN2
LAN1_USB12
COM1
LAN2_USB34
AUDIO
DDR2 DIMM_B2 (64 bit, 240-pin module)
DDR2 DIMM_A2 (64 bit, 240-pin module)
DDR2 DIMM_B1 (64 bit, 240-pin module)
DDR2 DIMM_A1 (64 bit, 240-pin module)
SOCKET AM2
nVidia
C51XE
®
nVidia
MCP55PXE
®
Refer to 2.7 Connectors for more information about rear panel connectors and
internal connectors.
