ASUS M2N32-SLI Premium Vista Edition 2-23
2.7 Connectors

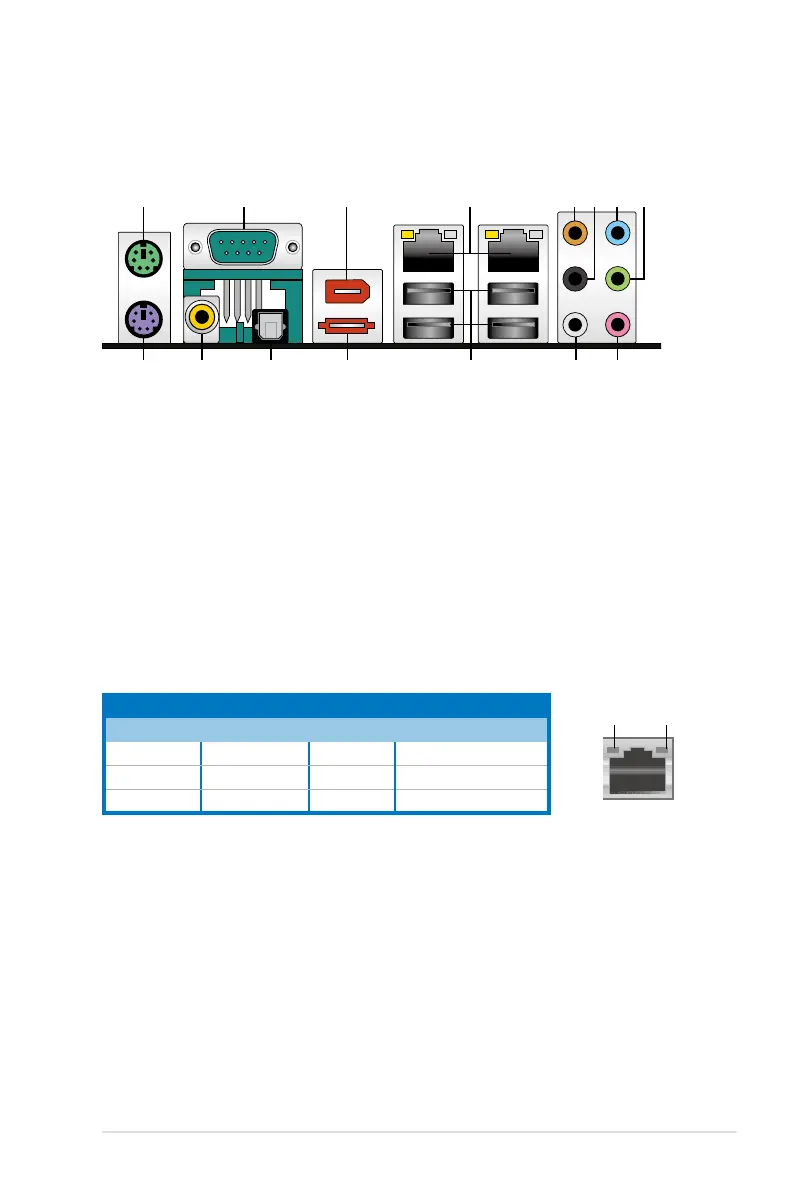

2.7.1 Rear panel connectors
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Serial (COM) port.
This 9-pin COM1 port is for pointing devices and other
serial devices.
3. IEEE 1394a port.
This 6-pin IEEE 1394a port provides high-speed
connectivity for audio/video devices, storage peripherals, PCs, or portable
devices.
4. LAN 1/2 (RJ-45) port.
Supported by Marvell
®
88E1116 Gigabit LAN
controller, this port allows Gigabit connection to a Local Area Network
(LAN) through a network hub. Refer to the table below for the LAN port LED
indications.
LAN port LED indications
5. Center/Subwoofer port (orange). This port connects the center/subwoofer
speakers.
6. Rear Speaker Out port (black).
This port connects the rear speakers in a
4-channel, 6-channel, or 8-channel audio conguration.
7. Line In port (light blue).
This port connects the tape, CD, DVD player, or
other audio sources.
8. Line Out port (lime).
This port connects a headphone or a speaker. In
4-channel, 6-channel, and 8-channel conguration, the function of this port
becomes Front Speaker Out.
SPEED
LED
ACT/LINK
LED
LAN port
Activity/Link Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
