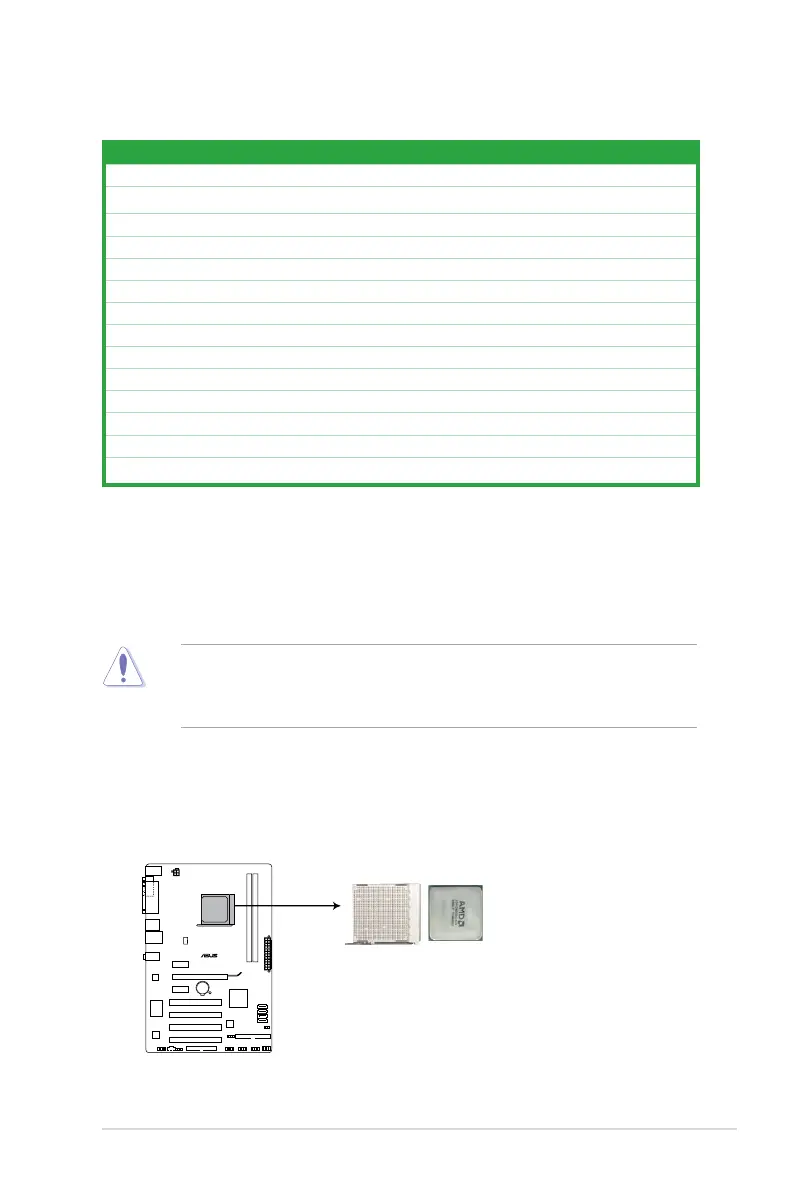

1.5.4 Layout contents
Connectors/Jumpers/Slots Page
1. ATX power connectors (24-pin EATXPWR, 8-pin ATX12V) 1-23
2. DDR2 DIMM slots
1-10
3. CPU fan connector (4-pin CPU_FAN)
1-8
4. MCP68PVNT Serial ATA connectors [red] (7-pin SATA1-4)
1-21
5. Clear RTC RAM (3-pin CLRTC)
1-17
6. IDE connector (40-1 pin PRI_EIDE)
1-20
7. System panel connector (10-1 pin PANEL)
1-24
8. USB connectors (10-1 pin USB56, USB78, USB910)
1-22
9. SPEAKER connector (4-pin)
1-19
10. Floppy disk drive connector (34-1 pin FLOPPY) 1-19
11. Digital audio connector (4-1 pin SPDIF_OUT) 1-24
12. Optical drive audio connector (4-pin CD)
1-20
13. Front panel audio connector (10-1 pin AAFP)
1-22
14. AMD CPU 940-pin Socket
1-7
1.6 Central Processing Unit (CPU)
The motherboard comes with an AM2+ / AM2 socket designed for AMD
®
AM2+ / AM2
Phenom™ FX / Phenom / Athlon™ / Sempron™ processor.
The AM2/AM2+ socket has a different pinout from the 940-pin socket designed for the
AMD Opteron™ processor. Ensure that you use a CPU that is designed for the AM2/AM2+
socket. The CPU ts in only one correct orientation. DO NOT force the CPU into the socket
to prevent bending the connectors on the socket and damaging the CPU!
1.6.1 Installing the CPU
To install a CPU:
1. Locate the CPU socket on the motherboard.
M2N68 SE
M2N68 SE CPU socket 940
Chapter 1: Product introduction 1-7
