Asus M3N78-VM User Manual

1-8 Chapter 1: Product introduction

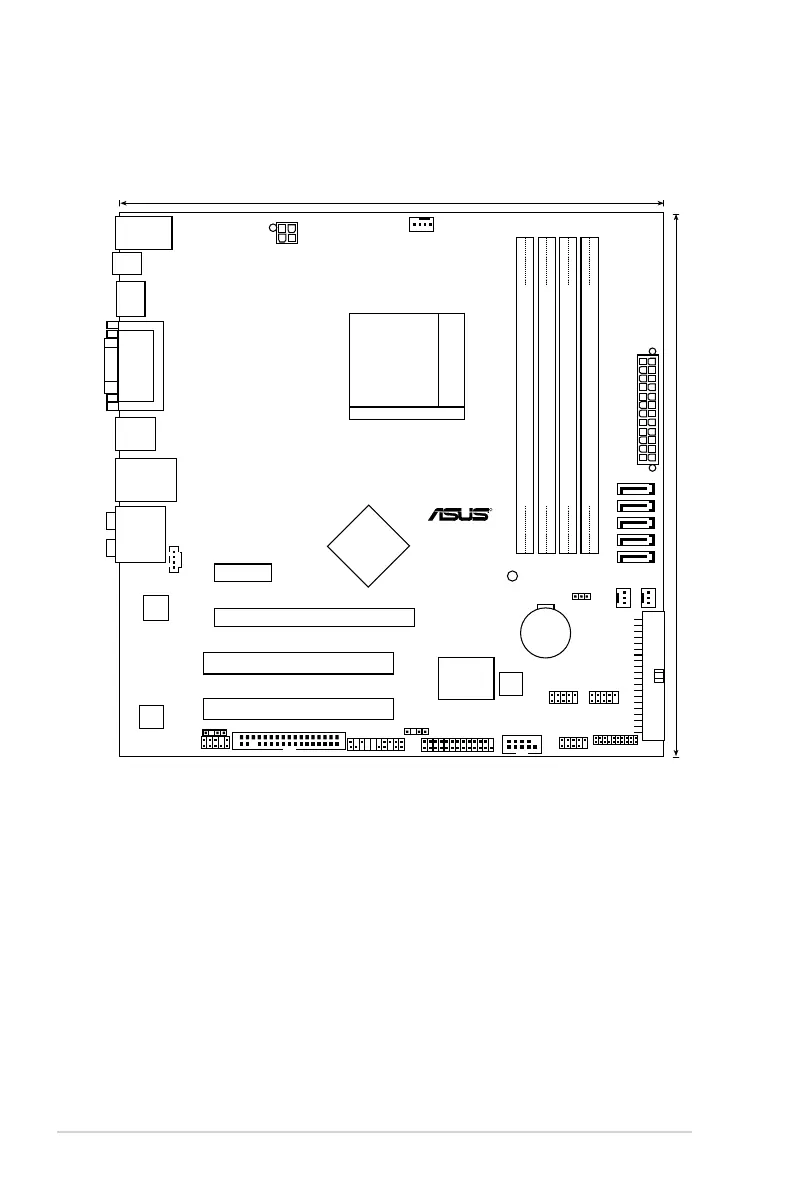

1.5.1 Motherboard layout
1.5 Motherboard overview
24.4cm (9.6in
24.4cm (9.6in)
)
Super I/O
SATA5
SATA4
SATA3
SATA2
SATA1
Socket AM2+
CPU_FAN
E
A
TXPWR
PRI_IDE
COM1
PANEL
USB1112USB78
USB910
AAFP
SB_PWR
8Mb
BIOS
Nvidia
MCP78S
DDR2 DIMM_A1 (64 bit,240-pin module) DDR2 DIMM_B1 (64 bit,240-pin module) DDR2 DIMM_A2 (64 bit,240-pin module) DDR2 DIMM_B2 (64 bit,240-pin module)
CR2032 3V
Lithium Cell
CMOS Power
PCI2
PCI1
PCIEX16
PCIEX1_1
VT1708B
Realtek
8211CL-GR
CLRTC
R
SPDIF_OUT
M3N78-VM
LPT
KB_USB56
VGA_DVI
USB34_ESATA
LAN1_USB12
AUDIO
HDMI
SPDIF_O2
CHA_FAN PWR_FAN
FLOPP
Y
CD
TPM
CHASSIS
ATX12V

Asus M3N78-VM Specifications

General

Non-ECC	Yes
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
USB 2.0 connectors	6
Number of SATA connectors	5
PS/2 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1708B
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
BIOS memory size	64 Mbit
RAID levels	0, 1, 0+1, 5, JBOD

Weight and Dimensions

Width	244 mm
