ASUS M3N78-VM 1-27

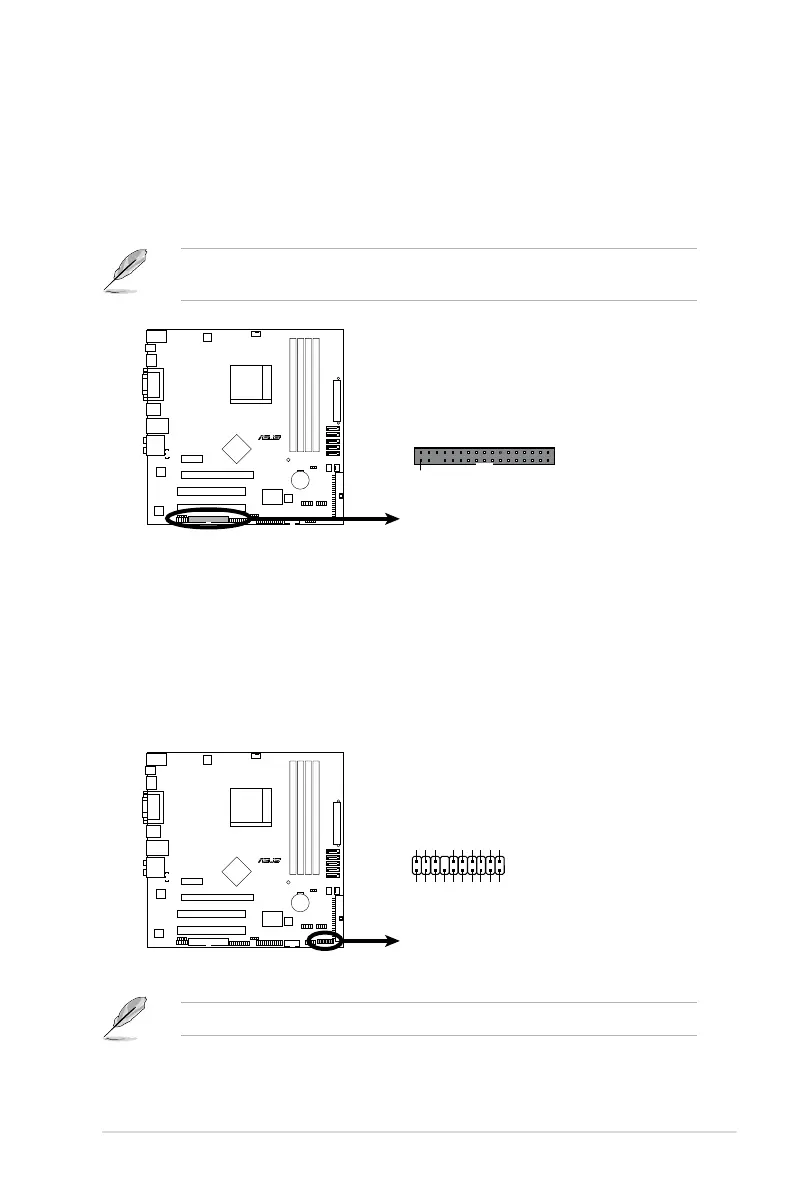

1.10.2 Internal connectors
1. Floppy disk drive connector (34-1 pin FLOPPY)
This connector is for the provided oppy disk drive (FDD) signal cable. Insert
one end of the cable to this connector, then connect the other end to the
signal connector at the back of the oppy disk drive.
Pin 5 on the connector is removed to prevent incorrect cable connection when
using an FDD cable with a covered Pin 5.
2. TPM connector (20-1 pin TPM)
This connector supports a Trusted Platform Module (TPM) system, which
can securely store keys, digital certicates, passwords, and data. A TPM
system also helps enhance network security, protects digital identities, and
ensures platform integrity.
The TPM model is purchased separately!
R
M3N78-VM
M3N78-VM Floppy Disk Drive Connector
NOTE:
Orient the red markings on
the floppy ribbon cable to PIN 1.
PIN1
FLOPPY
R
M3N78-VM
M3N78-VM TPM Connector
TPM
S_SMBCLIK_MAIN
S_SMBCLK_MAIN
GND
S_PLTRST#
F_FRAME#
C_PCICLK_TPM
1
GND
F_LAD1 F_LAD2
F_LAD0
+3V +3V
F_LAD3
GND
F_SERIRQ#
GND
+3VSB
S_PWRDWN#

Asus M3N78-VM Specifications

General

Non-ECC	Yes
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
USB 2.0 connectors	6
Number of SATA connectors	5
PS/2 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1708B
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
BIOS memory size	64 Mbit
RAID levels	0, 1, 0+1, 5, JBOD

Weight and Dimensions

Width	244 mm
