Asus M3N78-VM User Manual

1-28 Chapter 1: Product introduction

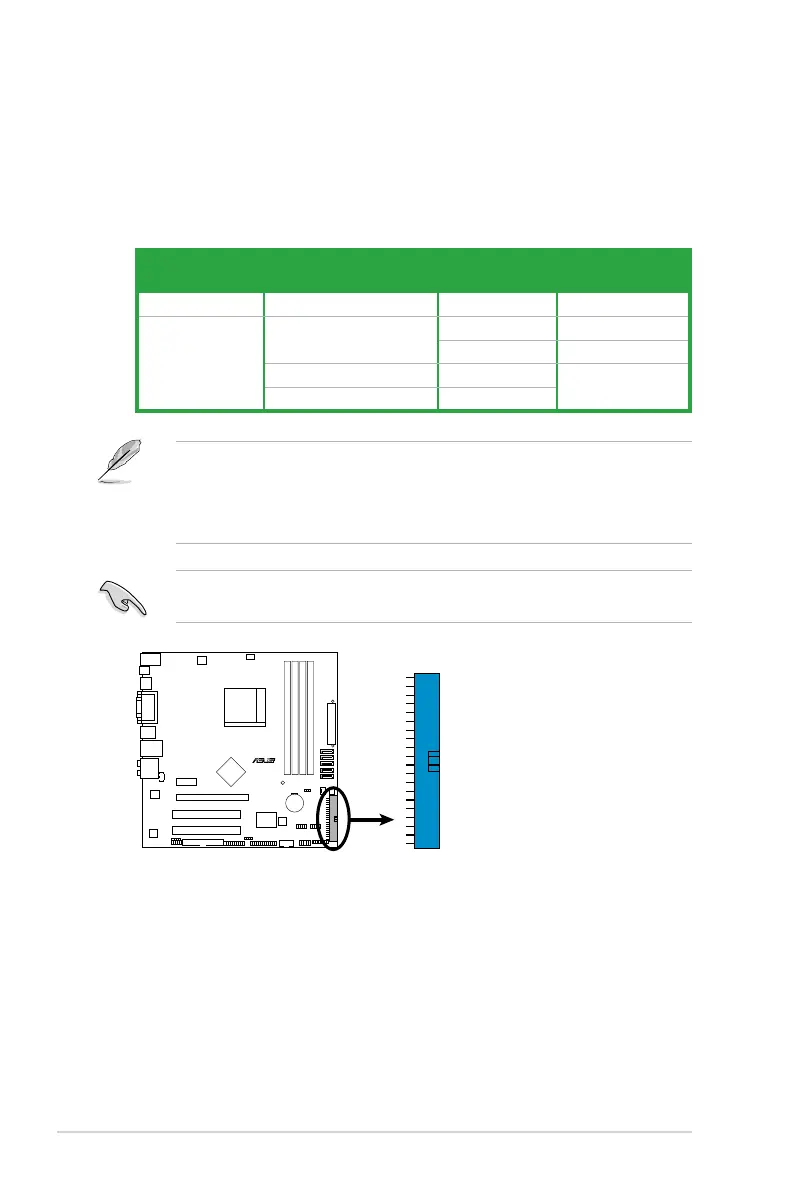

3. IDE connectors (40-1 pin PRI_IDE)
The onboard IDE connector is for an Ultra DMA 133/100/66 signal cable.
There are three connectors on each Ultra DMA 133/100/66 signal cable:
blue, black, and gray. Connect the blue connector to the motherboard’s IDE
connector, then select one of the following modes to congure your device(s).
• Pin 20 on the IDE connector is removed to match the covered hole on the
Ultra DMA cable connector. This prevents incorrect insertion when you
connect the IDE cable.
• Use the 80-conductor IDE cable for Ultra DMA 133/100/66 IDE devices.
If any device jumper is set as “Cable-Select,” ensure that all other device
jumpers have the same setting.
Drive jumper setting Mode of
device(s)
Cable connector
Single device Cable-Select or Master - Black
Two devices Cable-Select Master
Black
Slave Gray
Master Master Black or gray
Slave Slave
R
M3N78-VM
M3N78-VM IDE Connector
PRI_IDE

Asus M3N78-VM Specifications

General

Non-ECC	Yes
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
USB 2.0 connectors	6
Number of SATA connectors	5
PS/2 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1708B
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
BIOS memory size	64 Mbit
RAID levels	0, 1, 0+1, 5, JBOD

Weight and Dimensions

Width	244 mm
