Asus M3N78-VM User Manual

1-24 Chapter 1: Product introduction
1.10 Connectors

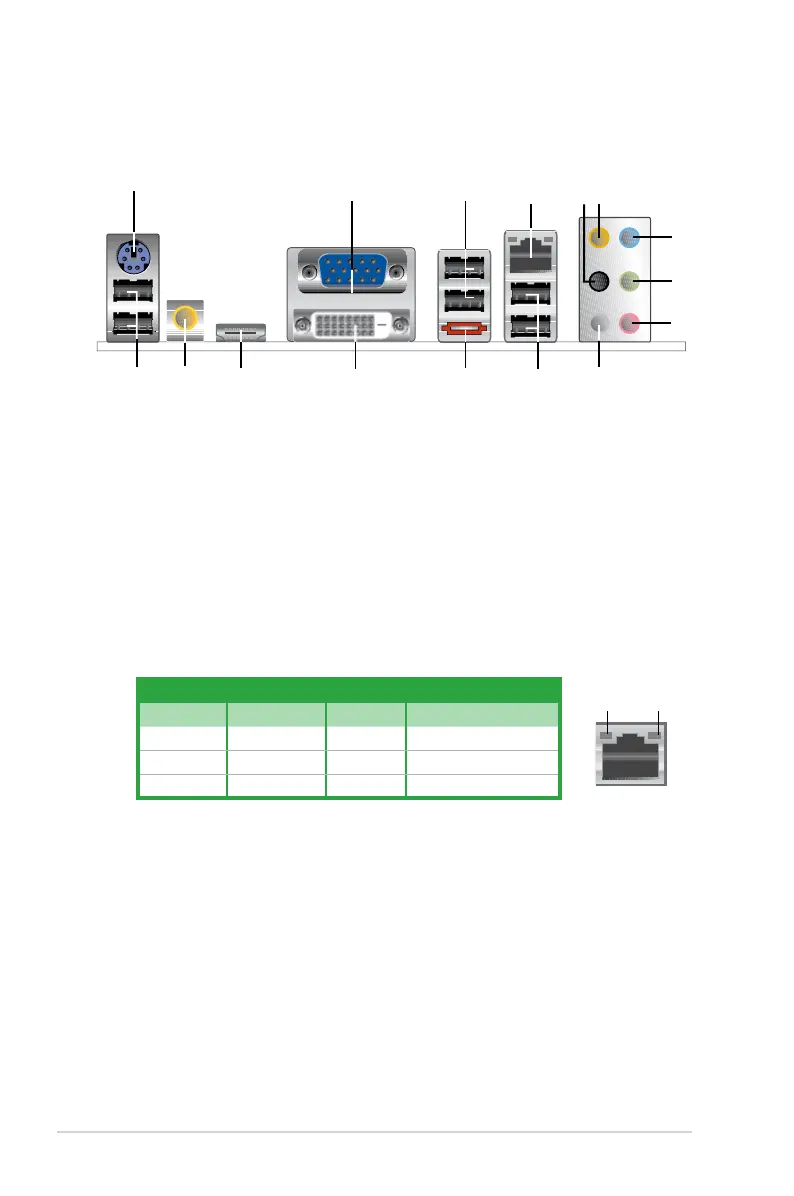

1.10.1 Rear panel connectors
5. Rear Speaker Out port (black).
This port connects the rear speakers in a
4-channel, 6-channel, or 8-channel audio conguration..
6. Center / Subwoofer port (orange).
This port connects the center /
subwoofer speakers.
7. Line In port (light blue)
. This port connects the tape, CD, DVD player, or
other audio sources.
8. Line Out port (lime)
. This port connects a headphone or a speaker. In
4-channel, 6-channel, and 8-channel conguration, the function of this port
becomes Front Speaker Out.
9. Microphone port (pink).
This port connects a microphone.
10. Side Speaker Out port (gray)
. This port connects the side speakers in an
8-channel audio conguration.
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
LAN port LED indications
SPEED
LED
ACT/LINK
LED
LAN port
1. PS/2 keyboard/mouse combo port (purple). This port is for a PS/2
keyboard or mouse.
2. Video Graphics Adapter (VGA) port
. This 15-pin port is for a VGA monitor
or other VGA-compatible devices.
3. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports
are available for connecting USB 2.0 devices.
4. LAN (RJ-45) port. Supported by Marvell Gigabit LAN controller, this port
allows Gigabit connection to a Local Area Network (LAN) through a network
hub. Refer to the table below for the LAN port LED indications.
1
43
2
11131415
5
7
6
8
9
10
16
12

Asus M3N78-VM Specifications

General

Non-ECC	Yes
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
USB 2.0 connectors	6
Number of SATA connectors	5
PS/2 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1708B
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
BIOS memory size	64 Mbit
RAID levels	0, 1, 0+1, 5, JBOD

Weight and Dimensions

Width	244 mm
