• For detailed instructions on RAID congurations, refer to the RAID manual in the
support DVD.
• If you intend to create a Serial ATA RAID set using these connectors, set the
Onchip
SATA Type item in the BIOS to [RAID].

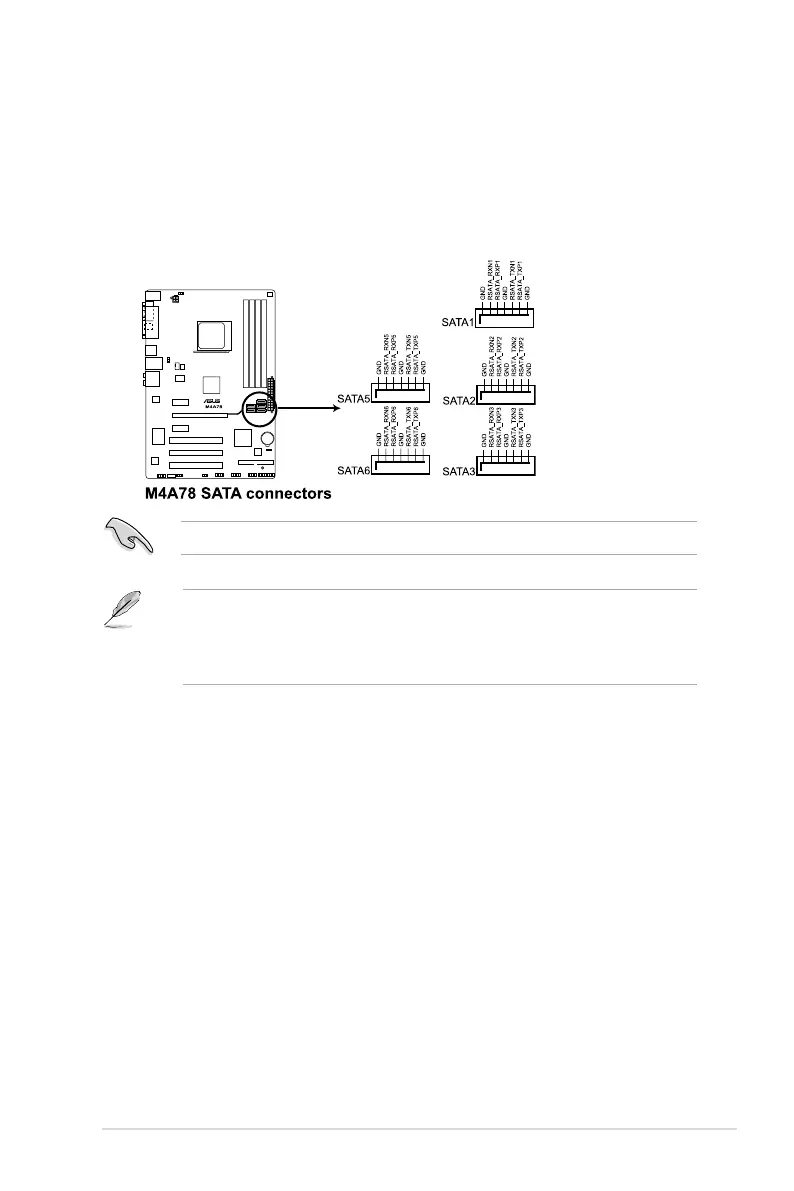

3. Serial ATA connectors (7-pin SATA1, SATA2, SATA3, SATA5, SATA6)
These connectors are for the Serial ATA signal cables for Serial ATA 3Gb/s hard disk
and optical disk drives. The Serial ATA 3Gb/s is backward compatible with Serial ATA
1.5Gb/s specication. The data transfer rate of the Serial ATA 3Gb/s is faster than the
standard parallel ATA with 133 MB/s (Ultra DMA133). If you install Serial ATA hard disk
drives, you can create a RAID 0, RAID 1, RAID 0+1, and JBOD (only for Windows
®
Vista OS) conguration through the onboard SB700 chipset.
Install the Windows
®
XP Service Pack 1 before using Serial ATA.
